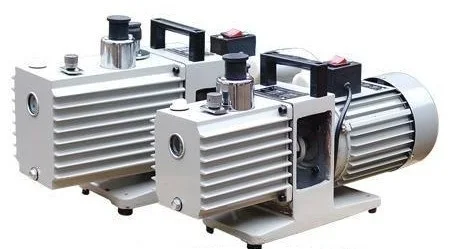

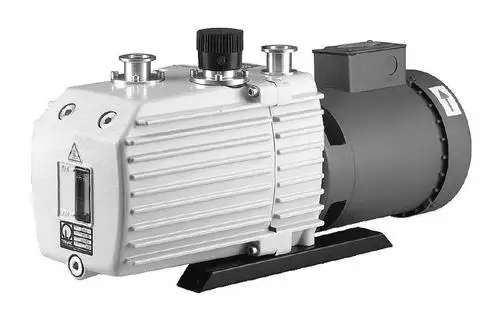

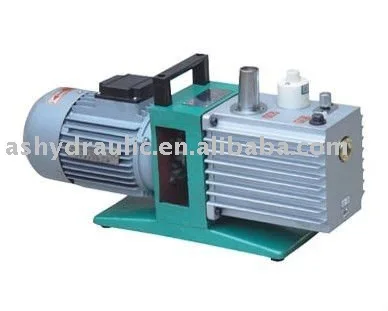

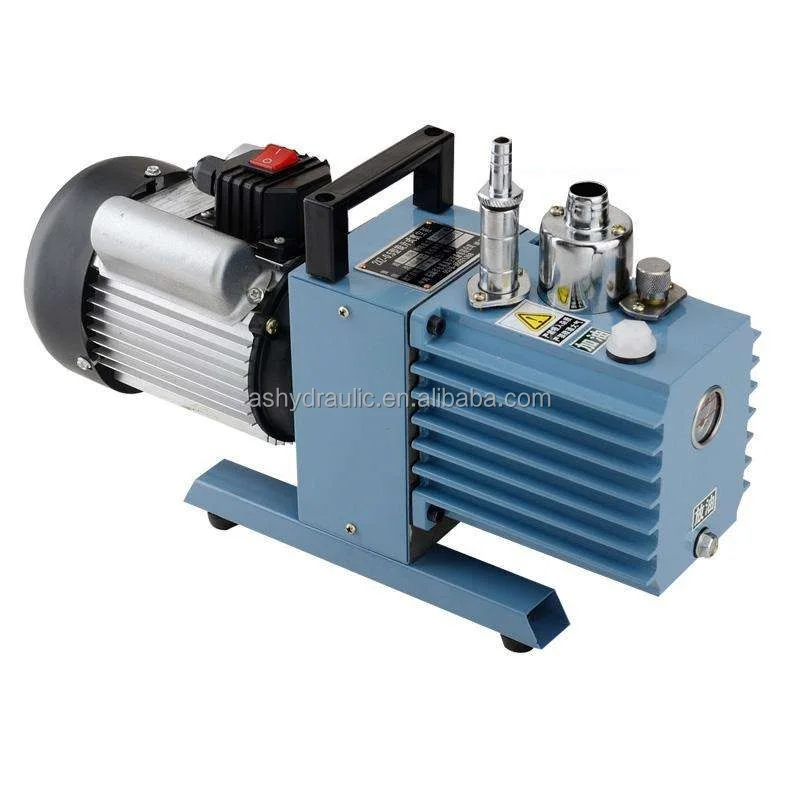

Hot selling 2XZ rotary vane vacuum pump

Product Overview

Description

Hot seling 2XZ rotary vanevacuum pump
1. Small dimensions, low noise
2. Double-stage direct coupling structure
3. Very competitive price

4. 1 year of warranty

5. Precise equipment, made of ferrous metal and aluminium alloy

6. Operation performance consists of high-pressure stage and low-pressure stage

7. Its suction port connects vacuum equipment and helps to intake or drain the gas in the container during operation

8. Coupled with motor, which is high-speed and small and compact and convenient for flexible operation

9. Widely applicable in labs, pharmaceutical industry, food packing and electronic industry etc.

10. Short delivery time





Technical Specifications:



2XZ rotary vane vacuum pump series
Model	Suction speed(L/S)	Max. pressure(Pa)	Motor power(kw)	Inner dia. of suction port(mm)	Weight(kg)	Overall size(mm)
2XZ-0.25	0.25	6.67×10-1	0.12/220V	Φ10	15	400×125×224
2XZ-0.5	0.5	6×10-2	0.18/220V380V	Φ16	18	445×125×256
2XZ-1	1	6×10-2	0.25/220V380V	Φ16	19	445×125×256
2XZ-2	2	6×10-2	0.37/220V380V	Φ25	27	478×148×277
2XZ-4	4	6×10-2	0.55/220V380V	Φ25	30	518×148×277
2XZ-8B	8	6×10-2	1.1/380V	Φ36	70	600×230×420
2XZ-15B	15	6×10-2	2.2/380V	Φ36	90	690×230×420
