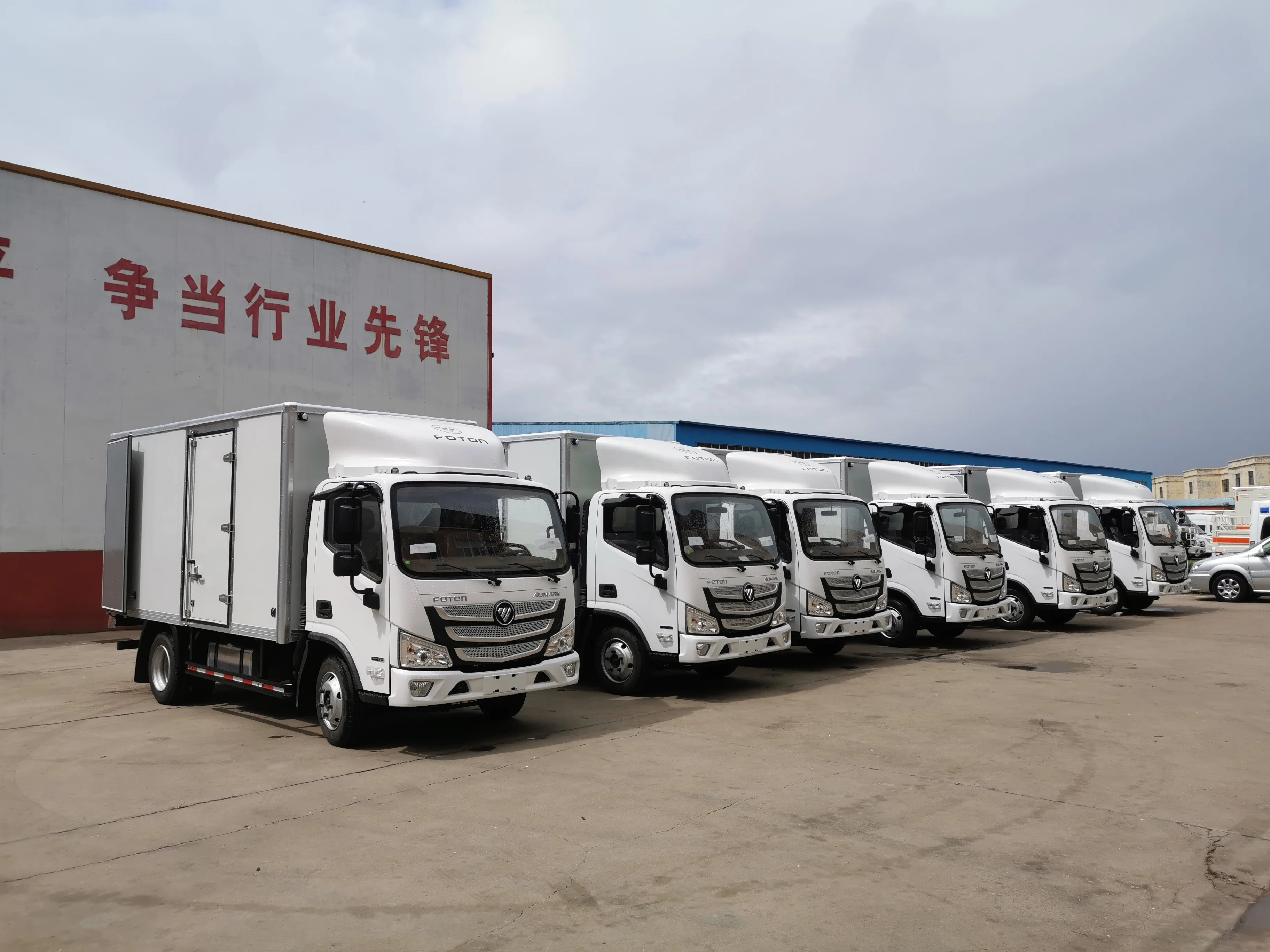

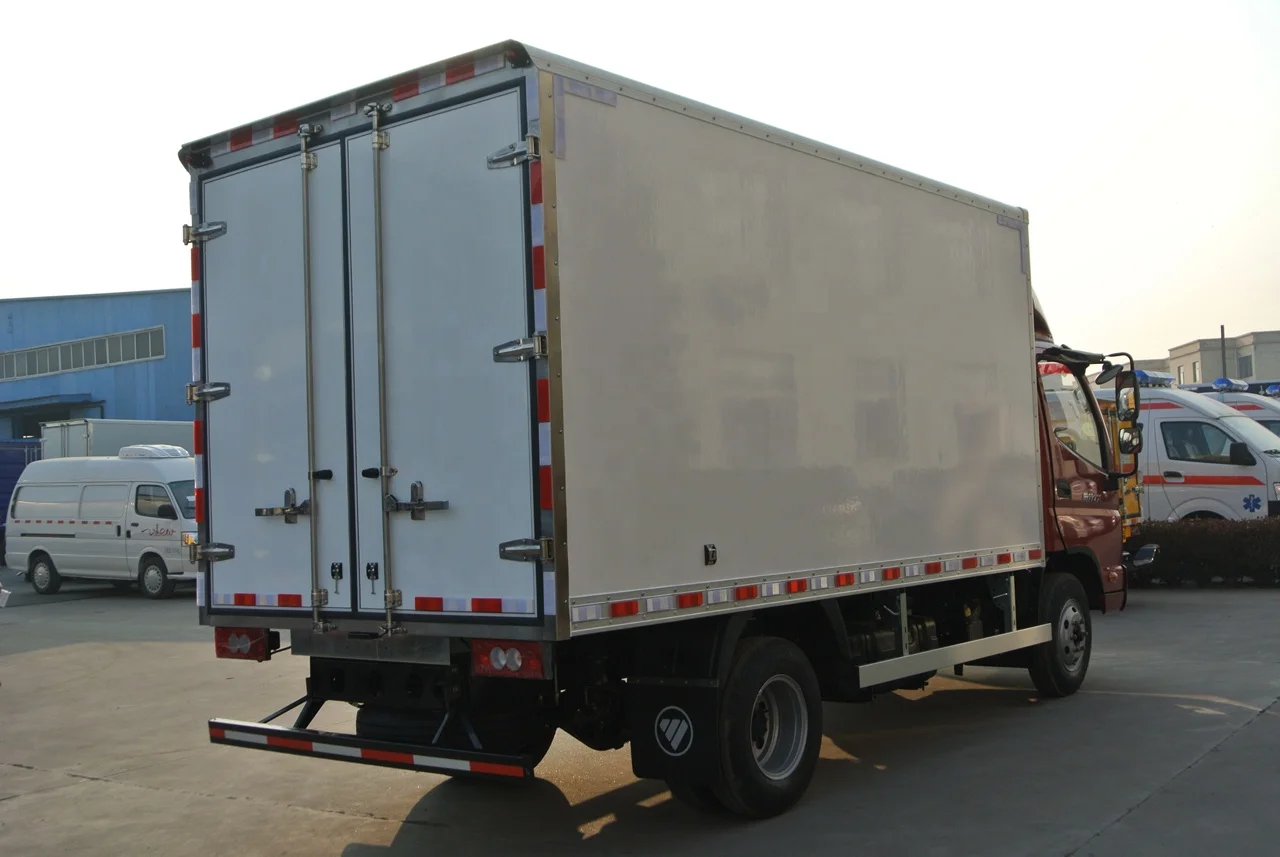

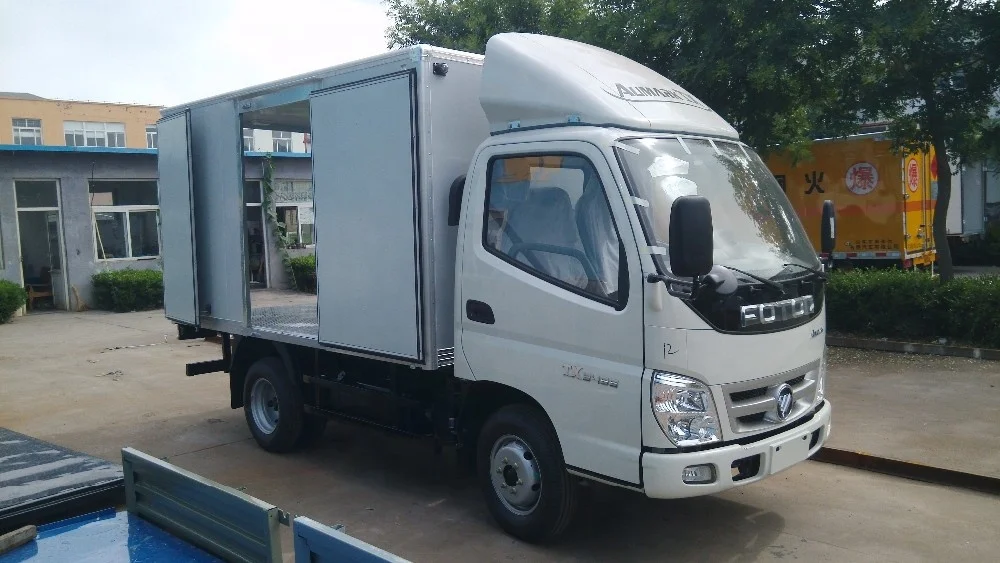

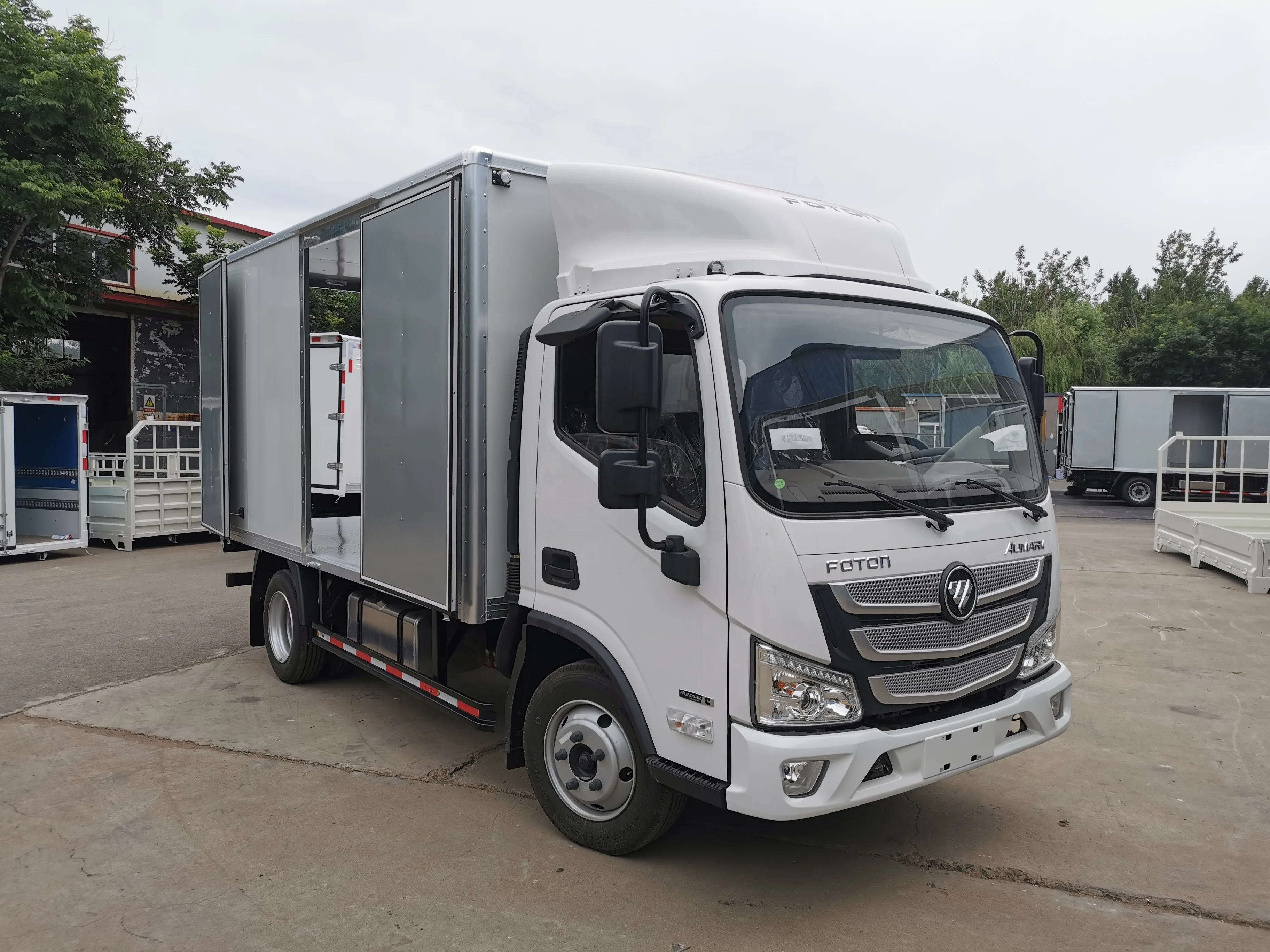

CKD Box Van Body,CKD box van truck
- Category: >>>
- Supplier: Shandong Zhengtai Xier Special Purpose Vehicle Co. Ltd.
Share on (436283549):
Product Overview
Description
| chassis | model | BJ1020V3JA2 | BJ1032V3JA3-A | ||
| category | chassis | chassis | |||
| manufacturer | BEIQI FOTON MATOR CO.,LTD | BEIQI FOTON MATOR CO.,LTD | |||
| axle | 2 | 2 | |||
| wheel base(mm) | 2300 | 2600 | |||
| wheel track(front/rear mm) | 1300/1240 | 1345/1240 | |||
| tire size | 6.00-13 | 6.00-14 | |||
| tire | 6 | 6 | |||
| engine | model | QC480ZLQ | QC480ZLQ | ||
| manufacturer | Anhui Quanchai Power Co.,Ltd | ANHUI QUANCHAI MOTOR CO., LTD | |||
| delivery capacity(ml) | 1809 | 1809 | |||
| fuel | diesel fuel | diesel fuel | |||
| rated power(Kw) | 29 | 29 | |||
| emission standard | GB18352.2-2001,GB3847-2005 | GB17691-2001 the second stage, GB3847-2006 | |||
| frame | front | type | steel plate spring | steel plate spring | |
| quantity | 5 | 7 | |||
| back | type | steel plate spring | steel plate spring | ||
| quantity | 3+2 | 5+3 | |||
| car load | dimension parameters | overall dimensions(mm) | 4450*1700*2500 | 5060×1730×2800 | |
| L*W*H | |||||
| interior cargo body dimensions(mm) | 2440*1500*1450 | 3500×1610×1700 | |||
| L*W*H | |||||
| front overhang/rear overhang(mm) | 970/1180 | 1075/1255 | |||
| quality parameters | approach angle/departure angle(°) | 22/18 | 18/20 | ||
| curb weight(Kg) | 2080 | 2400 | |||
| payload capacity(Kg) | 1400 | 2000 | |||
| max. speed(km/h) | 90 | 90 | |||
| Persons in cab (persons) | 2 | 2 | |||
| temperature | -18 | ||||
