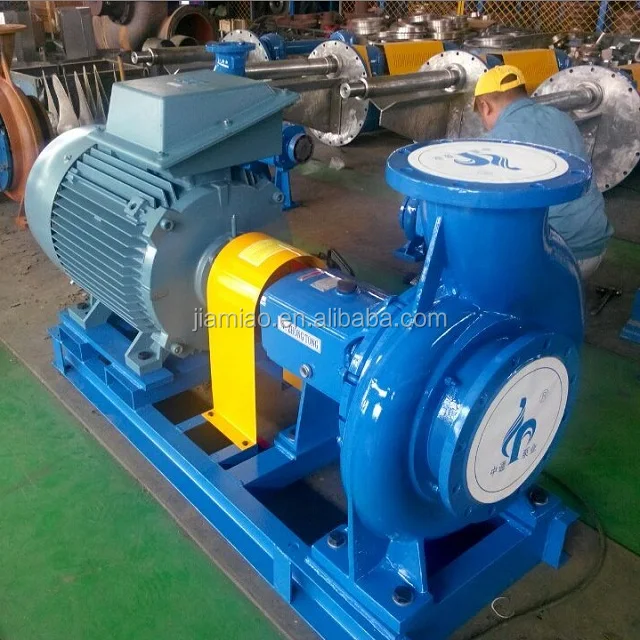

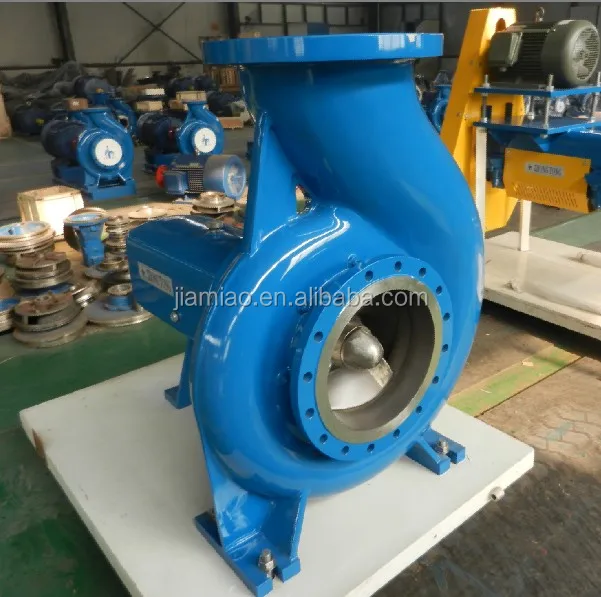

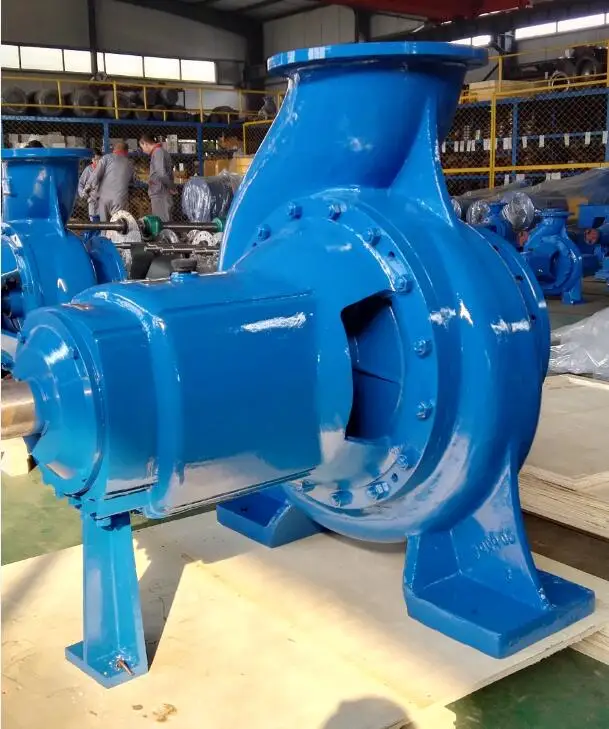

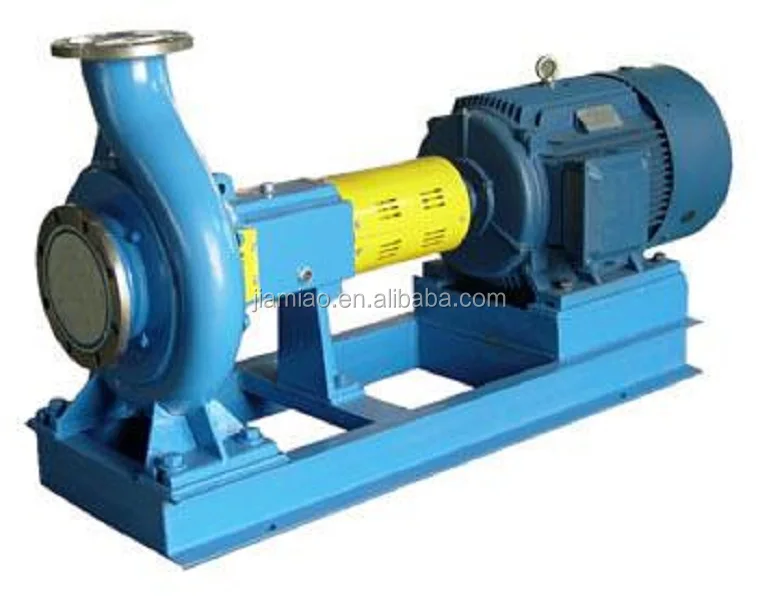

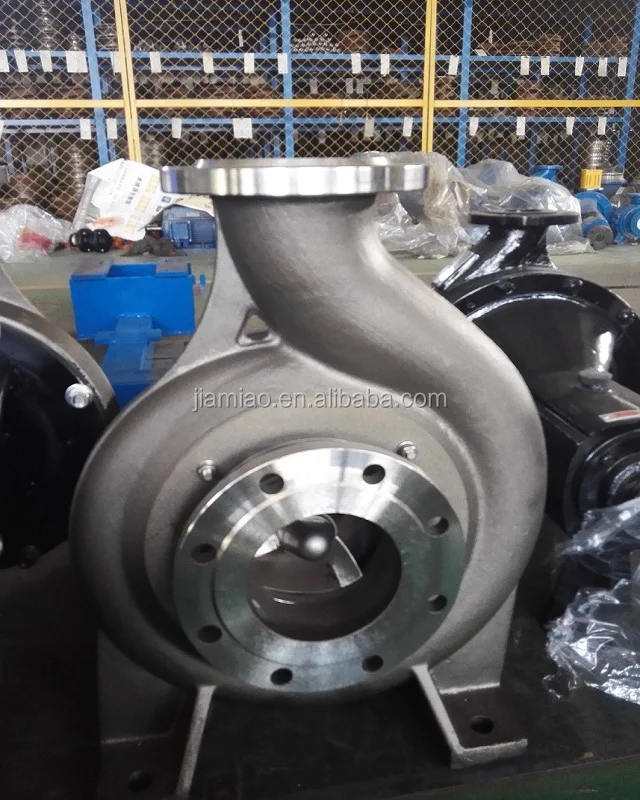

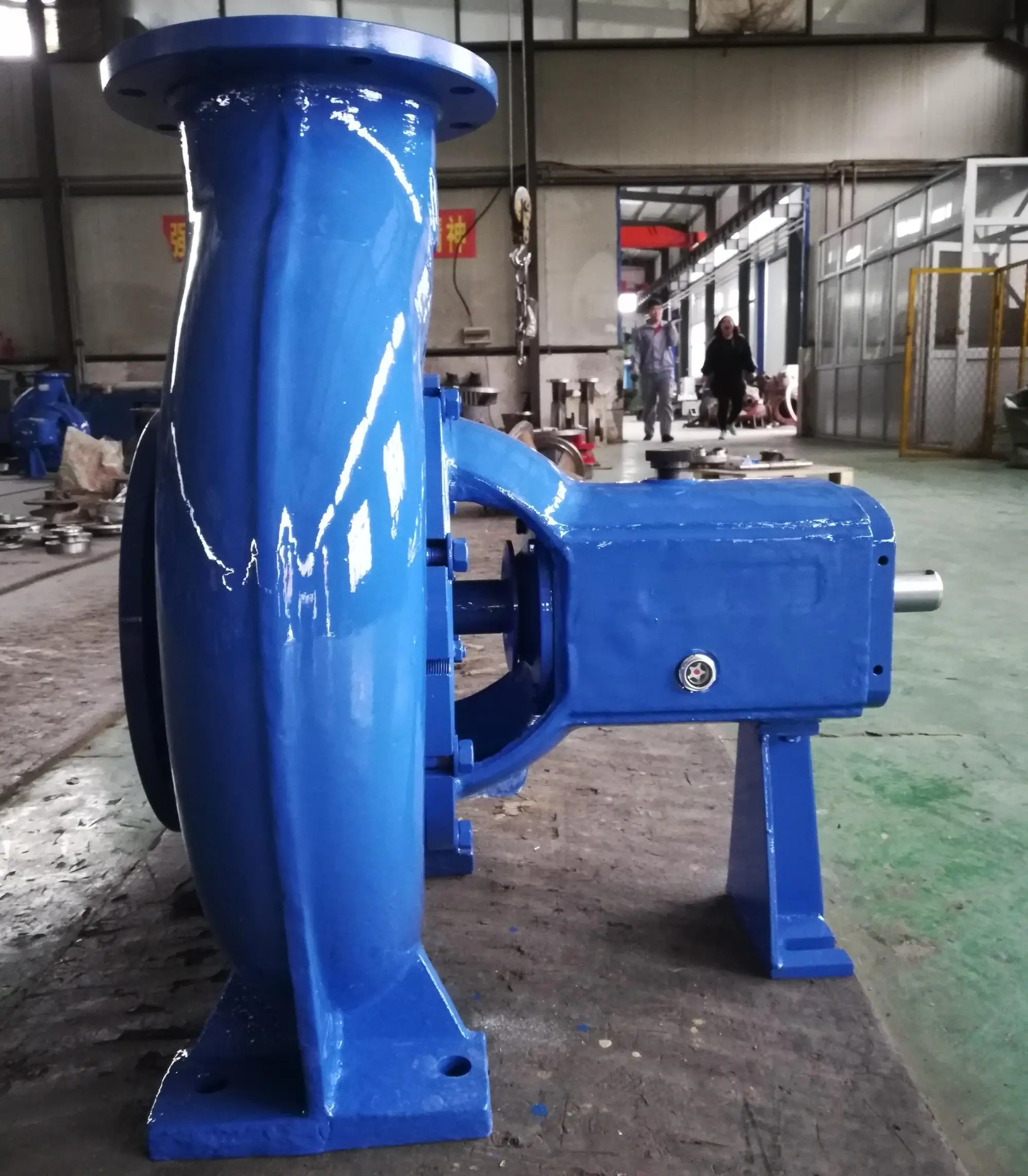

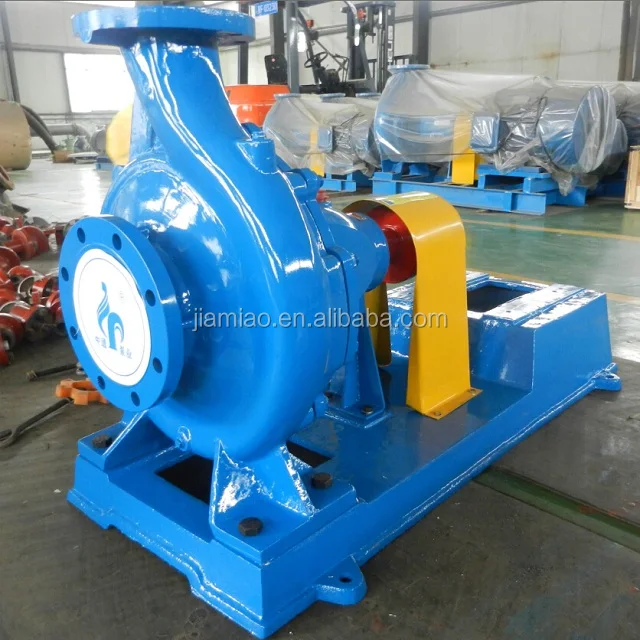

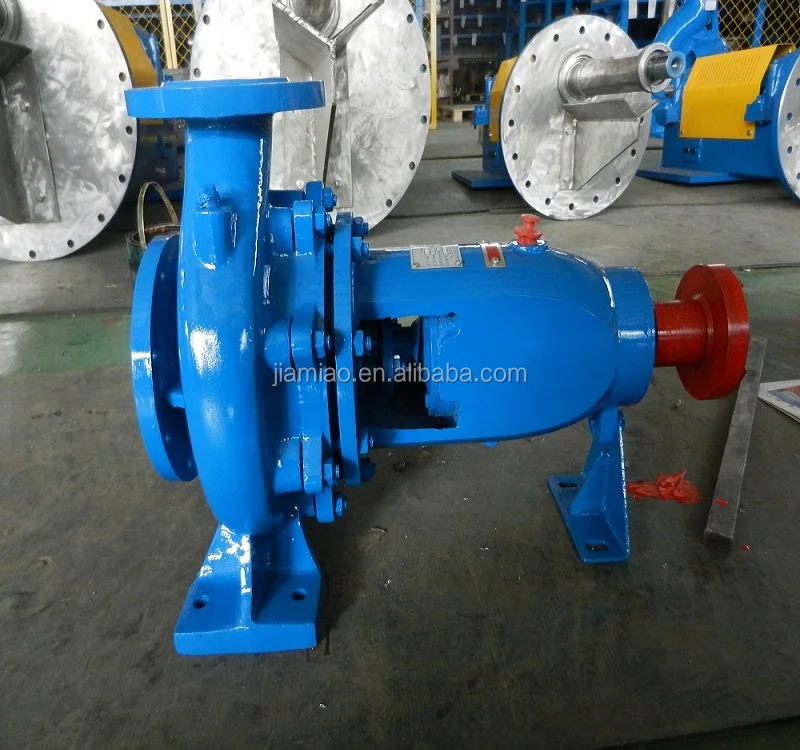

industrial used 10ph centrifugal pump

Product Overview

Description











Performance Range:



Capacity:20~3000m3h

Head range: 10~70m

Speed:1450,980,750,2900r/min





Product Descrption:



1.Totally open impeller,high efficiency,light in weight ,small axial force,and the life the driving component.

2.It is easy to maintain and the chance for blocking is very little.And it can transmit media with a certain volume of gas.

3.The impeller was precision cast.Tested with Class G6.3 dynamic balance,it can run smoothly.

Fillin seal: need a high temperature washing pipe

It is easy to maintain, and replace.



Single face mechaical seal,used for pulp below the  thickness of 4.5%.



Double face mechanical seal, used for harsh media and corrosive media. It can make sure that there is no leakage.Need the high temperature water sealing.
