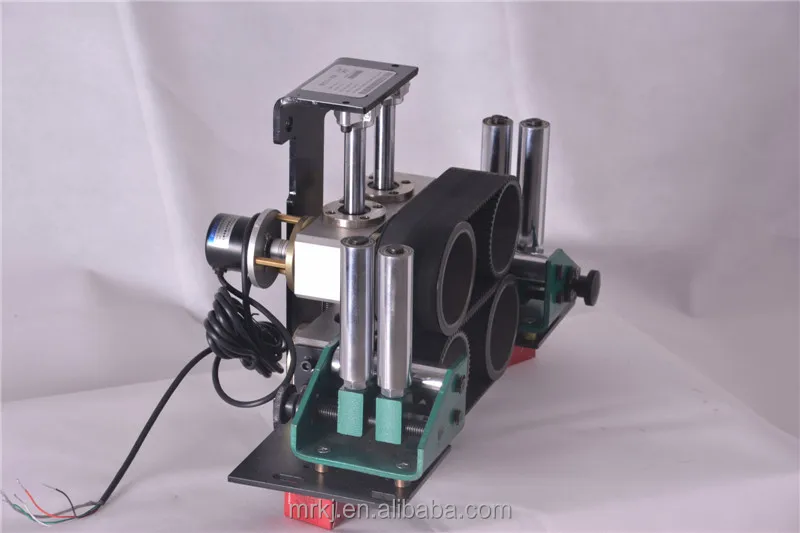

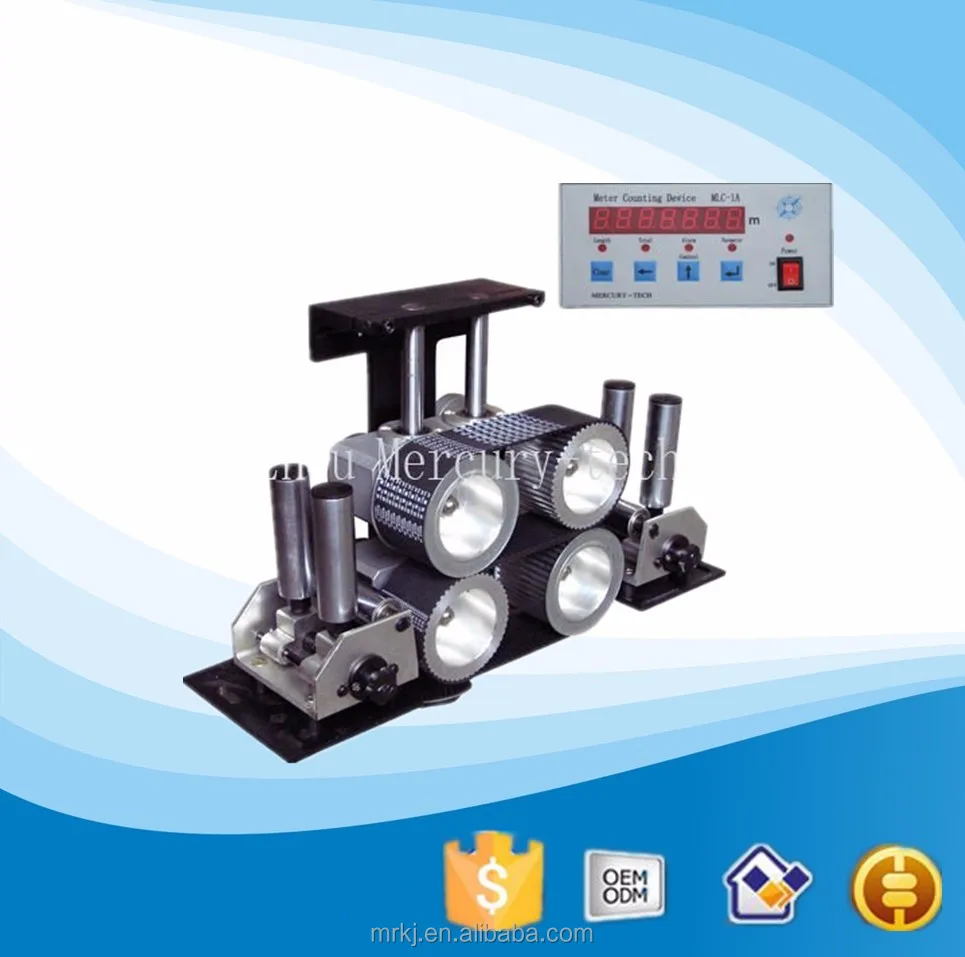

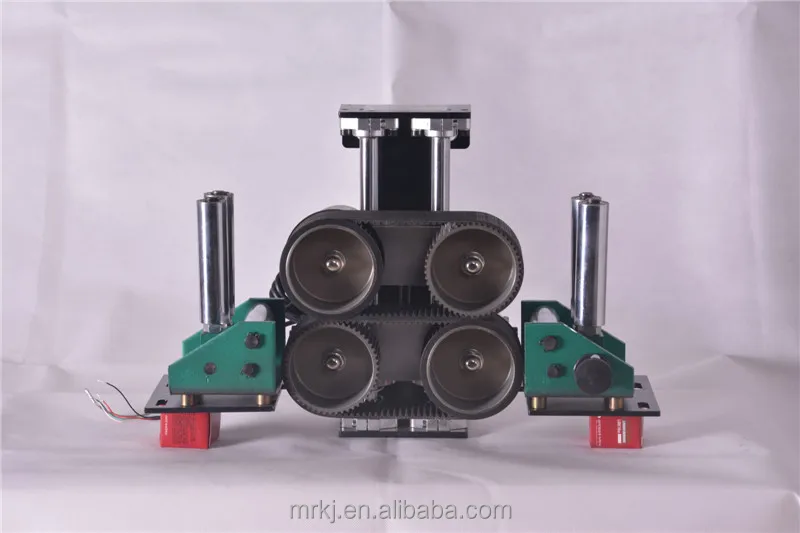

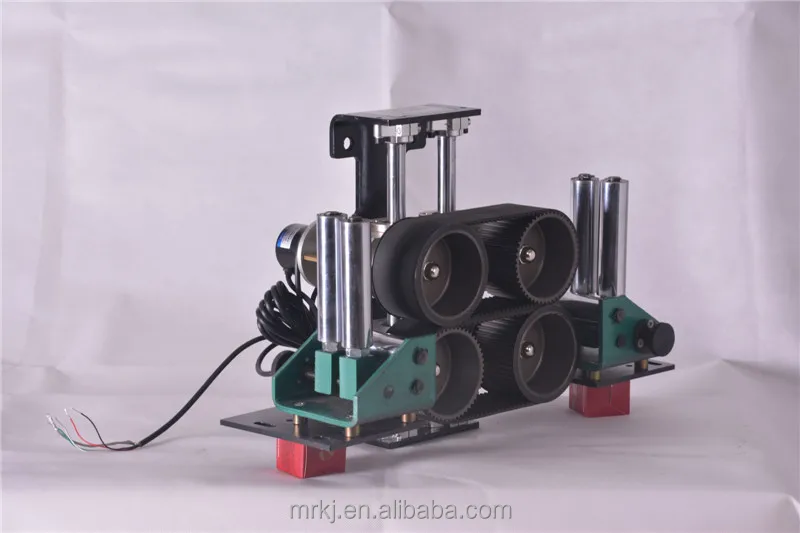

Cable length meter counter (Model: CCDD 60L)

Product Overview

Description

Cable length meter counter  (Model:CCDD-60L)



CCDD series belt type counter will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.





Features



1.Designed for wire and cable pipe meter and design process, high precision.



2.LED display is clear and easy reading.



3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .



4. High accuracy,up to +/- 0.1%



5. Positive or reverse two-way adjustable counting



6. Emergency power down data protection



7.CCDD-150L is specially designed with air cylinder unit.



8.Counter support height can be adjusted to adapt to different heights of the production line.



9. The position of decimal point on display is adjustable..



10. Standard Belt,easy to find replacement belt in market.







Specification



Model	CCDD-30L	CCDD-60L	CCDD-150L
Measuring Range	3-30mm	3-50mm	3-150mm
Max Counting Length	9999999	999999	999999
Max Total Length	99999.99	99999.99	99999.99
Accuracy	+/- 0.1%	+/- 0.1%	+/- 0.1%
Dimension	410x180x1200mm	430x225x1200mm	490x370x590mm
Total Net Weight	17KG	22KG	55KG
Max Measuring Speed	400 m/min	400 m/min	400 m/min
Relay Output	2	2	2
Alarm Output	Yes	Yes	Yes
Display digits	7 digit	7 digit	7 digit
Length Measuring Unit	Meter	Meter	Meter
Calibration	Yes	Yes	Yes
Decimal Point Shift	Yes	Yes	Yes
Length Preset	Yes	Yes	Yes
Ahead of Preset Output	Yes	Yes	Yes
Control Preset	Yes	Yes	Yes
Emergent Data Protection	Yes	Yes	Yes
Two-Direction Counting	Yes	Yes	Yes
Ft Measuring Unit	Option	Option	Option
RS485	Option	Option	Option
Power Consumption	<10W	<10W	<10W
Voltage	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ

















Model:CCDD-60L





The Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm×80mm×170mm
Installation hole size: 152mm×76mm
