Radiator Plastic Tanks for car

Product Overview

Description

BRIEF INTRODUCTION

Radiator plastic tanks are made from modified engineering plastic PA66 with 30% glass fiber by injection molding,it is a main spare parts of car radiator.The radiator belonging to vehicle cooling system were composed by three parts:inlel & outlel plastic tanks,header plate,radiator core.The flow of coolant in the radiator core became cold for transfering the heat to air,while the air became hot for get the heat from radiator.so the radiator is a heat

exchanger.

We can provide thousands models of radiator plastic tanks.they are:

ALFA.ROMEO.BENZ.AUDI.BMW.DAEWOO.FIAT,FORD,HOLDEN.HONDA.HYUNDAI,ISUZU.KAC,KIA,MAZDA,MITSNPISHI,NISSAN,

PEUGEOT.TOYOTA.VOLKSWAGEN.etc.

we can provide OEM service.please provide DPI,NISSAN,OEM number to us when you hunt for radiator tanks,also you can contact us for e-catalogue.

RADIATOR PLASTIC TANKS SPECIFICATIONS:

Description	PA66	Grade	01
Test standards	ISO,UL,IEC,ASTM	Handling	23°C-24h	Environment
Properties		Test method	Unit	Typical values
Tensile strength		ASTM   D-638	Mpa	121.46
Elongation at break		ASTM   D-638	%	11.02
Flexural strength		ASTM   D-790	Mpa	208.79
Bending modulus		ASTM   D-790	Mpa	6841.023
Izod notched impact strength		ASTM   D-256	KJ/m2	62.011
Charpy unnotched impact strength		ASTM   D-256	KJ/m2	14.584
Heat deflection temperature(18.6Kgf/cm2)		ASTM   D-648	°C	245
Ashy		ASTM   D-482	%	33
Shrinkage		ASTM   D-955	%	0.55
Density		ASTM   D-792	g/cm3	1.41
Flammability		UL-94	Class	HB

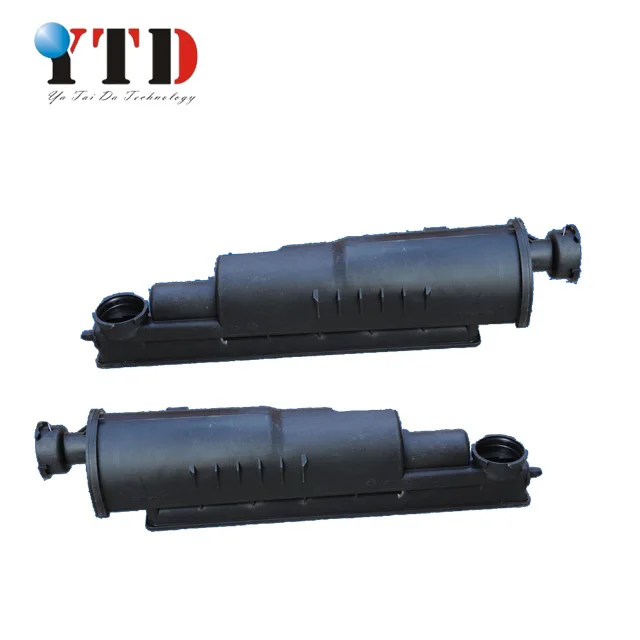

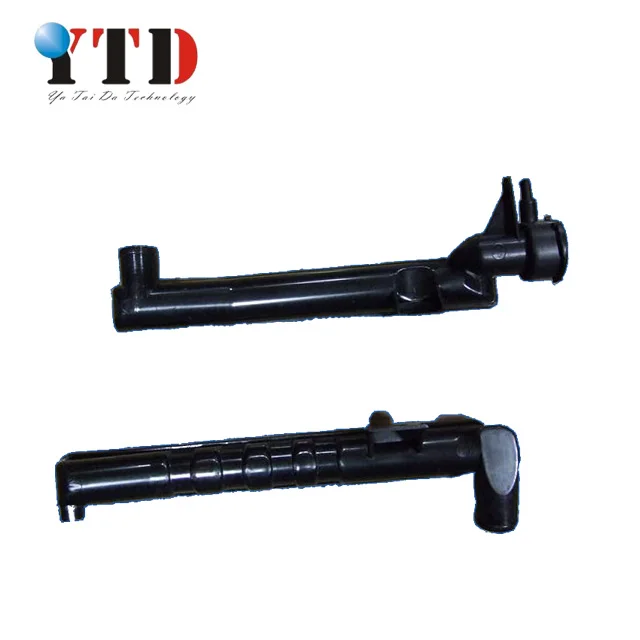

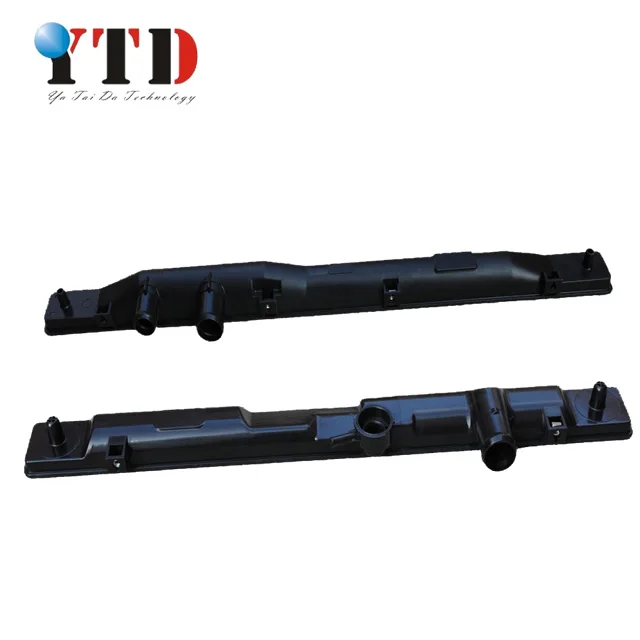

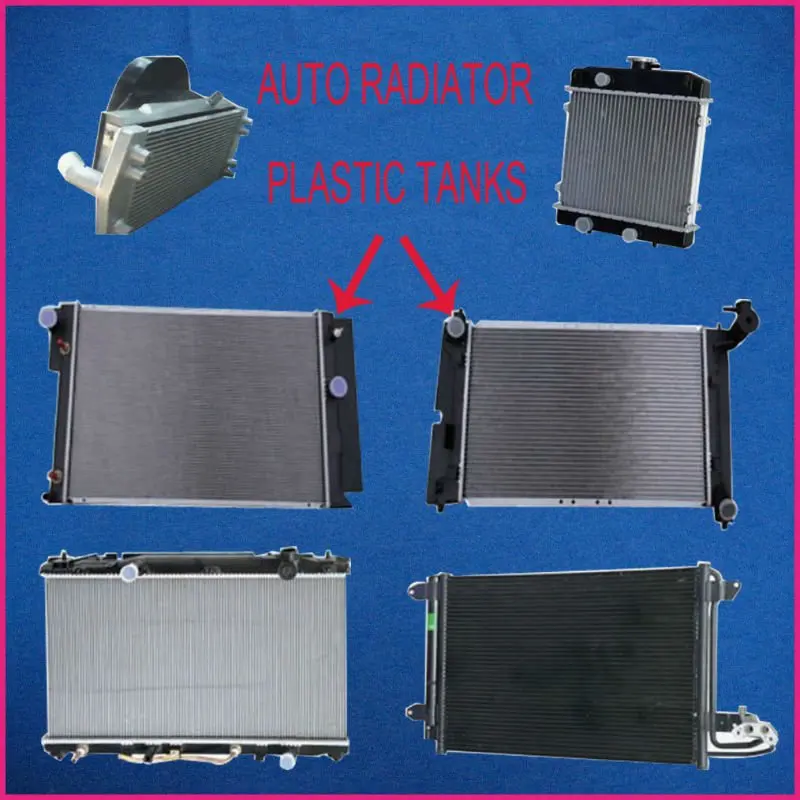

RADIATOR PLASTIC TANKS PHOTOS:

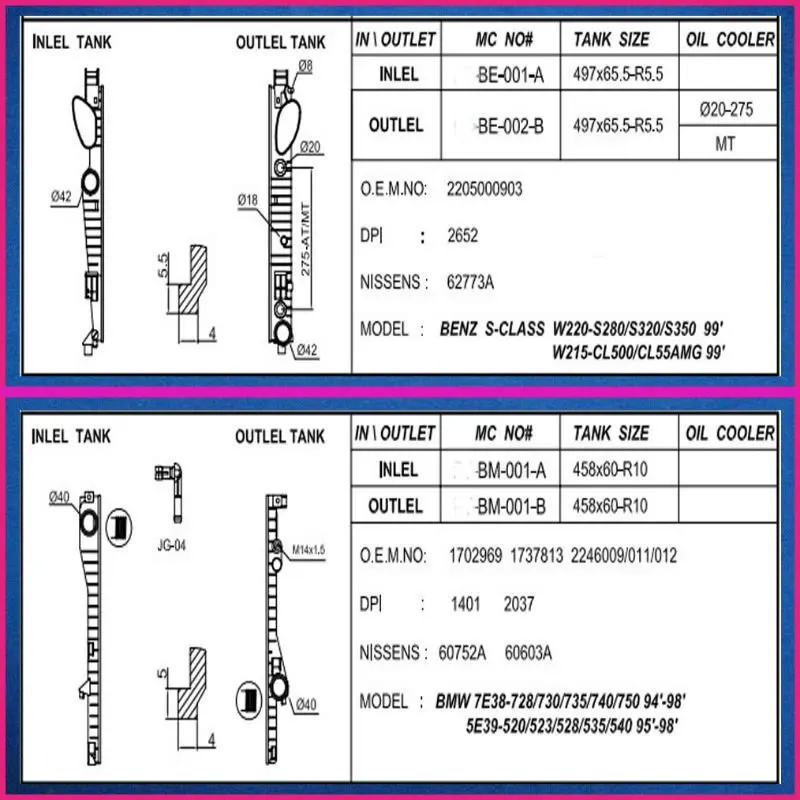

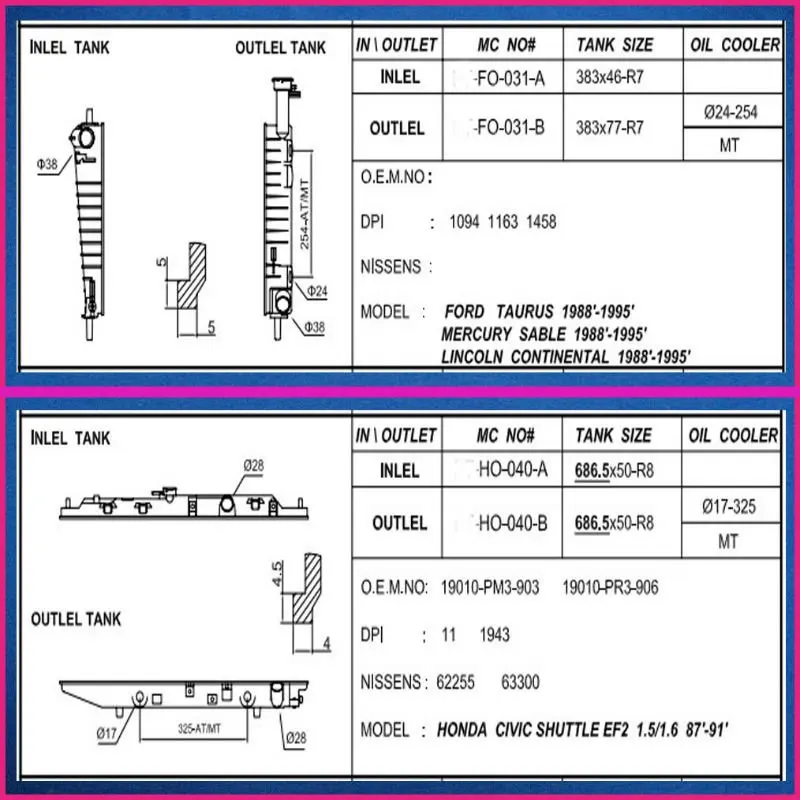

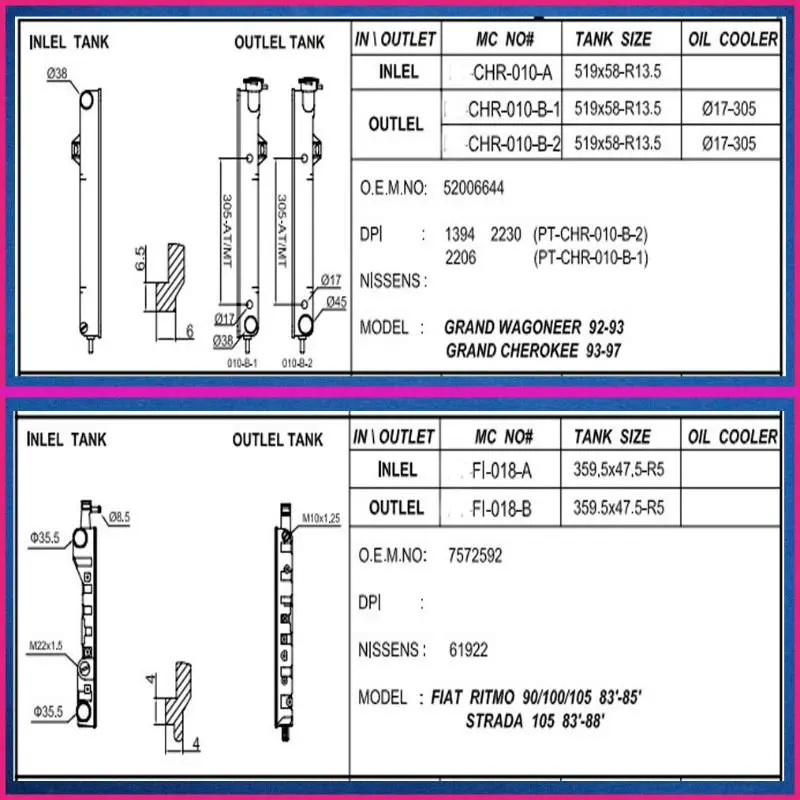

RADIAROR PLASTIC TANKS DESIGN DRAWING:

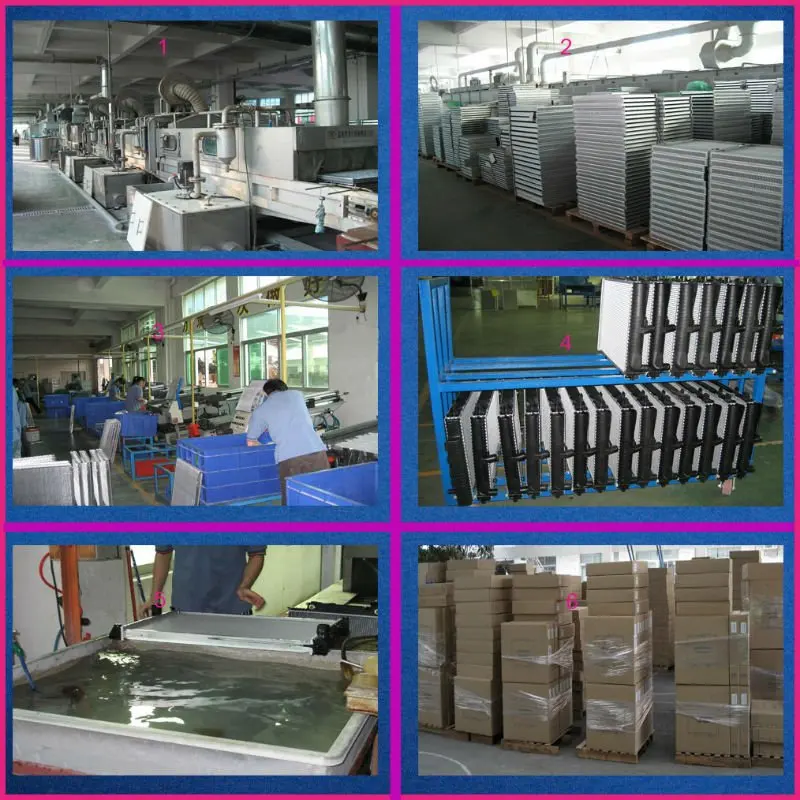

RADIATOR PRODUCTION PROCESS:
