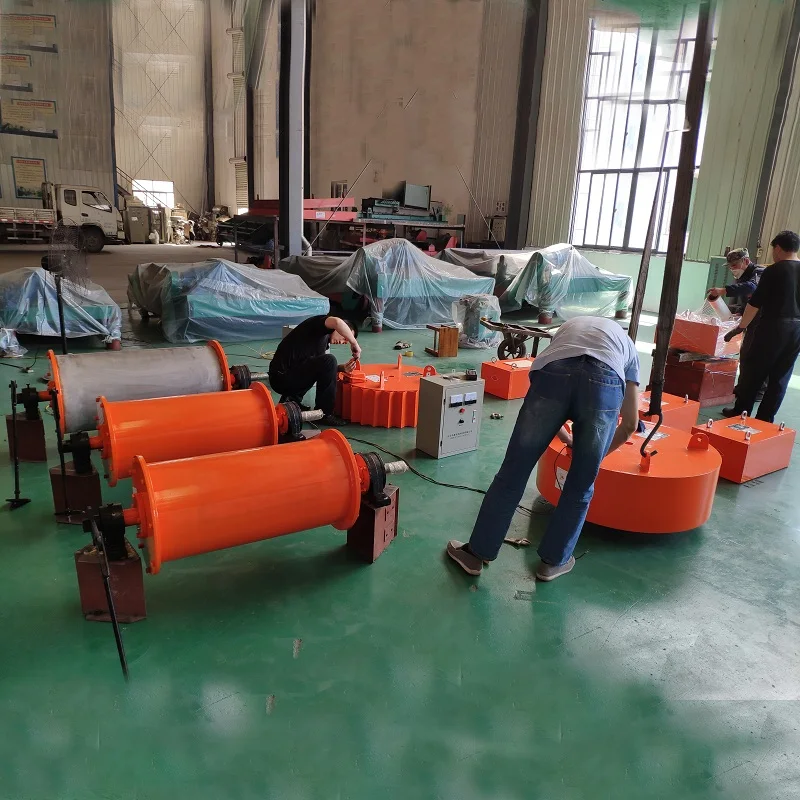

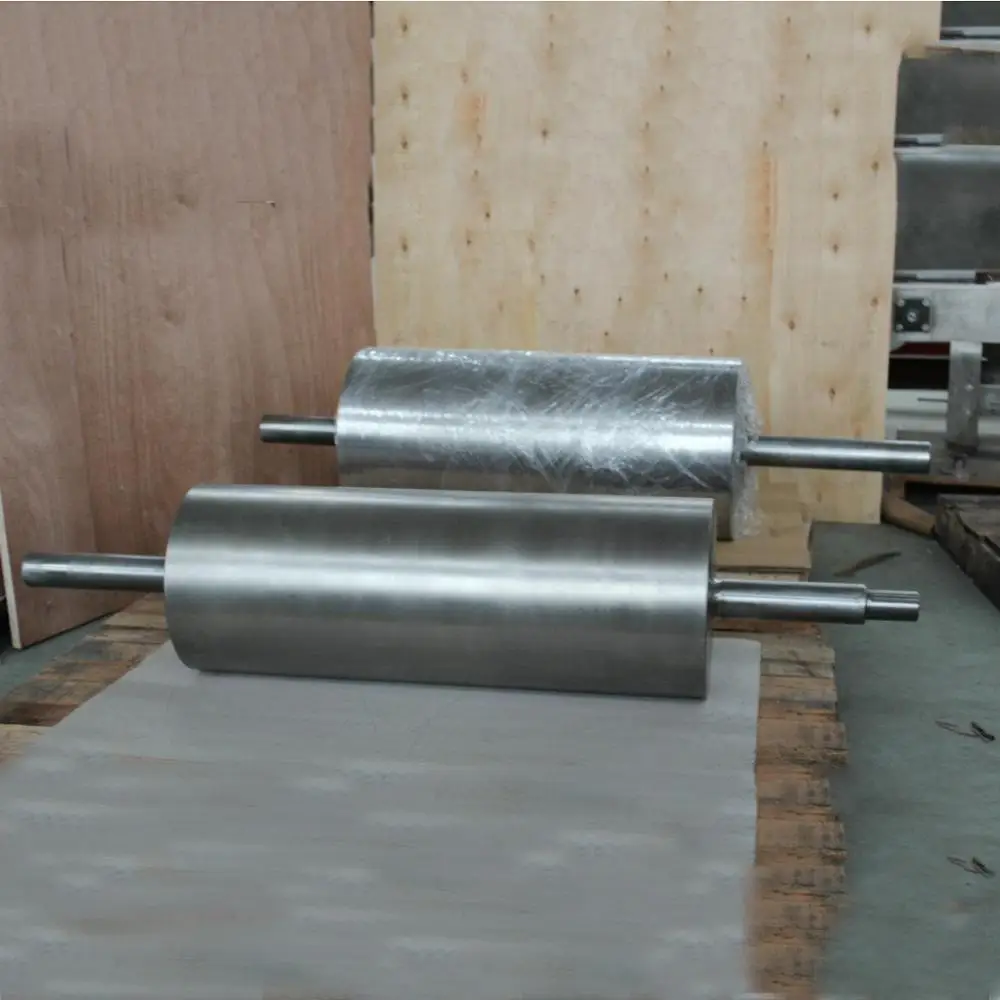

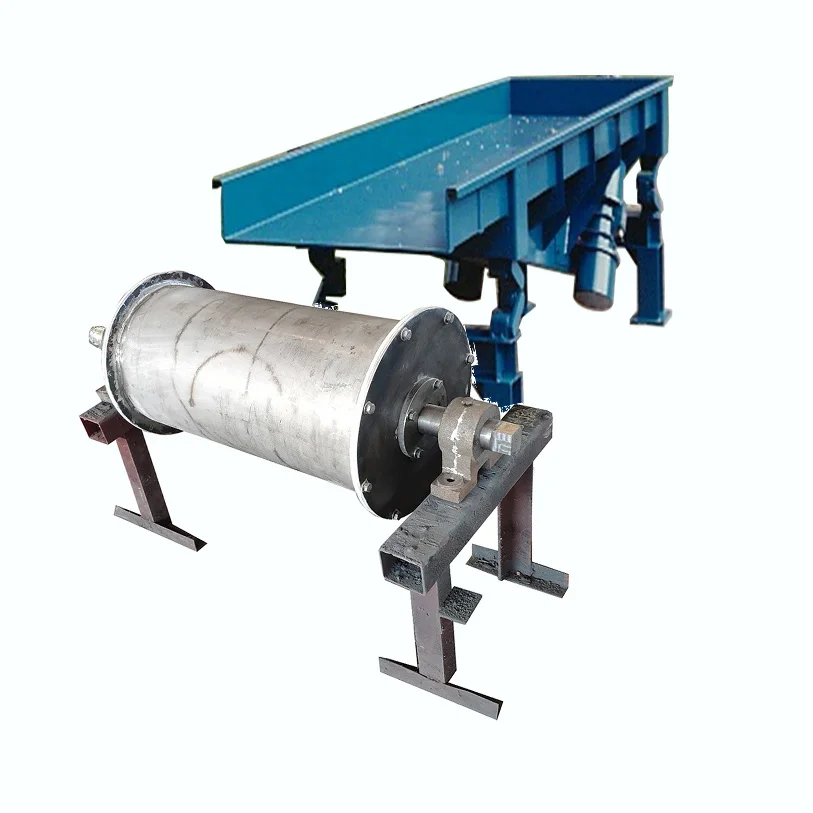

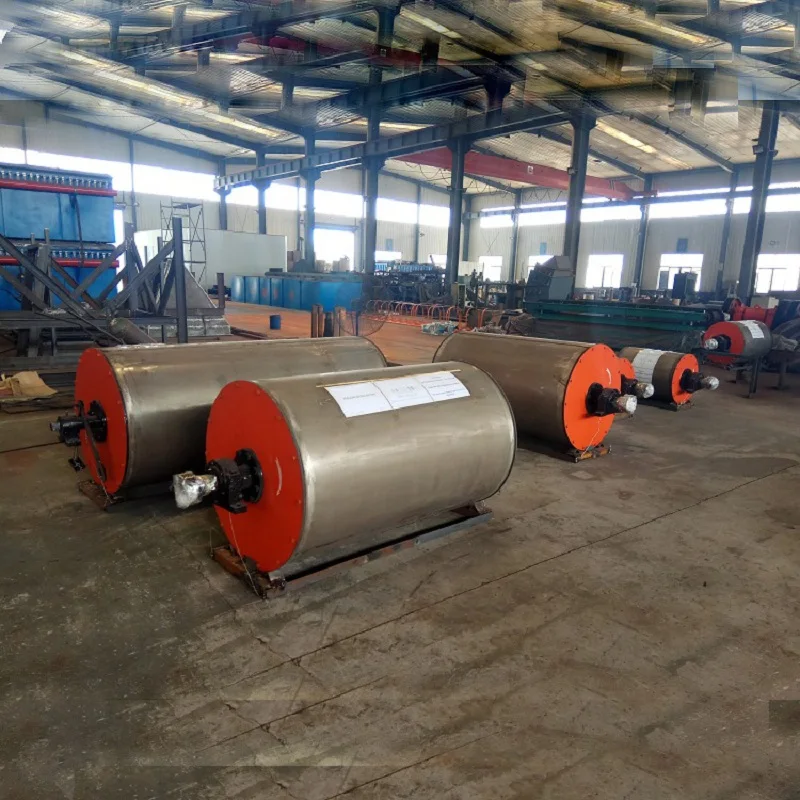

Series RCT permanent magnetic pulley, magnetic drum,magnetic roller

Product Overview

Description

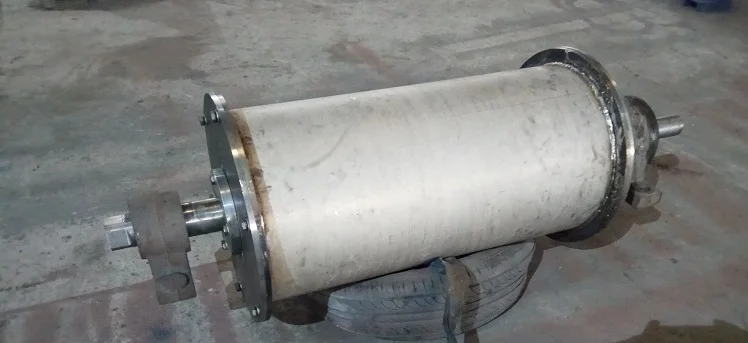

            Series RCT permanent magnetic pulley, magnetic drum,magnetic roller

 Introduction
Series RCT permanent magnetic pulley(magnetic drum) is also called dry bulk magnetic separator. Its internal complex magnetic system is made up of high-performance hard magnetic materials. Series RCT permanent magnetic pulley has a strong magnetic field intensity, a simple structure and no energy consumption. It is easy to use, without maintenance, and there is no demagnetization after year round use. Series RCT permanent magnetic pulley is widely used together with series DT-75 and AD-80 belt conveyors to replace the drive pulley or driven pulley, and it is especially suitable for the continuous automatic iron separation from steel slag, ore slag, water slag, etc.
Applications

Widely used for iron election in cement, magnetic separation, mining, steel, chemicals, refractories, waste disposal and other industries.



Technical specifications



Model No.	Adaptive belt width (mm)	Diameter of drum (mm)	Length of   drum (mm)	Magnetic intensity (mT)	Rotary speed (r/min)	Iron removing capacity  (t/h)		Weight   (kg)
						Powder materials	Bulk materials
CTZ-32/40	400	320	500	300	20~30	0.8	10	120
CTZ-32/50	500	320	600	300		1	15	150
CTZ-40/50	500	400	600	300		2	20	240
CTZ-50/50	500	500	600	300		3.5	30	360
CTZ-32/65	650	320	750	300		2	20	210
CTZ-40/65	650	400	750	300		2.8	30	350
CTZ-50/65	650	500		300		4.5	40	420
CTZ-63/65	650	630		300		7	45	830
CTZ-40/80	800	400	950	300		8	55	470
CTZ-50/80	800	500		300		10	65	600
CTZ-63/80	800	630		300		10	80	800
CTZ-80/80	800	800		400		12	100	980
CTZ-63/100	1000	630	1150	350		12	120	1200
CTZ-80/100	1000	800	1150	400		15	140	1300
CTZ-100/120	1200	1000	1400	400		20	180	1580
CTZ-125/140	1400	1250	1600	400		30	250	1950

Note: 1 mT = 10 gauss

5000 gauss, 6000 gauss, 8000 gauss can be made according to custom require.
