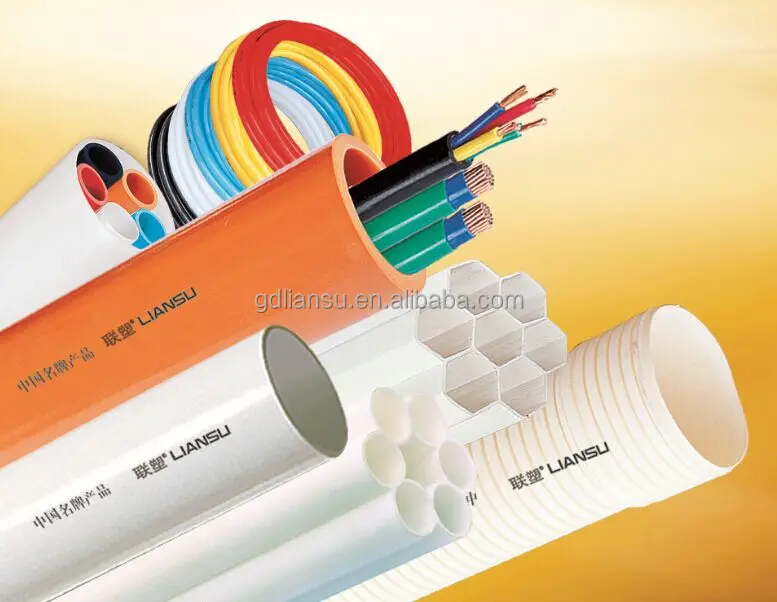

LESSO PVC cable pipe underground PVC Solid Wall Pipe

Product Overview

Description

PVC cable pipe underground PVC Solid-Wall Pipe

Detailed Product Description

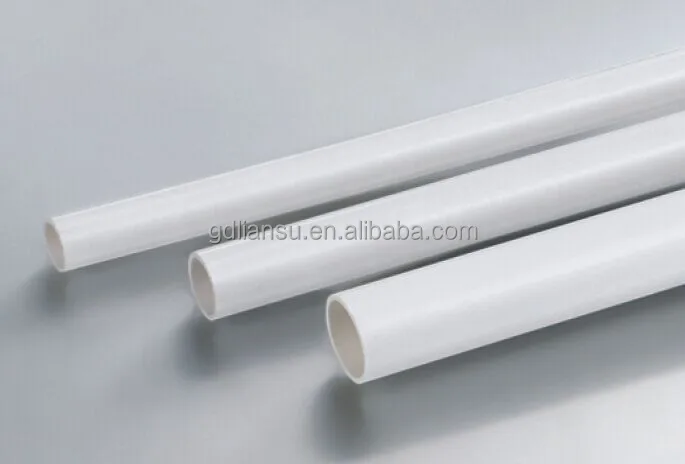

Underground PVC Solid-Wall Pipe
1 Using solvent cemented joints, easy to install
2 Impact strength, can be buried underground

Underground PVC Solid-Wall Pipe

Advantages

1 Using solvent cemented joints, easy to install

2 Impact strength, can be buried underground

3 High ring stiffness,High strength

4 Resistant to acid and alkali



 Physical  Properties

properties	Typical Value
Impact Resistant(0°C)	9/10Pass
ring stiffness(KN/S.QM)	≥6.3
flattening test	No break
Friction Coefficient	Dry≤0.363 Wet≤0.115
Joint airtight testing	no leakage



Note: The length of pipe is often 6m. Other diameter, wall thickness and length can be made upon reques





Products can be made according to customers’ requirements                    Dimensions  Standard:YD/T841.2-2008



dn(mm)	ring stiffness(KN/S.QM)	en(mm)
40	SN8	1.6
50	SN6.3	1.6
	SN8	1.8
63	SN6.3	1.8
	SN8	2.0
75	SN6.3	2.0
	SN8	2.2
90	SN6.3	2.2
	SN8	2.5
110	SN6.3	2.8
	SN8	3.2
125	SN6.3	3.3
	SN8	3.6
160	SN6.3	3.8
	SN8



dn(mm)	en(mm)
50	2.0
63	2.5
75	2.5
90	2.8
98	3.2
98	5.0
110	3.0
110	3.2
160	3.5
160	4.0
200	4.0
200	4.5
