Best selling durable using label rules,2pt die cutting knife,die cutting rules

Product Overview

Description

 Best selling durable using label rules,2pt die cutting knife,die cutting rules



♣ Raw Material

the imported premium steel, offering higher precision, which is very helpful to the machines when production, also will increase the productivity.





 ♣ Size and Packing

size	meter lengths	coils
0.71*23.30/ 23.60/ 23.80mm, 2PT	100pcs/box	100m/box
1.05*23.30/ 23.60/ 23.80mm, 3PT	70pcs/box	70m/box
1.42*23.80mm, 4PT	50pcs/box	unavailable





♣ Body Hardness

HRC 34~36 (soft)

HRC 37~39 (medium hard)--standard hardness

HRC 40~42 (hard)





♣  Tip Hardness

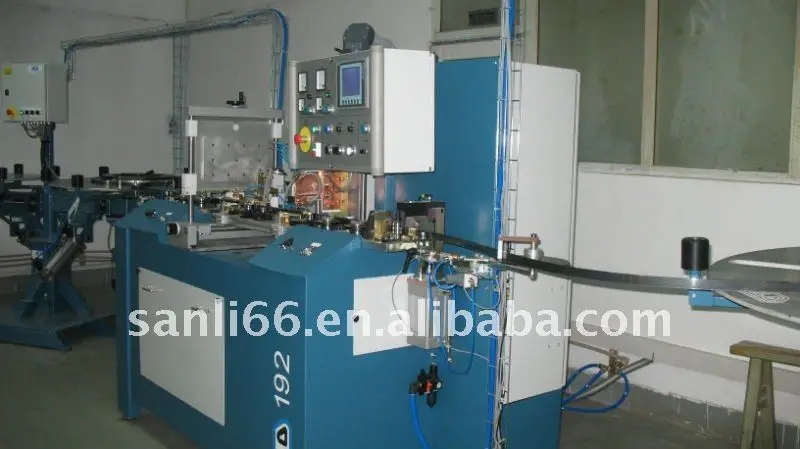

HRC 52~56, hardened by the following machine.











The most advanced hardening machine in the world until now, same as SANDVIK





♣ Tip Hardening Method

High Frequency Induction by Swedish equipment. This is the most advanced hardening technology in the world, makes the rules more durable, reduce the replacements.

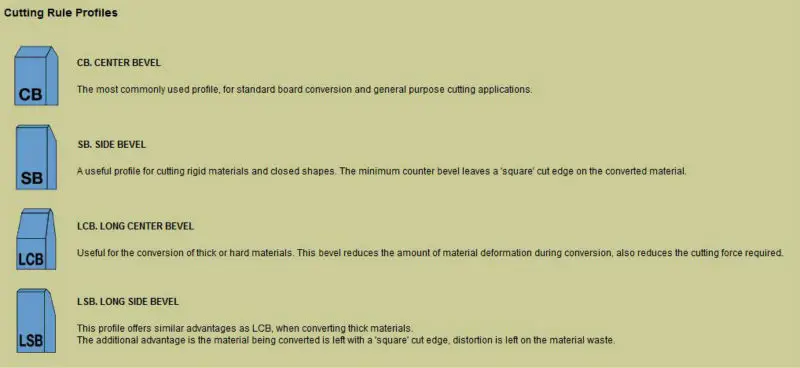

♣ Cutting Bevel





♣ Edge Type

Shaved edge, Ground edge. 42 Degree, 52 Degree





♣ Application

sually used in die cutting paperboard, corrugated paper, box, carton, circuit board and so on.

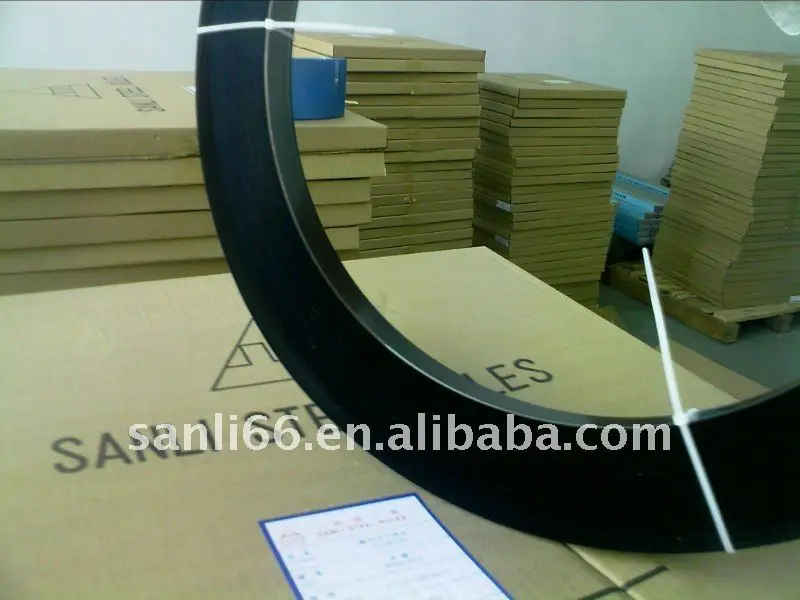

                                                    coils for auto-bender
