Die-formed Lollipop Producing Line
Product Description
The processing line is an advanced and continuous plant for making the ball-type or flat
-type lollipop (stick –adding can be done automatically). It is an ideal equipment which can
produce out good quality products with the saving of both the manpower and the space occ
-upied.
COMMODITY:
DF200 die-formed lollipop producing line
FEATURES:
1) The production capacity from 200~250kgs/h;
2) Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which
controls a stable steam supply to the cooker;
Die-formed ball-type lollipop
TECHNICAL SPECIFICATIONS:
Model | DF200 |
Production capacity ( kg/h) | 200~250 |
Drum running speed(n/min) | 0~20r/min |
Diameter of each lollipop(mm) | 25mm(round) |
Length of stick available(mm) | 60~100mm |
Diameter of the stick available(mm) | Dia.3.2~4.0mm |
Steam consumption (kg/h) Steam pressure (Mpa) | 400 0.2~0.6 |
Electric power needed | 2.2kw/380V |
Conditions needed for the cooling system: 1.Room temperature(°C) 2.Humidity (%) |
20~25 55 |
Length of the whole line (m) | 15m |
Gross weight ( Kgs) | Approx.5000 |
FLOW DIAGRAM:
Sugar dissolving→ syrup storage→ continuous cooking→ die-forming → stick -adding
→ cooling→ packaging
MAIN EQUIPMENT LIST:
The whole line is comprised of following equipment:
COMMODITY:DIE-FORMED LOLLIPOP PROCESSING LINE
MODEL: DF200
ITEM NO. | EQUIPMENT | SPECIFI -CATION |
1 | FIXED COOKER | 300 L |
2 | GEAR PUMP 1’’ | 1” |
3 | STORAGE TANK | 200L |
3.1 | Connecting pipes and valves |
|

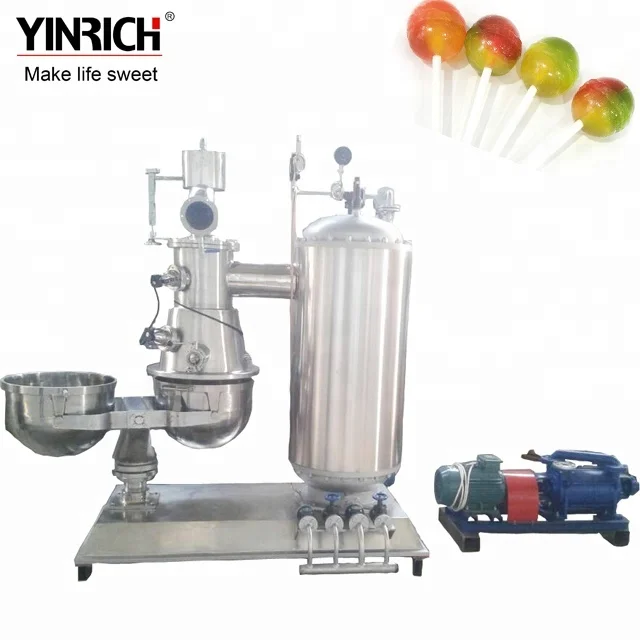

4 | CONTINUOUS COOkER(LX400) | 300KGS/H |
5 | COOLING TABLE | 1.8x1.0x0.8M |

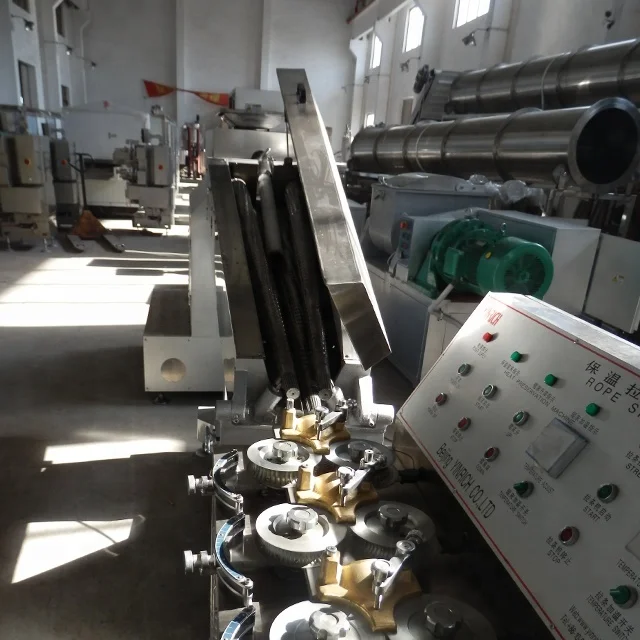

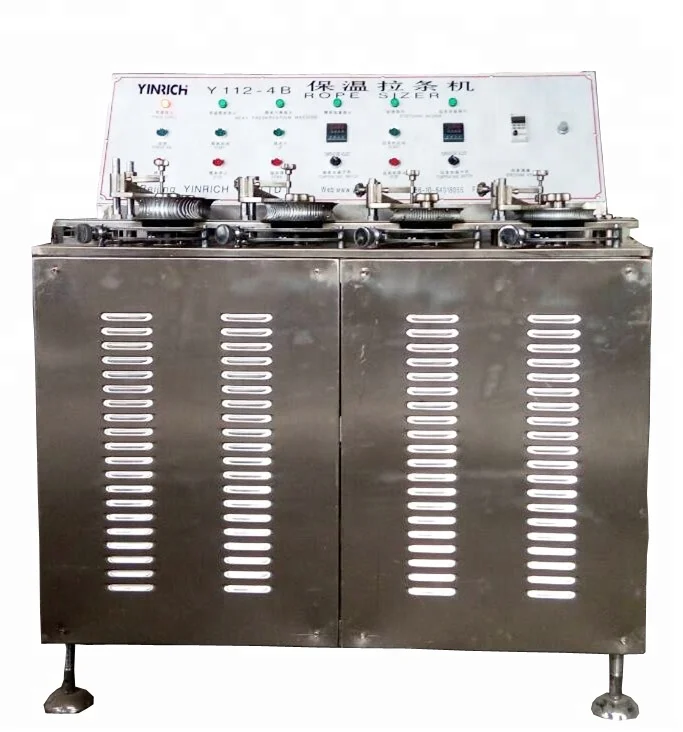

6 | BATCH ROLLER & ROPE SIZER |
|
7 | LOLIPOP DIE-FORMING MACHINE (BALL-TYPE) | BD40(200KGS/H)
|
| LOLIPOP DIE-FORMING MACHINE | BD64(300 KGS/H) |
| LOLIPOP DIE-FORMING MACHINE (BALL-TYPE) | BD80(500 KGS/H) |
8 | Climbing machine and COOLING MACHINE(5 LLAYORS) |
|
| Cooling tunnel with refregirator |
|

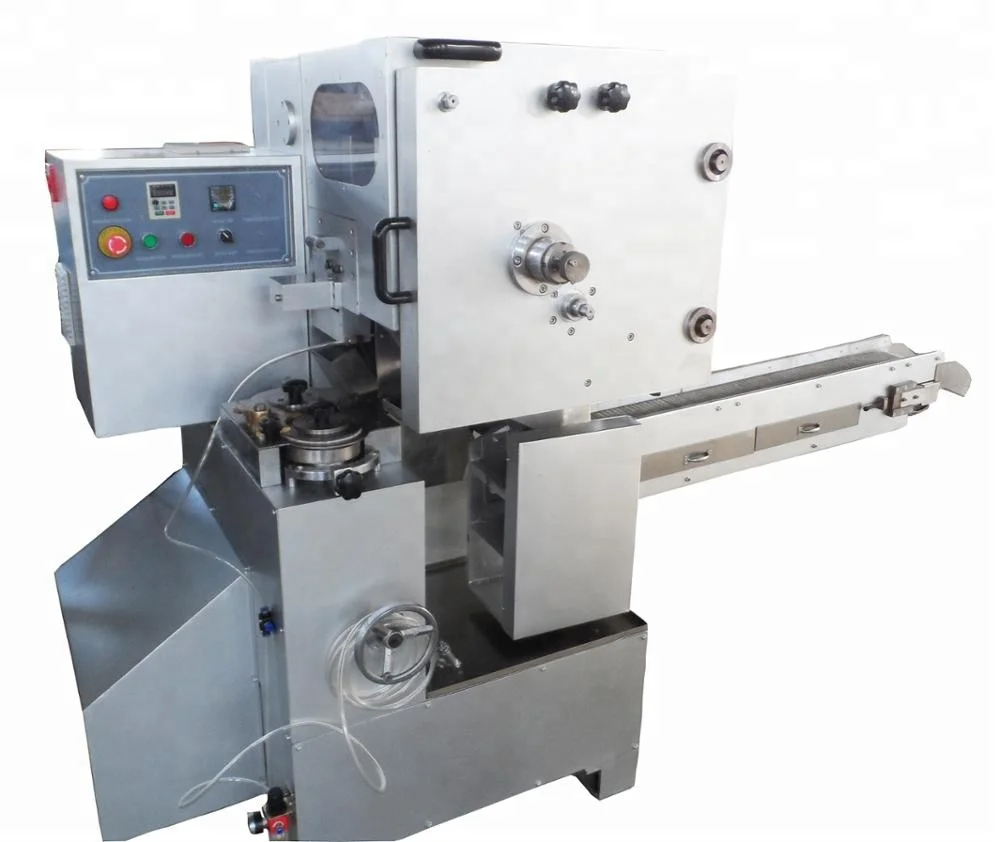

9 | BALL-TYPE LOLLIPOP WRAPPING MACHINE | BBJ-II |
