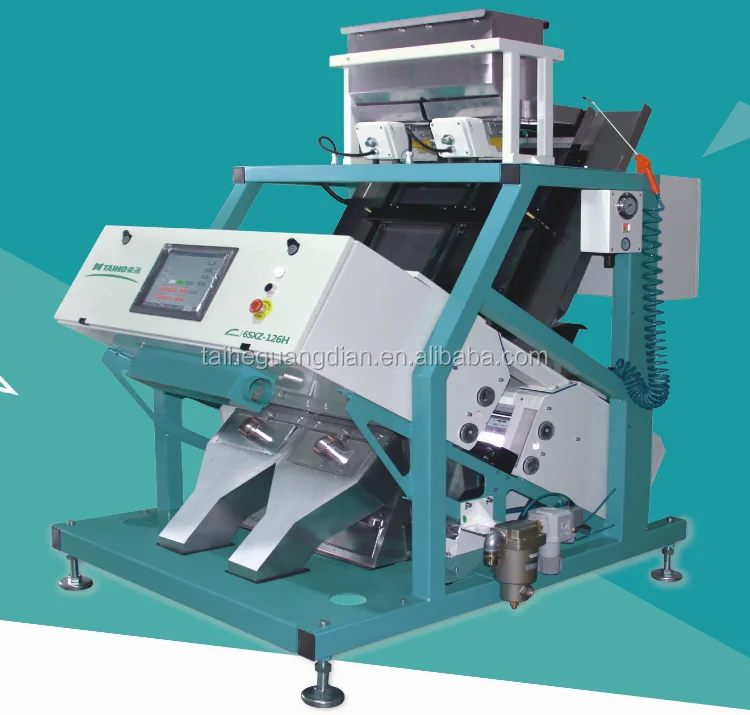

High Quality Intelligent Nir Spectrometer Sorter Machine For Grain and Quartz Sand

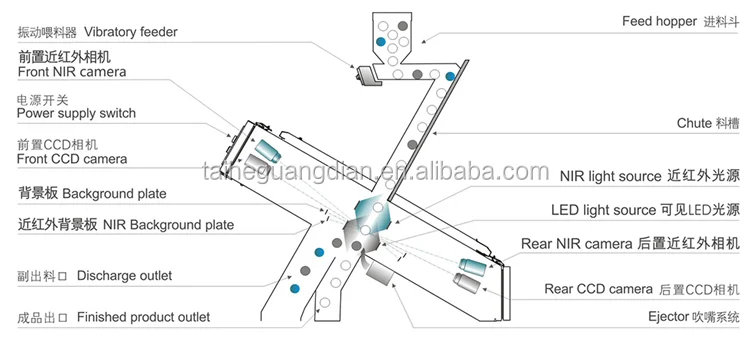

NIR+ TRUE COLOR IMAGE GRABBING SYSTEM

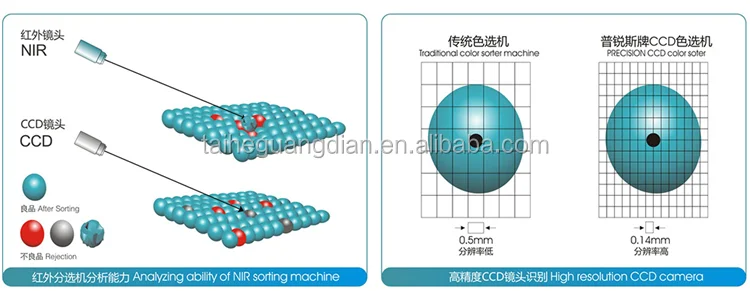

The IR color sorter machine have NIR CCD image grabbing system and true color CCD image grabbing system
The NIR image grabbing system can get NIR information from the raw material. This system expand the application range of color sorter spectrum and achieve the color sorting of some infrared-sensitive material
Use the color CCD image acquisition system to acquire the comprehensive information of red, green and blue color. The color sorter has the sensory ability of human eye, making better selection of materials , and satisfying the requirements better;

FLEXIBLE LIGHT SOURCE CONFIGURATION

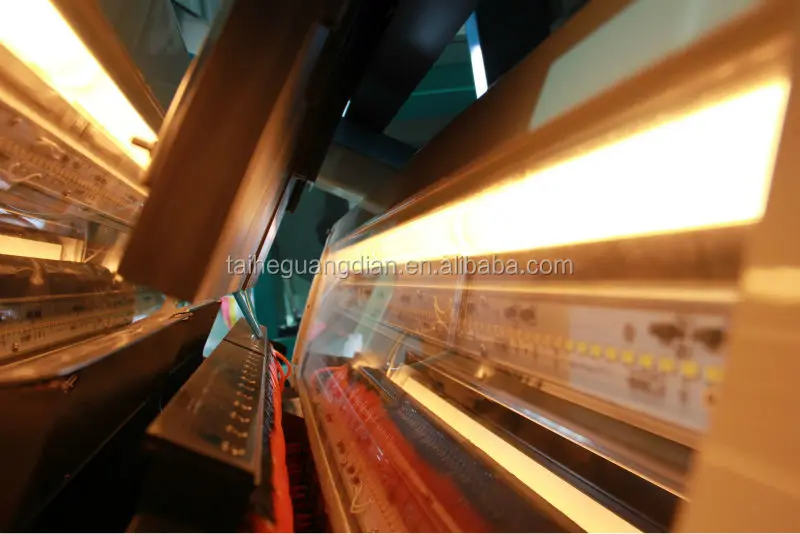

The IR color sorter machine have color LED illumination system and NIR wide spectrum illumination system
For different raw material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance
The NIR wide spectrum illumination system uses the Germany imported light source. This light source also has uniform illumination, high brightness, low energy consumption and stable property.

DEDICATED IMAGE PROCESSING ALGORITHM,EXCELLENT REJECTION RATE (CARRYOVER RATE)

According to the characteristics of material, use the shape and color combination algorithm;For materials with complex colors, the machine
sorts materials more directly and accurately by using HSV-changed color space sorting method.

Advanced image acquisition system + intelligent image processing algorithms + high-quality nozzle system = excellent elimination rate

HIGH-QUALITY SOLENOID VALVE

Use High-quality,high-frequency,long service life ejecter,super low air consumption guaranteed the biggest capacity,excellent rejection output

For the different sizes and characteristics of material particle, use the solenoid valve of different sizes.

SIMPLE OPERATION, EASY TO LEARN AND USE

Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.

6SXZ-126H
