adjustable and multi directional air diffuser/air vent/air grille

Product Overview

Description

adjustable and multi-directional air diffuser/air vent/air grille

plastic air vent diffuser

exhaust air grille air diffuser

return air vent grill

air ceiling diffuser / ventilation grille

supply air grille/air diffuser

air conditioning linear grilles diffusers

air grills and diffusers in plastic





Shaping Mode: plastic injection

Mould Steel: S45C, P20, 718, 718H, 2738, 738H, NAK80, SKD61, E420, etc. (For Reference)

Mould Base: LKM or Self-made.

Mould Components: HASCO, DME, PUNCH, JINHONG, etc (For Reference)

Hot Runner: YUDO, HASCO, M-H-R, etc (For Reference)

Main Software: AutoCAD, UG, CATIA, Solid works, etc



Product Name	adjustable and multi-directional air diffuser/air vent/air grille
Item code	ABSG001
Material	Plastic(ABS/HIPS)

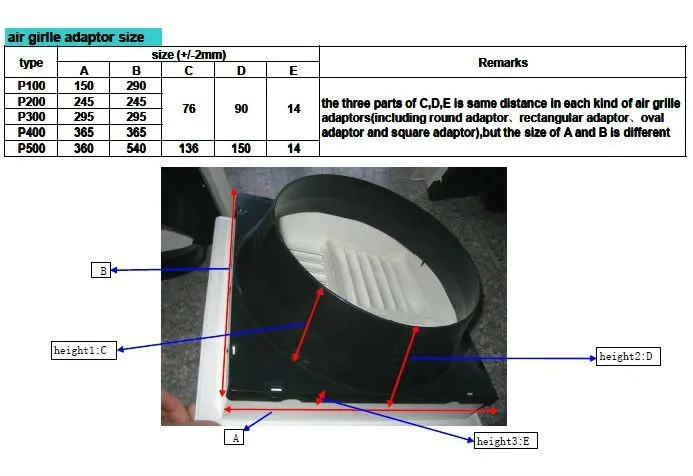

Color	the frame is natural, the adaptoris black
Size	250mm*250mm,300mm*300mm,360mm*540mm, and different sizes available upon your requirements
FOB Price	3.75USD/pcs—10.1USD/pcs
Product Features	1. The grille is made out of two levels of deflection blade sets perpendicular to each other,vertical blade set at the front and horizontal blade set at the back.
	2. The deflection blade sets can be adjustable manually.
	3. The optional volume control damper can be added to the grille to form as register to further control the air volume.
	4. Removable core, four direction air flow , the windows are assembled with each frame, the windows can be removed.
	5. Easy mounting clip, easy to install and clean
	6. Less condensation than metal grilles
Package	the frames and the adaptors are separated in carton to save the room,the frames are packed 10pcs/carton, a poly bag for each frame.
Lead Time	7-15days
Payment Terms	L/C,T/T
Delivery Terms	Delivering by sea, air or express agent according to customer's requirements
Application	sidewall outlet type air distribution
