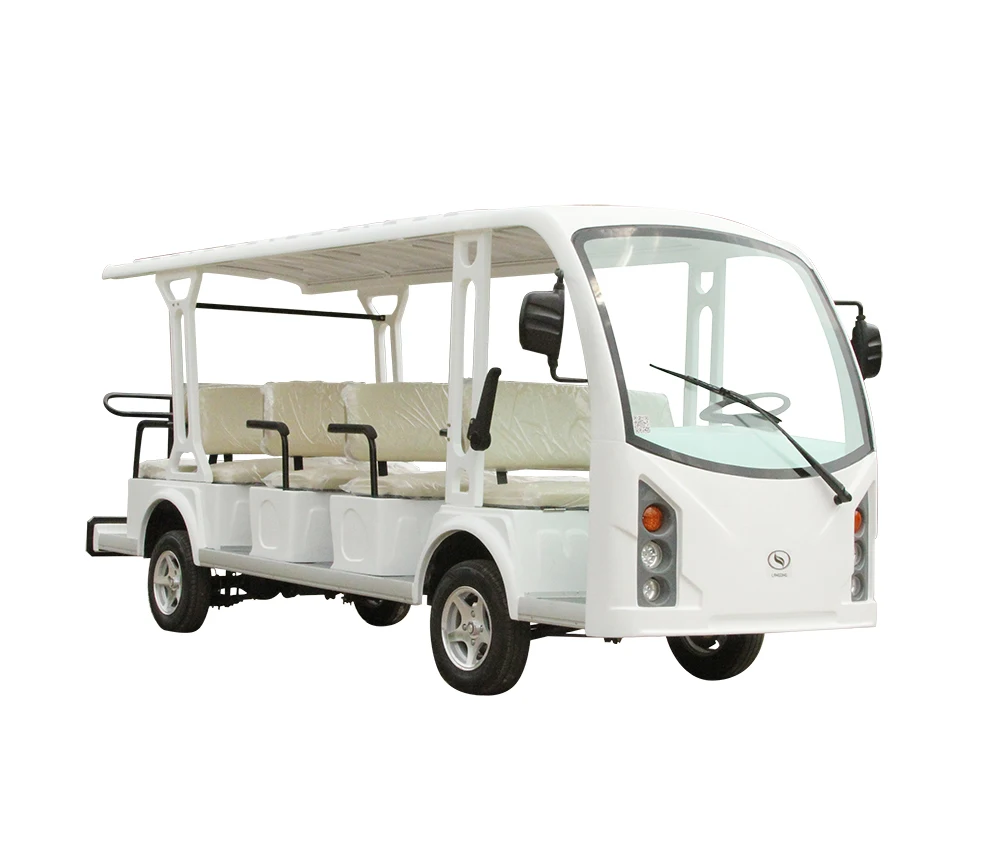

electric passenger bus LQY146

Product Overview

Description

14 seats shuttle bus



Performance:
	Passenger capacity			14 seats
	Max.speed			28km/h
	Range(loaded)			90km
	Climbing Ability(loaded)			15%
	Braking Distance			≤4.5m
	Min.Turning Radius			6.5m
	Min.Clearance			150mm
	Recharge time			8~10h
Domensions:
	L×W×H			5000×1480×1988mm
	F/R Tread			1210/1200mm
	Axle Distance			2800mm
	Curb Weight			1350kg
	Max. loading weight			1140kg
Configurations
Standard:
	Motor			72V/5KW DC motor
	Controller			72V 400A
	Battery			Lead Acid free maintence Battery 6V ×12pcs
	Body			High impact fiber glass
	Roof			High impact fiber glass
	Windshield			See-through Laminated glass
	Seats			Sponge + artificial leather
	Side rear view mirror			2pcs
	Bumper			Front and back
	Tire			Steel 155/80R12
	Chassis			Welded tubular steel with rust-proof powder coat paint
	Steering			Single reduction rack and pinion
	Suspension			The MacPherson Strut front suspension system, coil spring+shock absorber,Leaf spring+shock absorber non-independent rear suspension
	Lighting system			2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
	Sound system			Radio and tape player
	Brake system			Rear and front drum pneumatic brake system,4-wheels Hydraulic pressure type
	Driving mode			Rear wheel driving
	Charger			Fully automatic high efficiency pulse, 25 Amp DC output at 72 volts; input AC 220 volts, 50HZ , external charger
				Forward/reverse switch, turn signal indicator, ignition key, ammeter, emergency switch,  headlight switch, windscreen wiper switch, horn button, radio and tape player,electric power consumption indicator
	Dashboard
