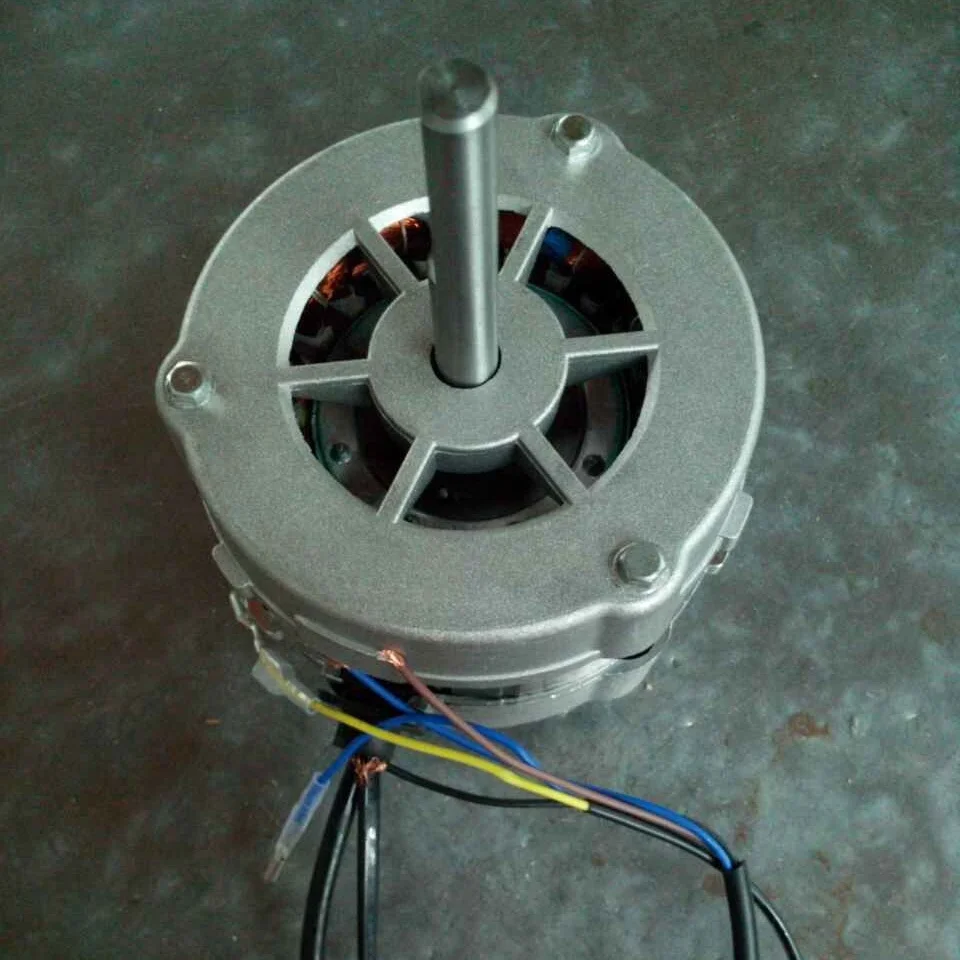

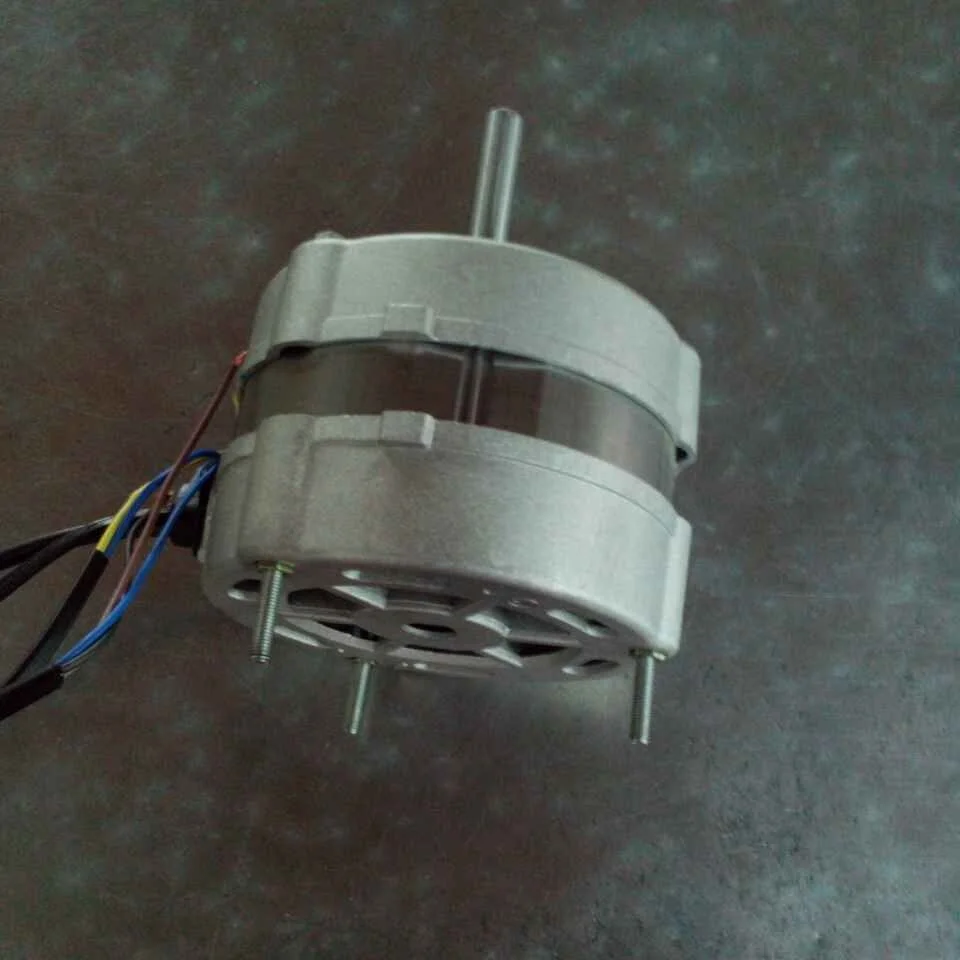

Motor for cooker hood and outdoor unit air conditioner

Product Overview

Description

Model	Rated voltage(V)	Rated frequency(Hz)	Rated power output(W)	Rated speed of rotation(r/min)	Capacity(uf/450v)	Noise dB(A)	ELectrode
YYS15-4/6	220	50/60	15	1350/600-800	2.0/1.5	≤42	4/6
YY820-4/6	220	50/60	20	1350/600-800	2.0/1.5	≤42	4/6
YYS25-4/6	220	50/60	25	1350/600-800	2.5/2.0	≤42	4/6
YYS30-4/6	220	50/60	30	1350/600-800	2.5/2.0	≤42	4/6
YYS35-4/6	220	50/60	35	1350/600-800	2.5/2.0	≤42	4/6
YYS45-4/6	220	50/60	45	1350/600-800	3.0/2.5	≤42	4/6
YYS50-4/5	220	50/60	50	1350/600-800	3.0/2.5	≤42	4/6
YYS60-4/6	220	50/60	60	1350/600-800	3.5/3.0	≤42	4/6

It suits 1P,1.5P,2P Outdoor air conditioner.

The motors can be customized according to the different  voltage, frequency,and the rotation speed.
