adjustable and compact ABS plastic return air grille 150mm*300mm

Price:RUB 231.25 - RUB 242.62

Quantity:

adjustable and compact ABS plastic return air grille 150mm*300mm

return air filter grille

plastic return air grille

eggcrate return air grille

Shaping Mode: plastic injection

Mould Steel: S45C, P20, 718, 718H, 2738, 738H, NAK80, SKD61, E420, etc. (For Reference)

Mould Base: LKM or Self-made.

Mould Components: HASCO, DME, PUNCH, JINHONG, etc (For Reference)

Hot Runner: YUDO, HASCO, M-H-R, etc (For Reference)

Main Software: AutoCAD, UG, CATIA, Solid works, etc

Product Name	adjustable and compact ABS plastic return air grille 150mm*300mm
Item code	ABSG001
Material	Plastic(ABS/HIPS)
Color	the frame is natural, the adaptoris black
Size	150mmx300mm, and different sizes available upon your requirements
FOB Price	3.05USD/pcs—3.2USD/pcs
Product Features	1. The grille is made out of two levels of deflection blade sets perpendicular to each other,vertical blade set at the front and horizontal blade set at the back.
	2. The deflection blade sets can be adjustable manually.
	3. The optional volume control damper can be added to the grille to form as register to further control the air volume.
	4. Removable core, four direction air flow , the windows are assembled with each frame, the windows can be removed.
	5. Easy mounting clip, easy to install and clean
	6. Less condensation than metal grilles
Package	the frames and the adaptors are separated in carton to save the room,the frames are packed 10pcs/carton, a poly bag for each frame.
Lead Time	7-15days
Payment Terms	L/C T/T
Delivery Terms	Delivering by sea, air or express agent according to customer's requirements
Application	sidewall outlet type air distribution

we also offer other types of air grilles with OEM&ODM design service.

CatchD20A

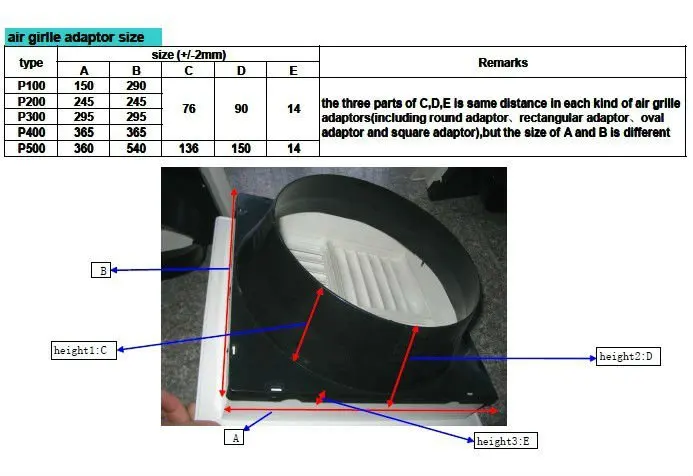

air grille adaptor size

011__ 004__ 015__ 001__ P100 P100 ivory white 0303 ivory white 0101
