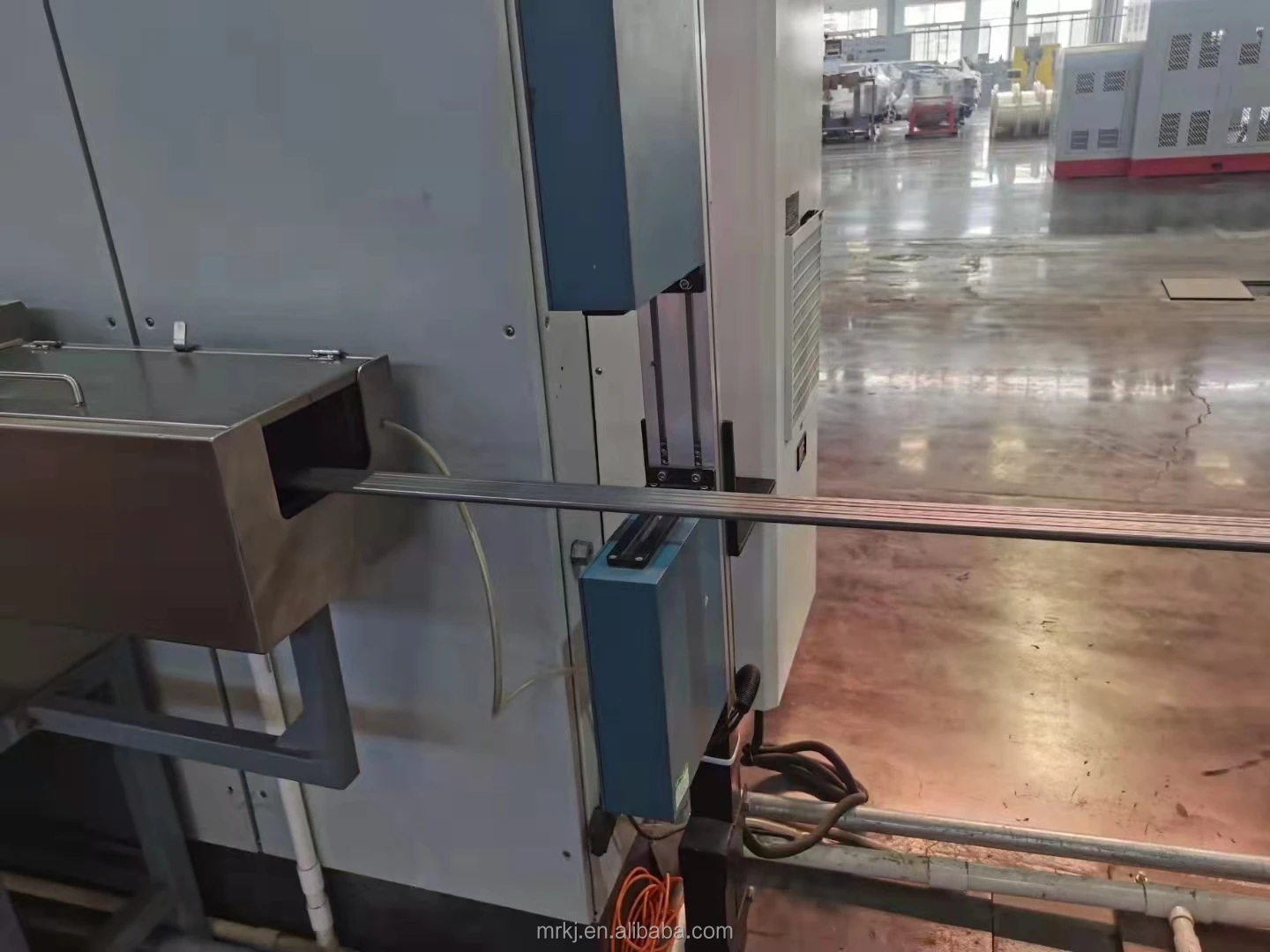

laser paper film thickness gauge

Product Overview

Description



thickness measuring gauge is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of thickness



Model     Measuring Range     Differentiation            Accuracy
LDM-25       0.2-20mm              0.001        ±0.02%×(Reading)±0.002mm
LDM-150     0.2-150mm            0.001     ±0.02%×(Reading)±0.005mm





The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15%    50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
External dimensions:

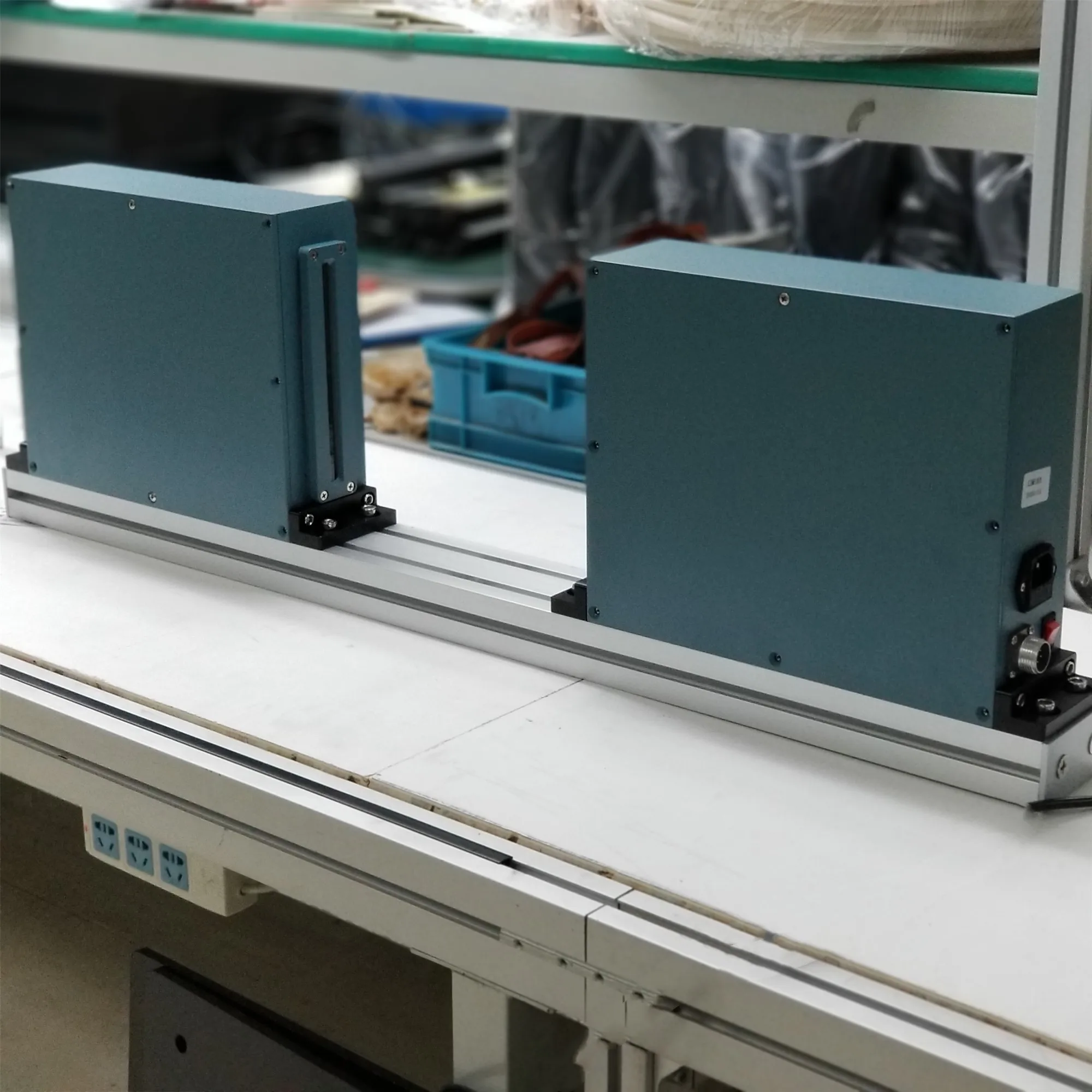

Dimensions: LDM-80/LDM-150 Measuring head: 910mm×80mm×292mm



The Device with the following Characteristics:
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.



Remote Display Controller (Model:DDC-6)
1. It be used to remote display and control.
2. It Can control the speed of DC motors, VVVF motor(extruder or the tractor).
3. It's suitbale for Laboratory use.
4. It will alarm,when the diameter go beyond the the set tolerance.
5. With RS485 It can connect to PLC industry controlling computer.
