Высокоточный контроль диаметра и Снятие мерок с 3d нити машина штрангпресса (модель: LDM 50)

Product Overview

Description

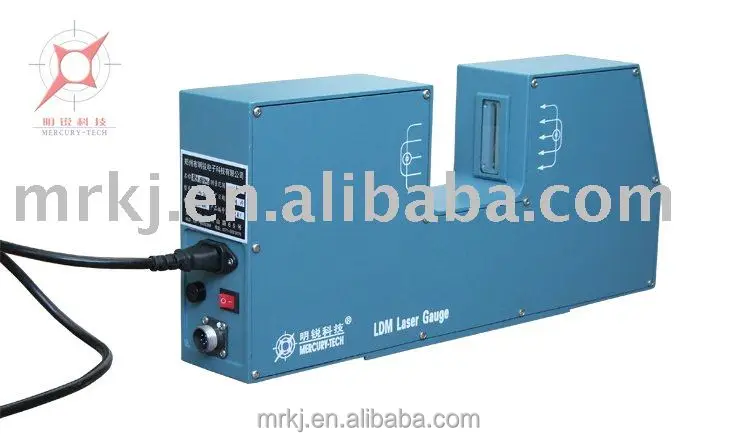

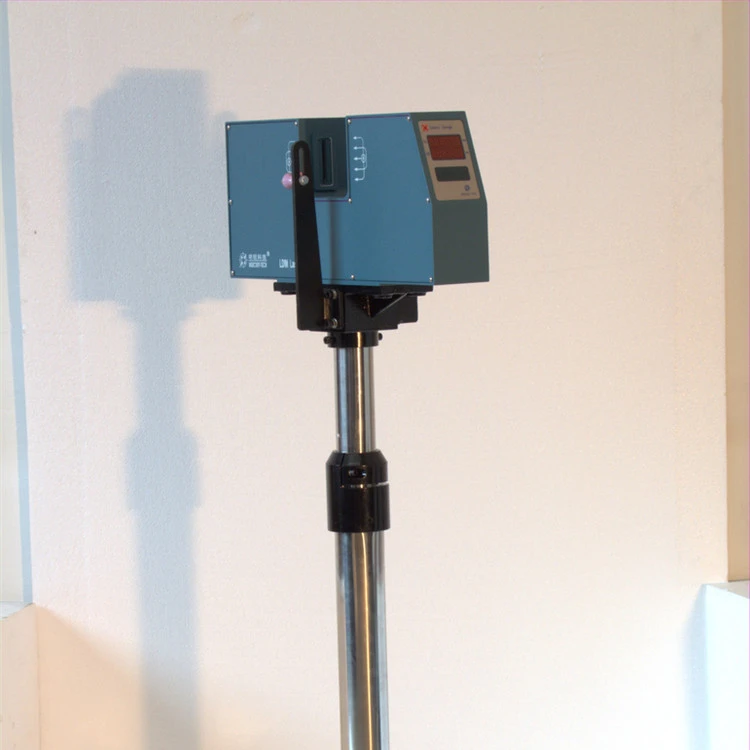

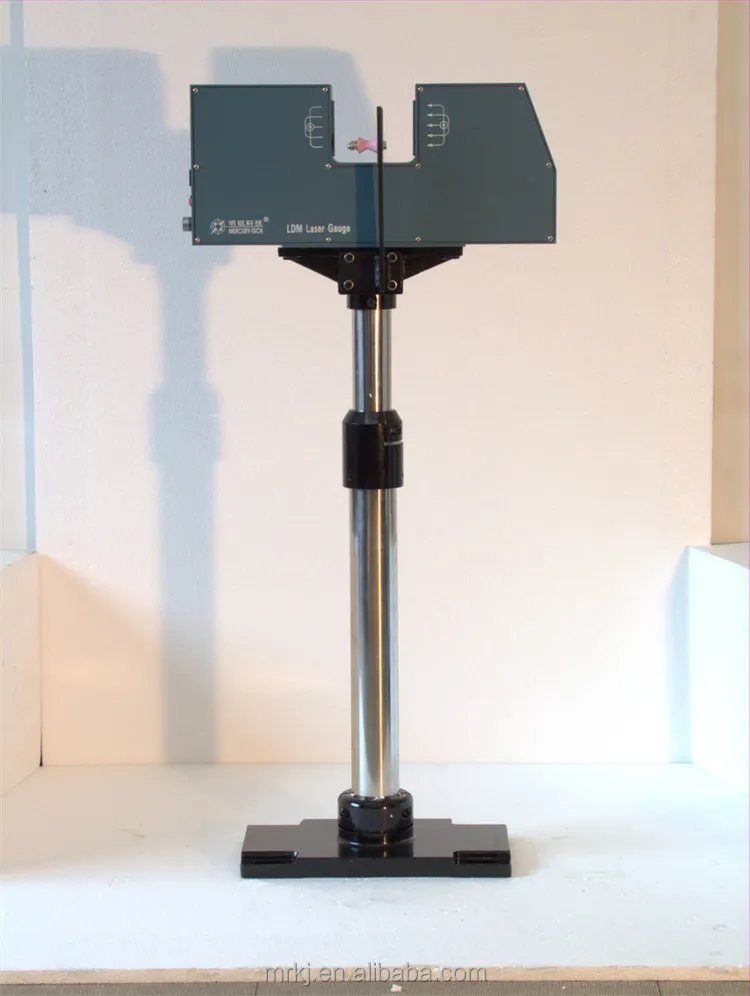

Pipe diameter measurement gauge is the high-accuracy diameter control system that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of  workpiece and size measurements.

1. Technical parameters



Model	LDM-25		LDM-50		LDM-100B	LDM-150
Measuring Range	0.2-20mm		0.2-45mm		0.2-95mm	0.2-145mm
Min Size	0.2mm		0.2mm		0.2mm	0.2mm
Max Size	20mm		45mm		95mm	145mm
Accuracy*	±0.001		±0.002		±0.002	±0.01
Repeatability**	0.5μm		0.5μm		0.5μm	1μm
Resolution	0.001mm		0.001mm		0.001mm	0.001mm
Dimension	48.5x20x8.5cm		48.5x20x8.5cm		62x25x6cm	92x29x9.5cm
Units of Measurement	mm		mm		mm	mm
Power	~220V±15%, 50-60HZ
Temperature	-10~40℃
Humidity	<85% RH
Gauge Head  Serial I/O	Standard: RS485  Options:RS232 / USB
Communication Protocol	Modbus/Profibus
Presets	Diameter, +Tol,-Tol, Alarm Setting
Transparent Measurement	Option	Option		Option		Option
Control Output
Serial I/O	RS485
Analogues Output	16 bit ±10V DC Output
Relay Output	2 Volt Free  (Status, Upper Tolerance, Lower Tolerance)







2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15%    50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30WExternal dimensions:
Dimensions: LDM-25/LDM-50 Measuring head: 461mm×80mm×200mm



3. The Device with the following Characteristics
i. Can be connected PLC, industrial computer.
ii. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
iii. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic

feedback control to control the tolerance, improve product quality, reducing

consumption.



4. Display Controller (Model:DDC-3, DDC-5)
i. It be used to remote display and control.
ii. Applicable to DC motors, VVVF motor.
iii.The controller can control the speed of extruder or the tractor according to the diameter tolerance.
Signal distance: More than 500m
Output voltage: ±10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions:164mm×85mm×280mm (Model:DDC-3)
                                 100mm×100mm×120mm (Model:DDC-5)
Installation hole size: 152mm×76mm (Model:DDC-3)
                                    90mm×90mm (Model:DDC-5)

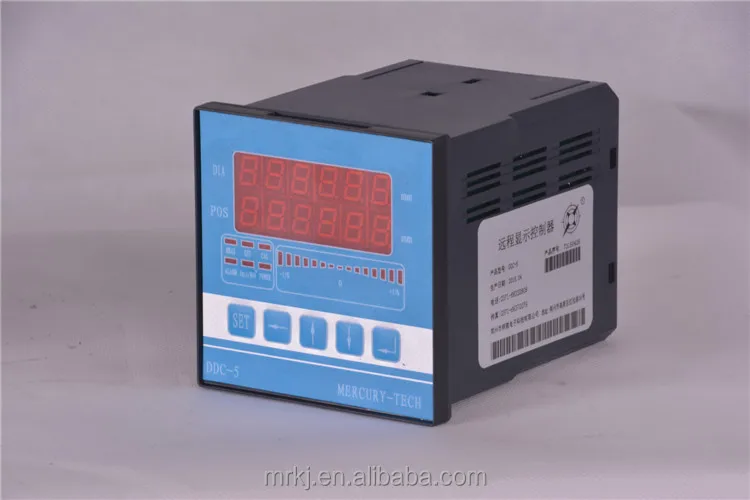

 Display Controller (Model: DDC-5)
