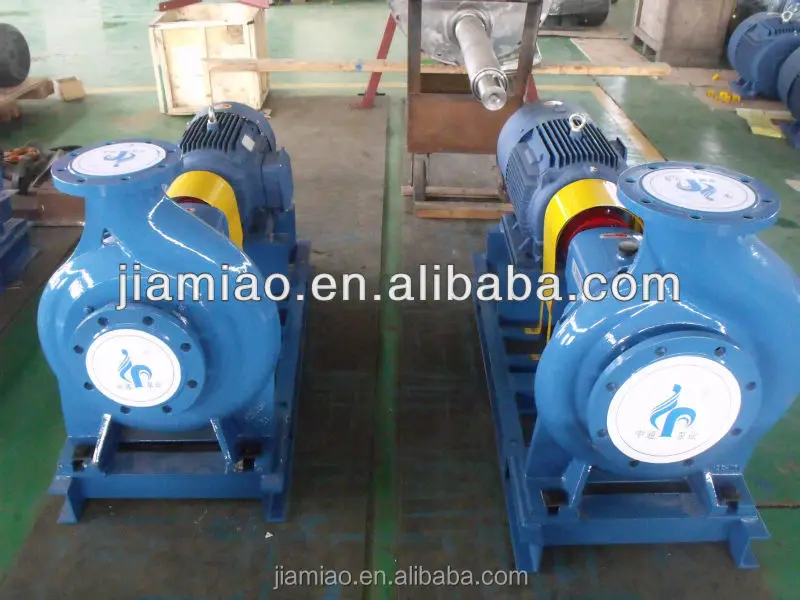

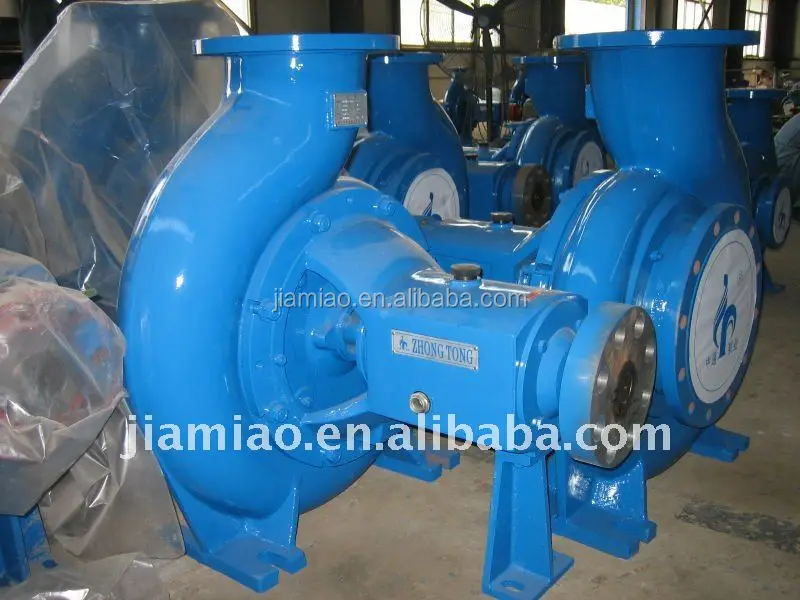

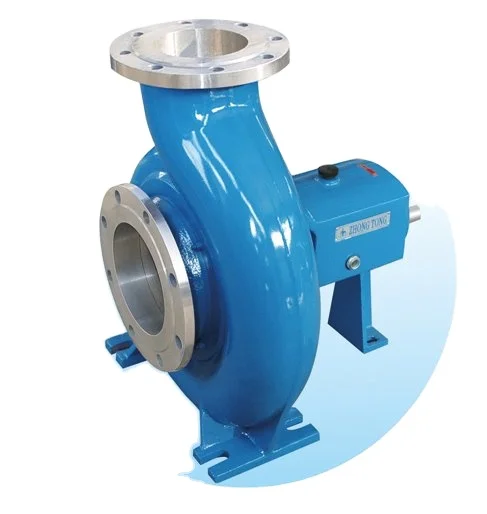

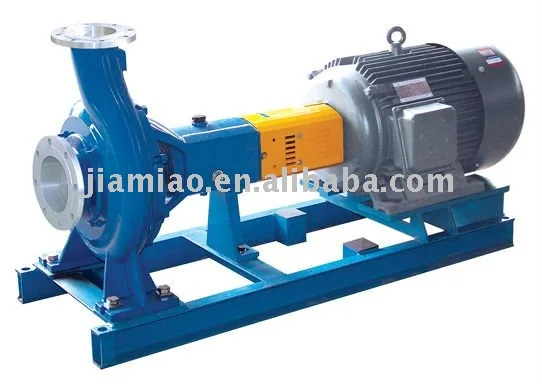

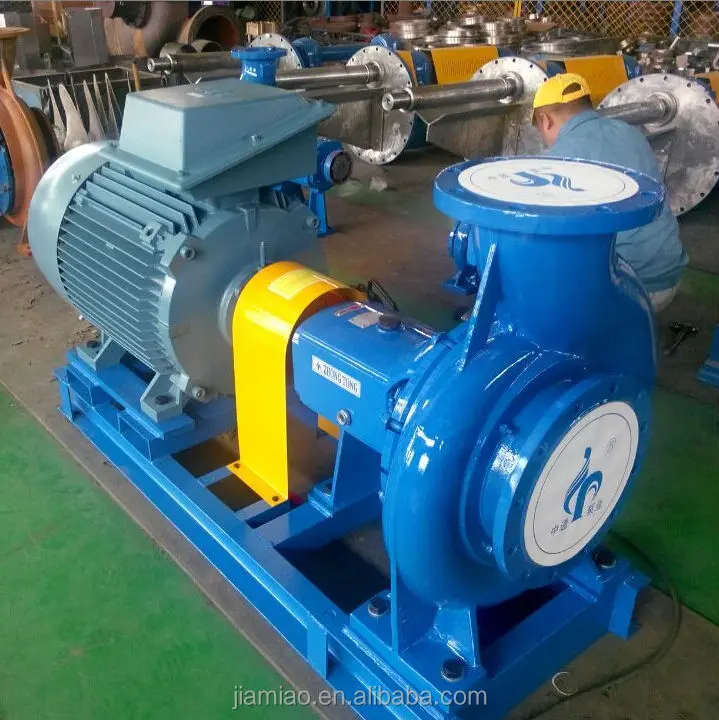

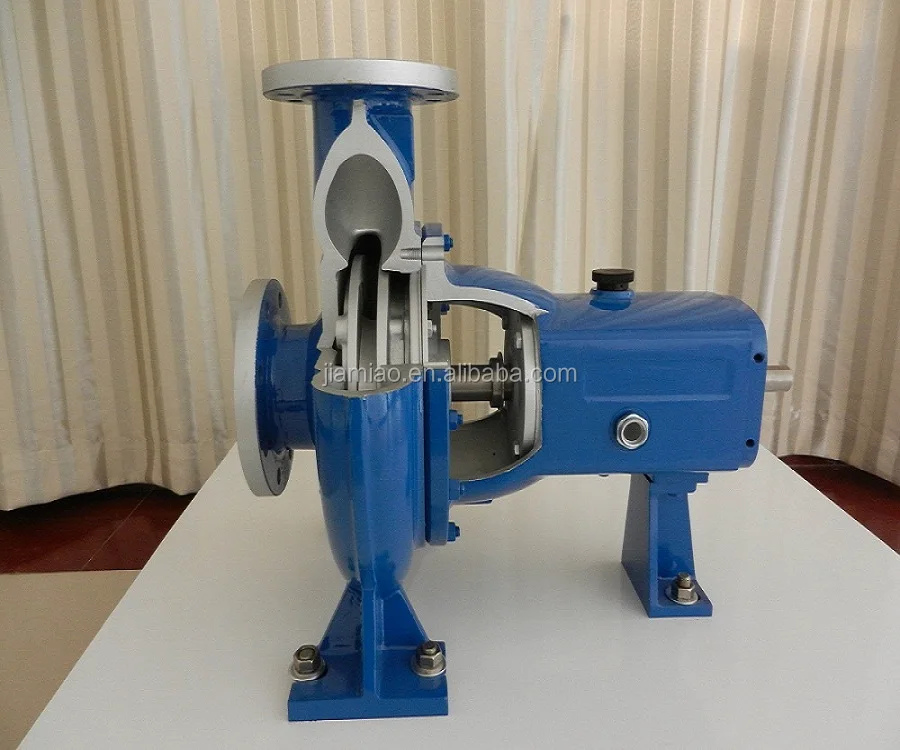

low price paper pulp Centrifugal pump for paper mill

Product Overview

Description

low price paper pulp Centrifugal pump for paper mill.

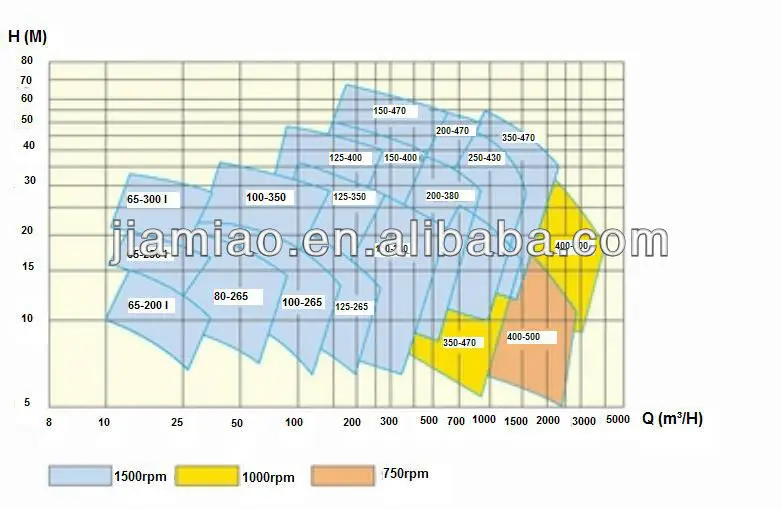

Performance Range:



Capacity:20-3000 m3./H
Heads:10-70m
Speed:980,1450,750,2900r/min
Steering:view fromthe entrance anti-clock

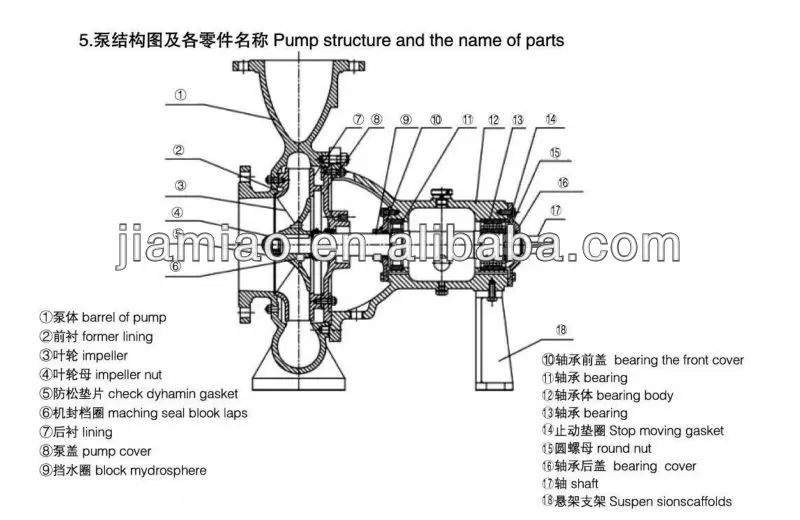

Structure and Design Feature:



1) Totally open impeller, high efficency, light in weight, small axial force, and the life the driving component.

2) It is easy to maintain and the chance for blocking is very little. And it can transmit media with a certain

    volume of gas.

3) The impeller was precision cast. tested with Class G6.3 dynamic balance, it can run smoothly.





Material List:



Material Code	(G)	(P)	(N)	(F)	(K)
Pump Case & Cover	Ductile Iron	Ductile Iron	Abrasion-Resistant Steel	SS304	SS316
Impeller	S304	Abrasion-Resistant Steel	Abrasion-Resistant Steel	Duplex SS	Duplex SS
Lining Board	Abrasion-Resistant Steel	Abrasion-Resistant Steel	Abrasion-Resistant Steel	SS304	SS316
Shaft	SS 3CR13	SS 3CR13	SS 3CR13	SS 3CR13	SS304
Shaft Sleeve	SS304	SS304	SS304	SS304	SS316
Bearing Body	Cast Iron	Cast Iron	Cast Iron	Cast Iron	Cast Iron

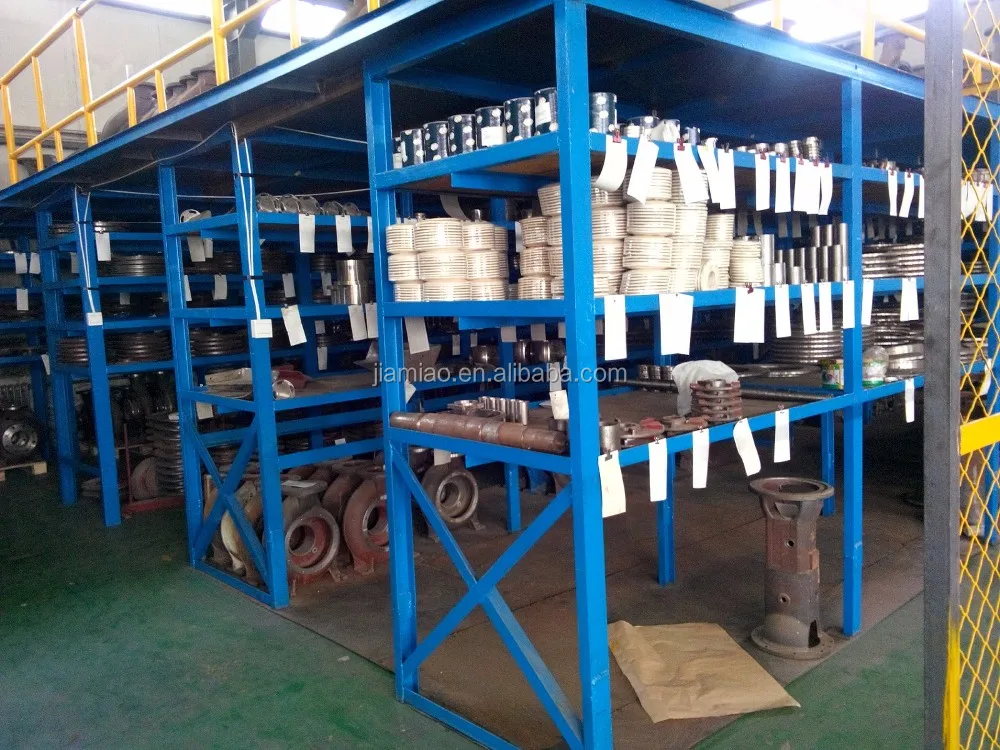

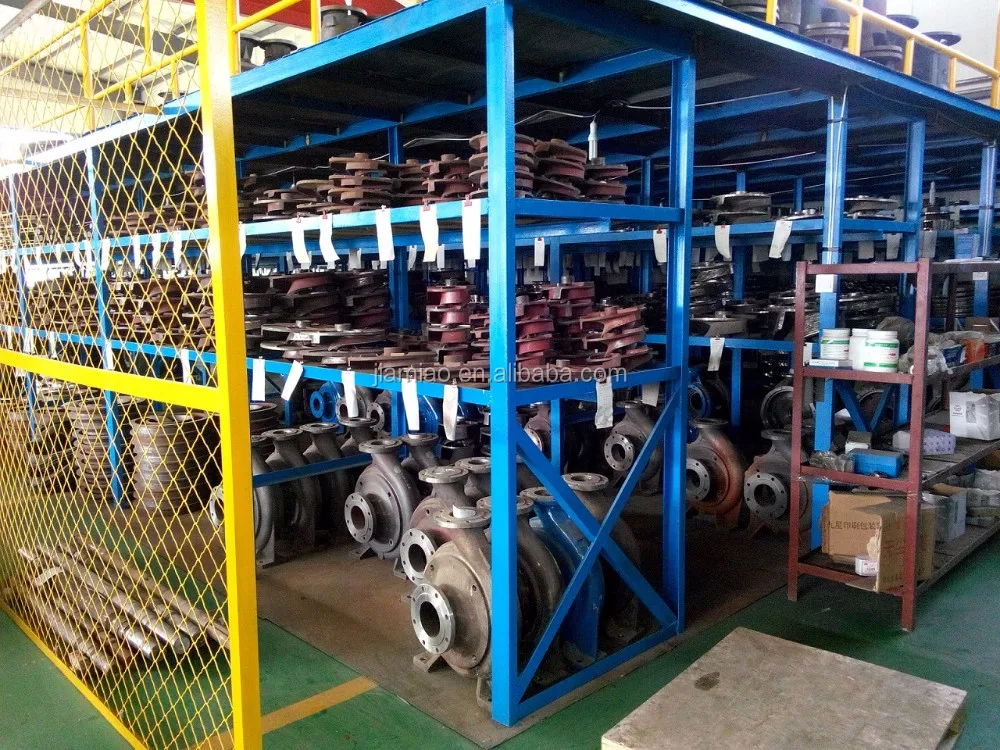

Pump Spare Parts Stock:





Packing & Delivery:





Our Services:

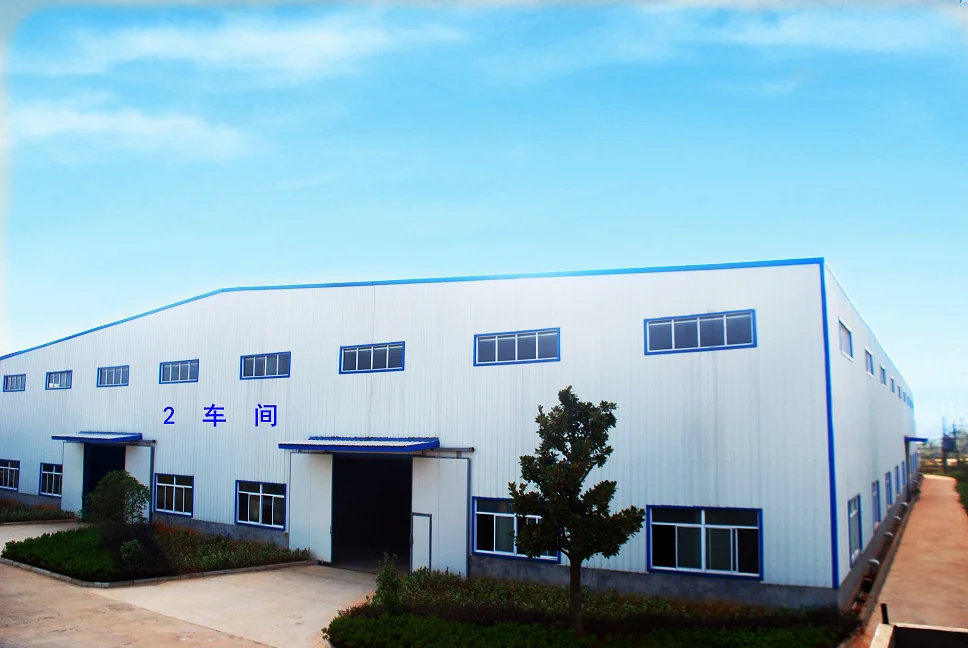

Company Information:



We are professional manufacturer of Pape Pulp Pump with many years experience.

Main produce and Provide low consistency(≤6%)Paper pulp pum, Low pulse Fan Pump and Pulp Chest Agitators for Paper mill, Sugar mills etc. Products have been exported to Southeast Asia, Europe, America, South America and other countries and regions. High quality and low price. Welcome new and old customers to inquire.Thanks!





FAQ:



Pump Exhibition:
