DVB T digital UHF VHF transmitter

Product Overview

Description

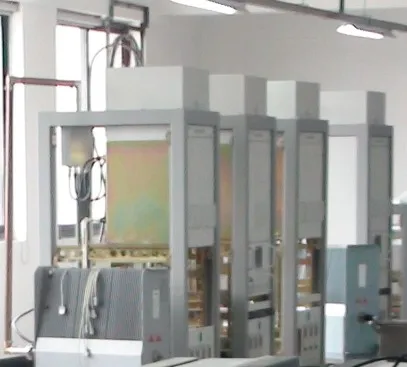

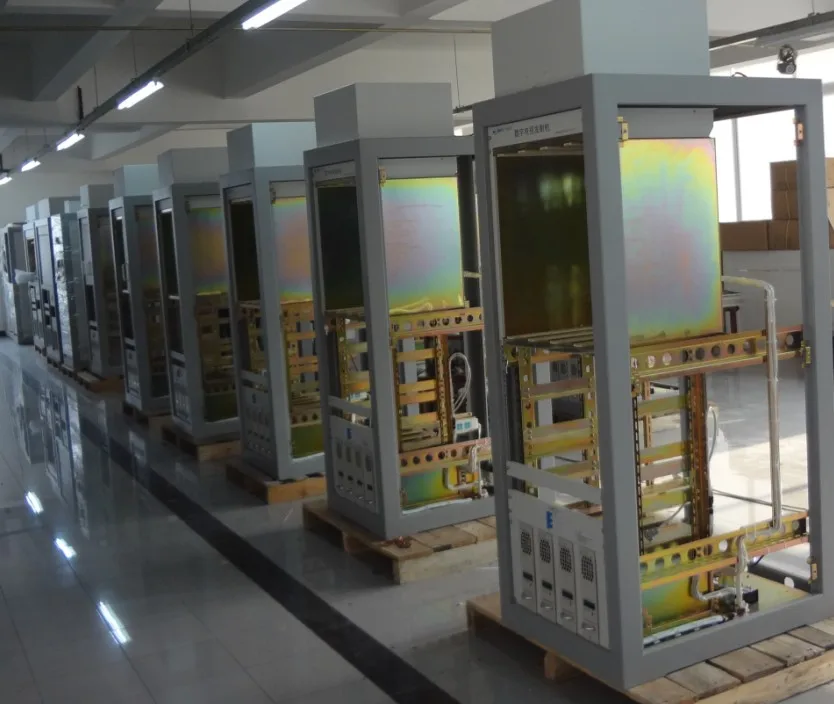

DVB-T digital UHF VHF transmitter

Outline



DUT-8313 is a professional DVB-T/T2 digital transmitter with 800W/1000W/1200W power optioanal. Its compact structure design has greatly saved space for your room.

The frequency range of DUT-8313 is from 470MHz~806MHz. This transmitter has a high linear and high reliability as it takes high gain and high linear LDMOS tube amplifier module. Furthermore, it supports AGC function to keep sustained power output.

Dexin is always ready to meet customer requirements by making it available to output signal carrier or multi carrier, adapt to signal channel and broadband transmission.



Features

Ø  Intelligent and modularized amplifier unit, takes high power gain and high linear

     LDMOS tube amplifier module design

Ø  Low power consumption and super linear design to improve the transmission power,

     and reduce the nonlinear distortion

Ø  Support AGC function with sustained power output to allow the transmitter a good stability and reliability

Ø  Support MFN and SFN system

Ø  Support fault diagnosis function

Ø  Full digital front panel control, easy operation.

Ø  LED on the door supporting alarm and signal monitor

Ø  Stabilized-power supply with wide range of voltage and high efficiency

Ø  Cooling system with low consumption and low noise

Ø  Multi lightning protection measures, good protection for whole equipment.

Ø  24-hour working unmanned, user friendly design

Ø  Easy to install, elegant appearance



Specifications

Input	System standard	DVB-T/T2
	frequency	470MHz~806MHz
	Input Level	-20 dBm±3dB (87dbuv ±3dB)
	Input reflection loss	≥15dB
	Input Interface	‘N’
Output	RF output power	800W/1000W/1200W optional
	Output frequency	470MHz~806MHz (For Single Channel: Every 8M available; For Broadband Channel: consecutive 60M available)
	Output impedance	50Ω
	frequency response	±0.5dB
	Shoulder level	≥36dB@central freqnencyIF±4.2MHz
	MER	≥33dB
	output reflection loss	≥20dB
	variation of output power	±0.25dB
	In-band stray	≤-60dBc
	Out-of-band suppression	≥65dBc
	Output interface	1-5/8
General Parameters	Working temperature	-20~+50℃
	Storage temperature	-30~+75℃
	Relatively humidity	<95% (25℃ no condensation)
	Cooling mode	inside cooling fan
	atm press	86~106kPa
	power supply	AC, 220V±10%/50Hz
	Machine room requirement	less dust, no shake
	Dimension(L×W×H)	850mm×600mm×1695mm

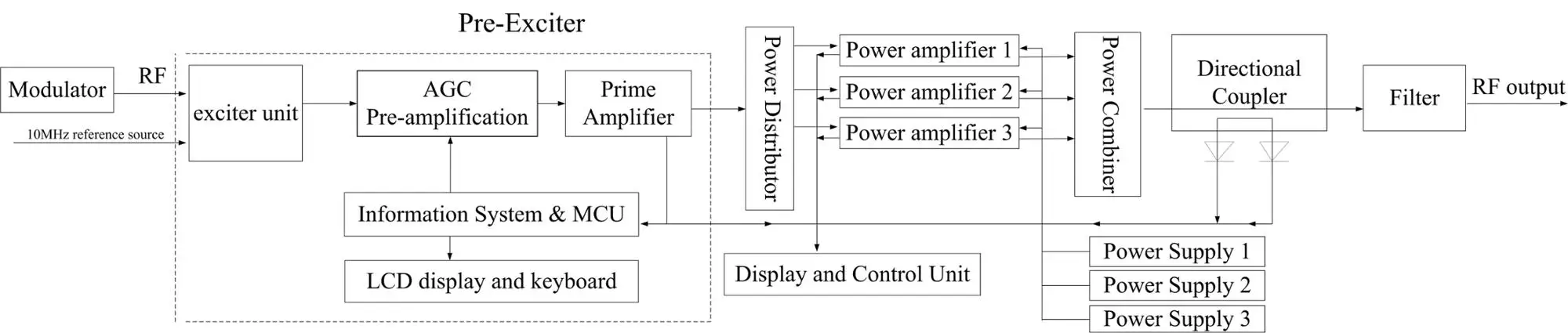

System Diagram



PS: This diagram is a reference for 800W and 1000W transmitter. For 1200W transmitter, there are 4 power amplifiers and 4 power supplier included.
