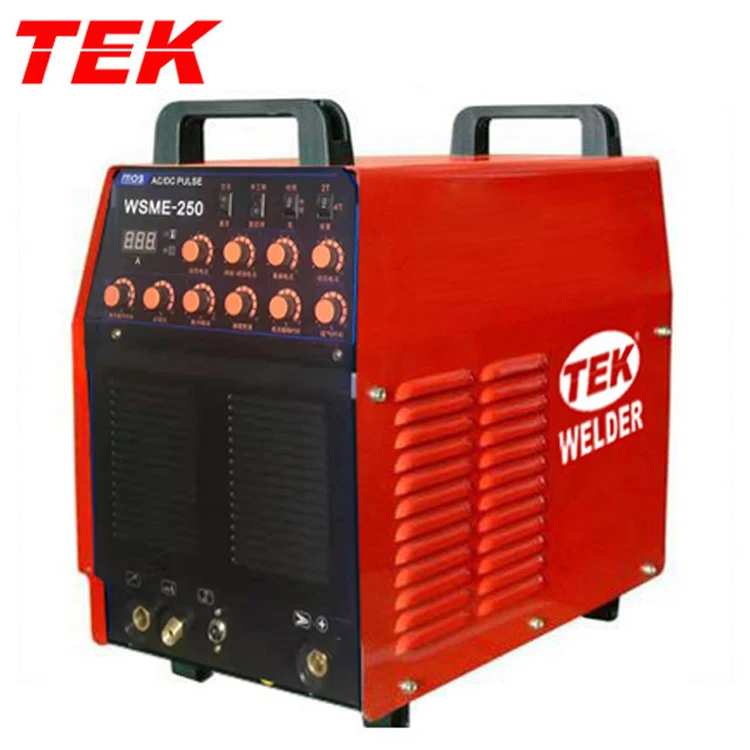

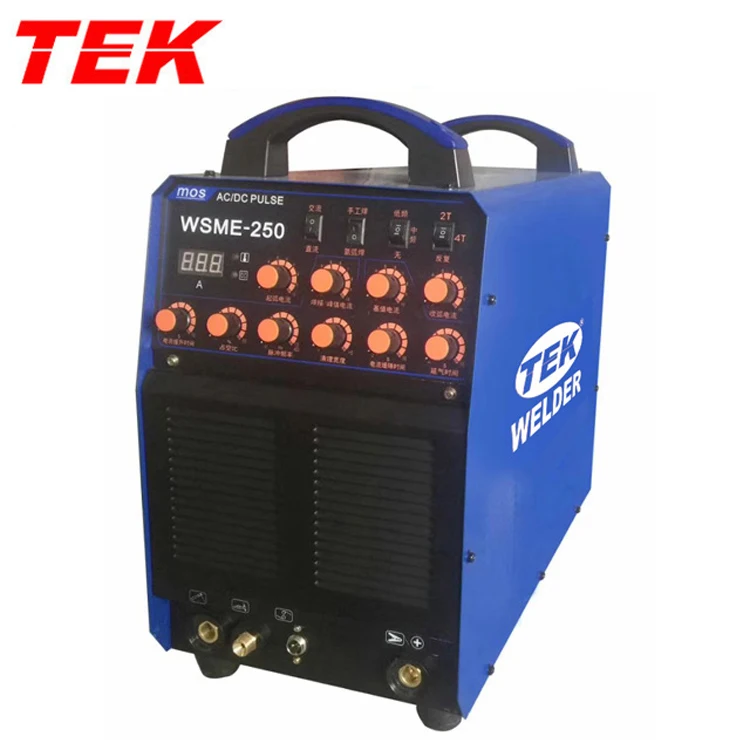

WSEM 250P WSME 250P WSM250 WSM 250P Pulse TIG ARC Multifunction Argon Shield Welding Machine OEM
- Category: >>>
- Supplier: Tek E-Industry Grp Co. Ltd.
Share on (441935123):
Product Overview
Description
WSEM-250P WSME-250P WSM250 WSM-250P Pulse TIG ARC Multifunction Argon Shield Welding Machine OEM
1. Concentrated heat, easy to fill in the wire.
2. Foot pedal controller, adjustabel current
3. Compact volume, light in weight and low noise.
4. DC function suitable for stainless steel, alloy steel, carbon steel, copper, and other color metal , AC function suitable for aluminum and aluminum alloy.
TECHNICAL SPECIFICATIONS |
|
Model | WSM-250P Pulse |
Input power voltage Frequency | AC.(Single Phase) 220V-240V ±15% 50Hz~60Hz |
Rated input power | 5.0 KVA |
No-load voltage | 50 V |
Output current range | 10-250A |
Rated output voltage | 18V |
Duty cycle | 60% |
No-load power | 50W |
Arc-sarting | HF |
Efficiency | 85% |
Power factor | 0.93 |
Insulation class | F |
Weight | 20 Kg |
Overall dimension | 432x205x355mm |
Protection class of case | IP21 |
Postflow time | 5S |
Pulse freqency | MH50-200Hz LH0.5-2Hz |
Up-slope time |
|
Down-slope time | 0.5S |
Basic current |
|
Arc-starting |
|
Collect arc-starting |
|
Clean width |
|
Welding thickness | 0.3-8mm |
