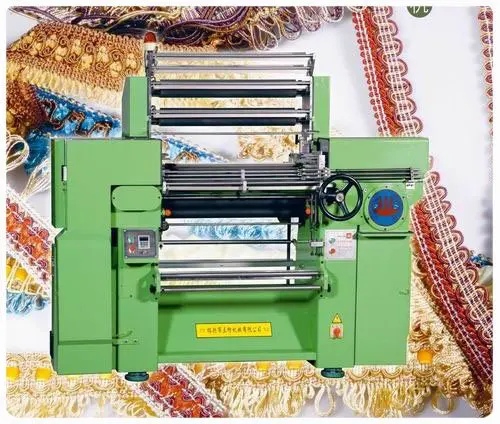

SGD 950 Tassel Fringe Machine

Product Overview

Description







Our high speed lace edge  crochet machine adopt two groups of cam gear, it make the machine can produce various kinds of laces.with special weft bars driver, the machine can manufacture wide lace very easy.

SGD-950 lace edge crochet machine adopt frequency inverter to adjust the speed, so the machine can change corresponding speeds according to different raw materials.

Automatic Lubrication for link chain allows the machine to run quietly and smoothly at high speeds.
SGD-950 is equiped with a pair of front blocker and a pair of back blocker, and a pair of crossing device, Arm width device. Cubic Device can be optioned.

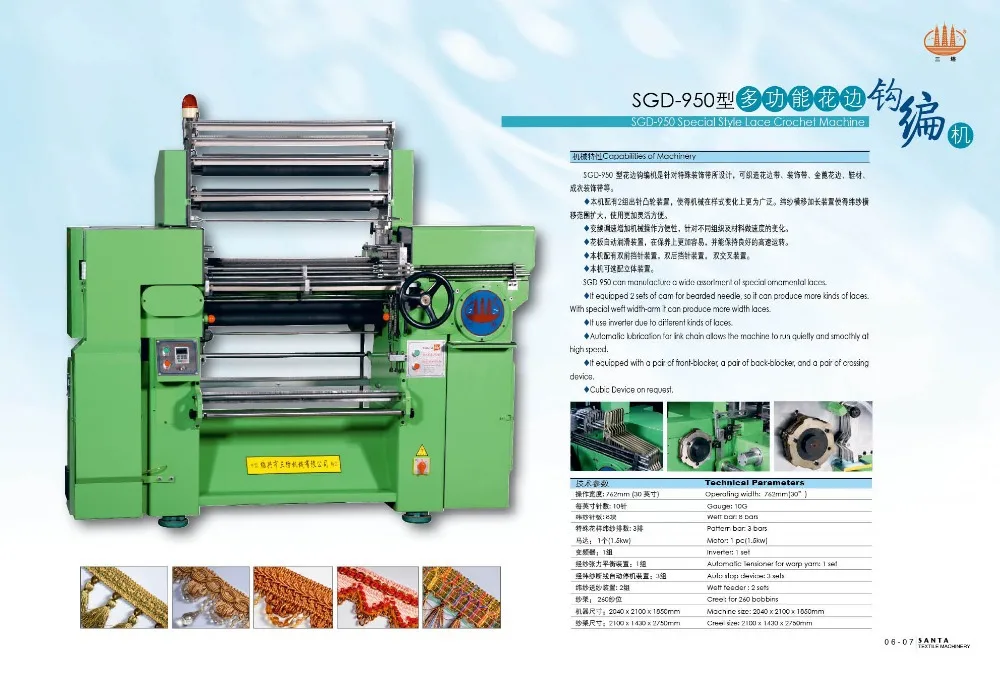

Technical parameter

Operational breadth: 762mm (30 inches)

Gauge Needles per inch: 10G

Weft Bar: 8 bars

Special Pattern bar: 3 bars

Motor: 1 unit

Inverter: 1 set

Automatic tensioner for warp yarns: 1 set

Auto stop motion system: 1 set

weft feeder systerm: 2 sets

Creel: 260 bobbins

Machine size: 2000 x 800 x 2150 mm

Creel size: 2080 x 2800 x 1150 mm
