Semi Automatic Plastic Bottle Blowing Machine / Stretch Blower (442120785)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


bottle blowing machinery

Semi-Automatic Plastic Beverage Bottle Blowing Machinery / Stretch Blower



Product Description



It is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.

The machine is small with low investment, easy and safe to operate .



Function:

  1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.

  2. Pneumatic elements from FESTO (German) and SMC (Japan)

  3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.

  4. Malfunction alert and diagnostic units allow easy maintenance.

  5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle,  cosmetics bottles etc..

  6. Oven can be made according the different preform requirements of customers



Main Parameters:

Container

Product material

PET

Volume

0.1L-2L

Theoretical output

1200-1600PCS/H

Preform length

15mm-350mm

Preform inner diameter

φ5mm-38mm

Moulding

Max.mould plate Dimenstion(L x W)

350x380mm

Max.mould thickness

180mm

Clamping force

45KN

Mould opening stroke

160mm

Machine size and weight

Main machine (L x W x H)

160x60x161KM

Main machine weight

500Kg

Heater (L x W x H)

187x63x145KM

Heater weight

250Kg

Power

17.5kw

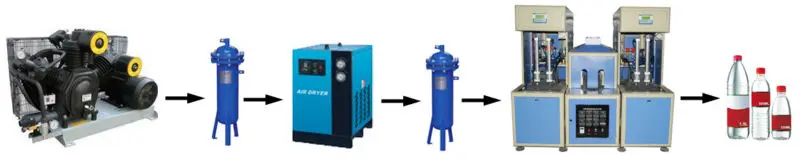

Flow chart :

blow fl.jpg

  HP air compressor       Air filter         Air dryer           Air filter       Bottle blowing machine  PET bottle






Certifications
Packaging & Shipping

--_02

--_03

Our Services

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.



The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.



Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.



After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.



Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.

 If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.

Company Information

Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection   moulding machine and spare parts of filling line.

Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.



aO

Our Factory


Our production workshop

g


Our workers are working

   .jpg

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !



Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.



Q4: How can I install my machine when it arrives?

A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.



Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
