Hydraulic Double Heads Seamless High Frequency Welding Machine of Shoe Upper Insole_EVA_TPU Badge Patch Embossing HF/RF Welder
- Category: >>>
- Supplier: Shenzhen Keepleader Machinery Co. Ltd.
Share on (442200211):
Product Overview
Description

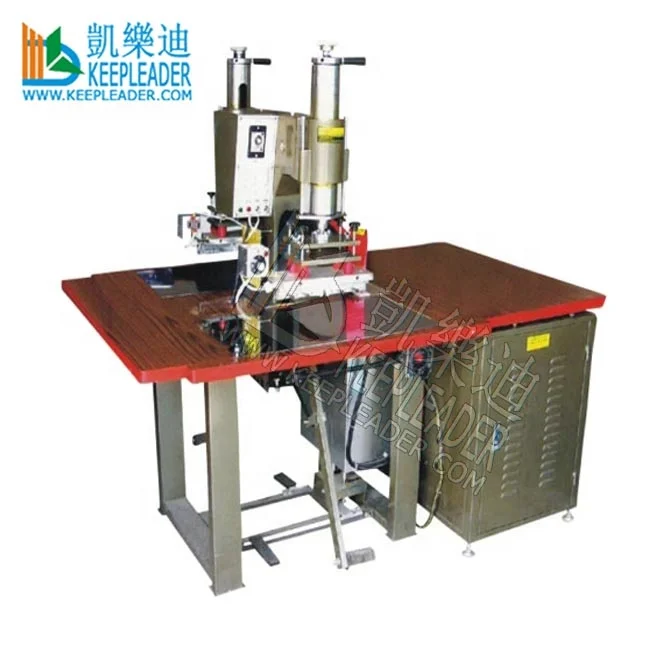

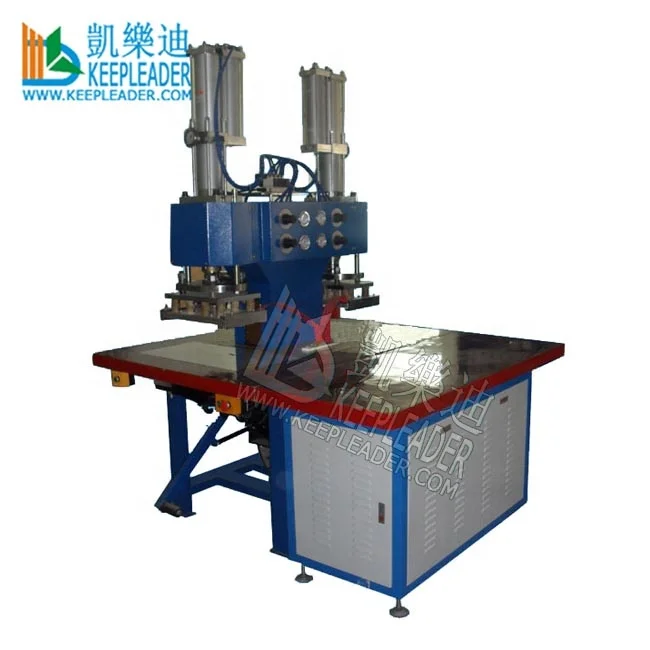

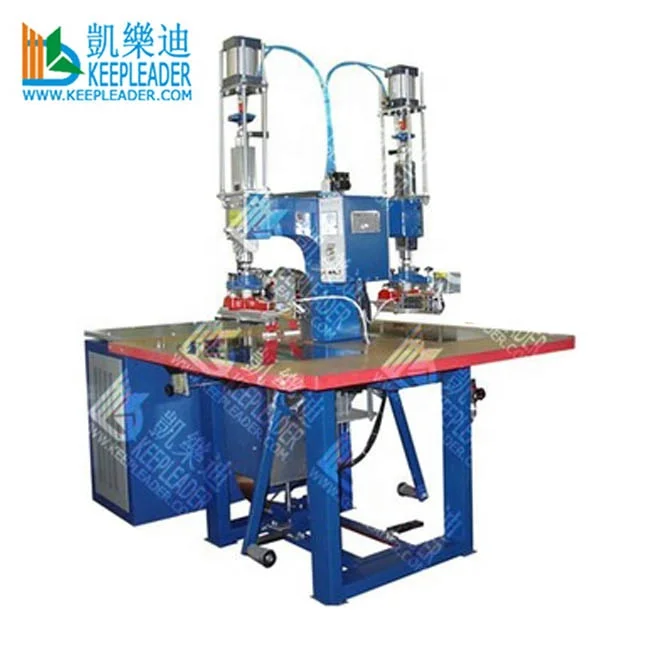

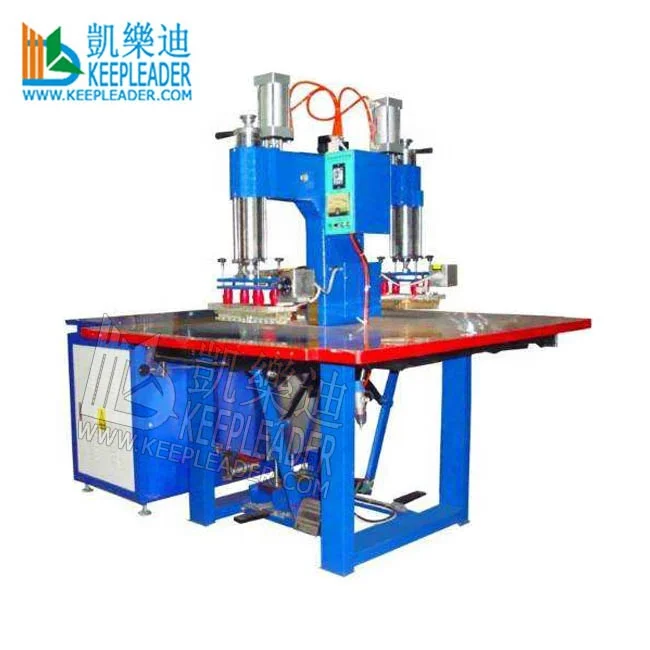

Hydraulic Double Heads Seamless High Frequency Welding Machine
Hydraulic Double Heads Seamless High Frequency Welding Machine assorts as universal model of High frequency welding machine, that has dual heads of alternated working, because of pedal elbow actuator trigger the pressure and high frequency oscillation, the operator can sit in front of console, which assists on alignment and alternation, particularly for complex geometry and three-dimensional construction, Hydraulic Double Heads Seamless High Frequency Welding Machine uses high frequency radio waves to heat the plastic surface of two different items as they face one another, this heat reaches the point where the plastic surface begin to melt, and the two surface or materials blend together, once the radio waves stop and plastic tool down, the two different materials remain fused together, bonded now as one item
Product Description
Hydraulic Double Heads Seamless High Frequency Welding Machine
Mainly application | |||||
Hydraulic Double Heads Seamless High Frequency Welding Machine Applied for high frequency cutting and welding of APET, PET, PP, blister packaging of toothbrush, and leather embossing | |||||
Character | |||||
High Q value oscillation tube The high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. European-model high frequency vibration barrel, more reliable and stable in output Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Over current protection circuit to avoid burning the oscillation tube Power ranges 5kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Giving pressure by level elbow joint, which can save the strength Stroke distance and horizontal of electrode are adjustable One oscillation vibration system control double working position Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components With adjustable cutting pressure about 1-5ton | |||||
Technique specifications | |||||
Model | KLR-5000TAY | KLR-8000TAY | KLR-10KWY | ||
Power | 8000W | 8000W | 8000W | ||
Voltage | 220V/380V 50/60Hz | ||||
Frequency | 27.12MHz | 27.12MHz | |||
Input power | 9KVA | 15KVA | |||
Rectifier | SILICON DIODE | ||||
Oscillation tube | 7T85RB | 7T69RB | E3069 | ||
Max pressure | 3000/5000KG | ||||
The gap of electrode | 100~150MM | ||||
The moving active horn | 60MM | ||||
upper electrode | 200*300mm | 300*400mm | 350*450mm | ||
lower electrode | 200*300mm | 300*400mm | 350*450mm | ||
temperature | 30 up to200 Adjustable | ||||
Welding time | 0 up to 10S Adjustable | ||||
Way of pressure | oil pressure | ||||
Productivity | 3000tims/8h | ||||
Net weight | 400kg | 450kg | 480kg | ||
Overall dimension | 1800*1200*2000 | 1900*1300*2000 | 2000*1400*2200 | ||
Standard equipment:
Name | Origin | Brand |
Air driven components | Taiwan | Airtac |
AC contactor | Korean | LG |
Relay | Japan | Omron |
Electron Tube | Japan | Toshiba |
Time controller | Taiwan | CKC |
MFR: KEEPLEADER™ have modified and designed Hydraulic Double Heads Seamless High Frequency Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

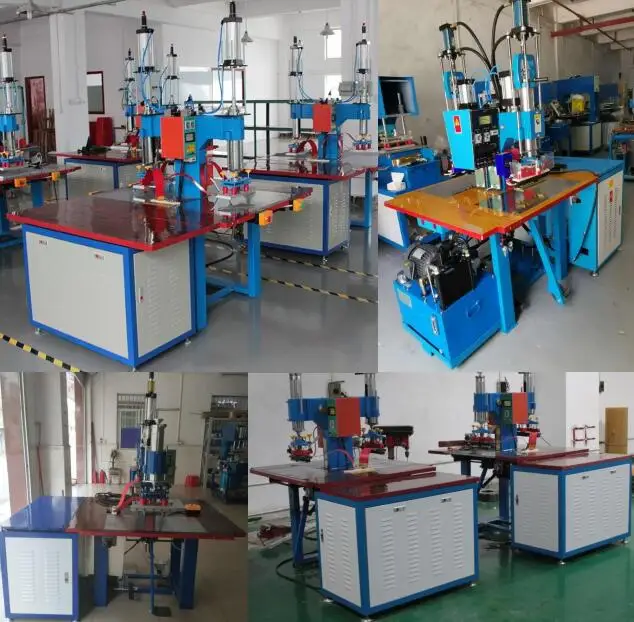

Detailed Images
Hydraulic Double Heads Seamless High Frequency Welding Machine gains prevalent gratification because of its salient characters, such as there are two tables for two operators respectively to increase the efficient, convenient alignment and easy for operators to alternate products; designed with ergonomics that can reduce physical fatigue when long-term welding operation; it works by high frequency dielectric with high welding quality; high frequency output is stable and weld smoothly; the electronic components are renowned brands, that is convenient replacement and reliable longevity; it is equipped with ARC suppressor to protect molds

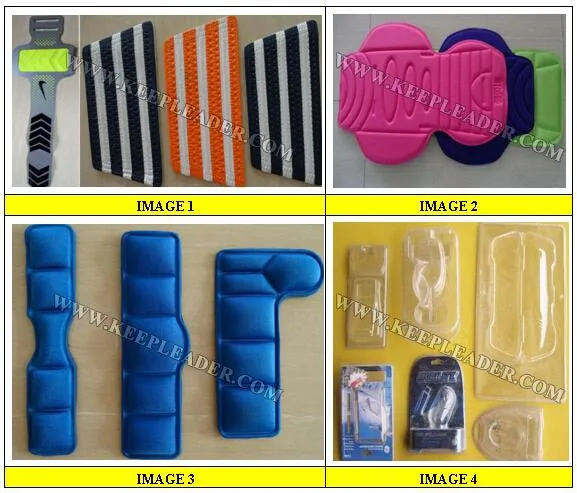

Product Uses
Hydraulic Double Heads Seamless High Frequency Welding Machine share the same high frequency oscillation technique of melting ,pattern forming and tear-seal cutting in plastic material treatment, such as PVC, PU, TPU, PEVA, PETG all can be processed in industrial production of sealing in making foot wears, sticking label, rain coat, rain-canvas, umbrella, special hand cover, vacuum packing, travelling bag, stationary, name plate, inflatable toys, cushion for vehicle and motorcycle, upholstery, interior decoration of automobile and other more flexible products made of fabric and plastic cloth
Our Services
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
After-Sales Service
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram if in need
06:Hydraulic Double Heads Seamless High Frequency Welding Machine has user manual and tutorial video
Packaging & Shipping
Hydraulic Double Heads Seamless High Frequency Welding Machine is packed in plywood case for safe transportation
Contact Us
Hydraulic Double Heads Seamless High Frequency Welding Machine, If you are sourcing high quality high frequency welding machine for your productive seam sealing, fabric embossing and tear-seal cutting, our PVC Sheet HF Welder Double Heads High Frequency Welding Machine can satisfy your wide range production, that is universal HF welder, and used for complex geometry products of sealing, embossing, tear-seal cutting and stamping, keepleader, we are also passionate about providing you with the very finest customer service, doing everything from answering your question to helping you pick out the perfect material to user, after browse the details of our Hydraulic Double Heads Seamless High Frequency Welding Machine, you still cannot find your concerns whatever dimensional gratification or machine’s configuration, please contact us, we will be happy to help you find the right high frequency welding machine, either or work out a reliable solution at affordable for you
