Tatung Monitor Replacement, RGB sync To VGA Converter

Product Overview

Description

Industrial rgb/mda/cga/ega to vga signal converter gbs 8219 with good quality

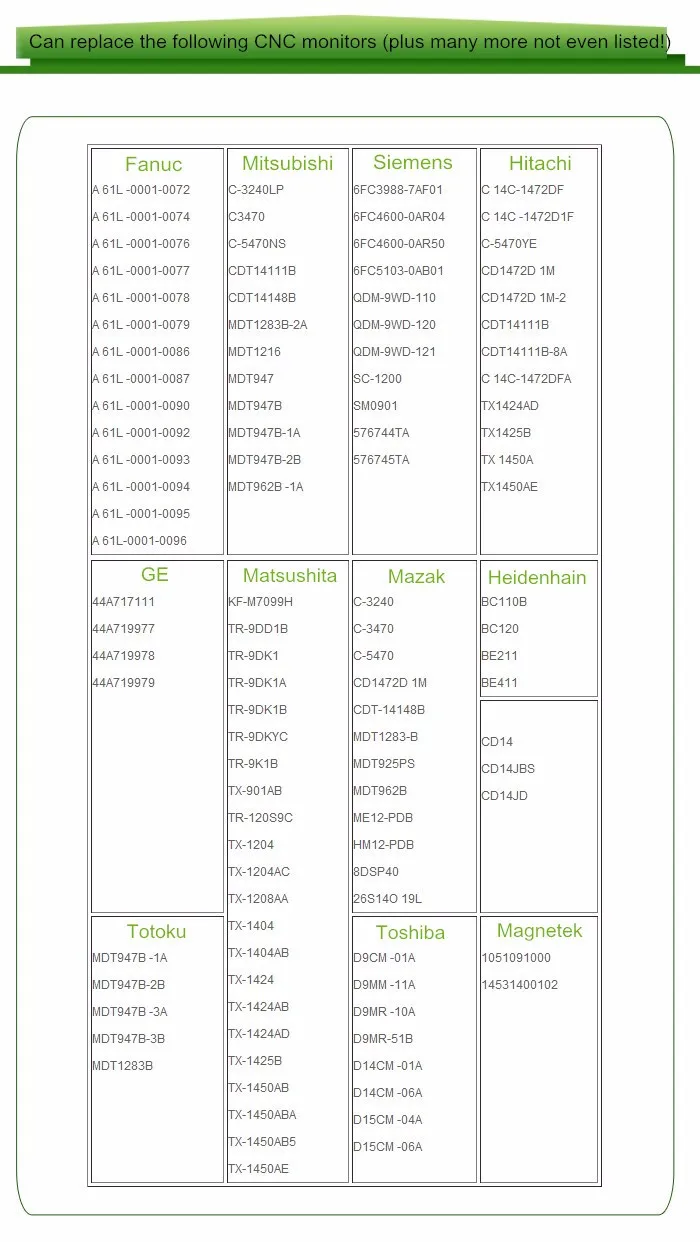

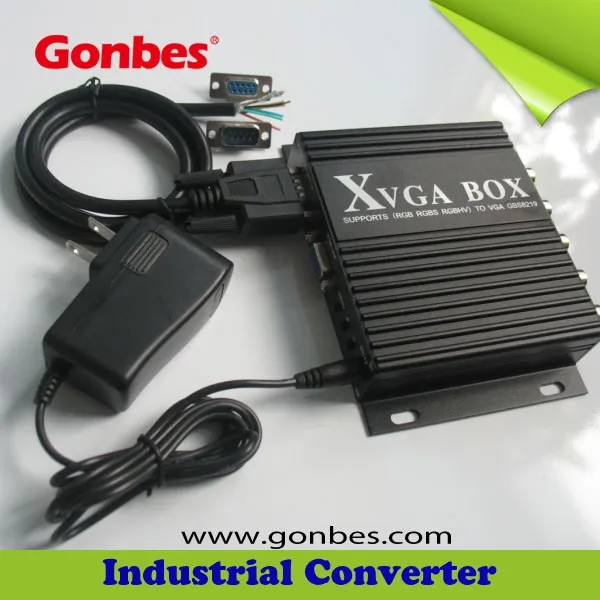

XVGA BOX GBS-8219, Old CRT Replacement for Fanuc, Mitsubishi, SIEMENS, Hitachi, Toshiba, GE, Matsushita, Heidenhain, Mazak, Tatung, Totoku, Magnetek, KEM, KRISTEL, DATA RAY, NUM, SHARP, YASKAWA...

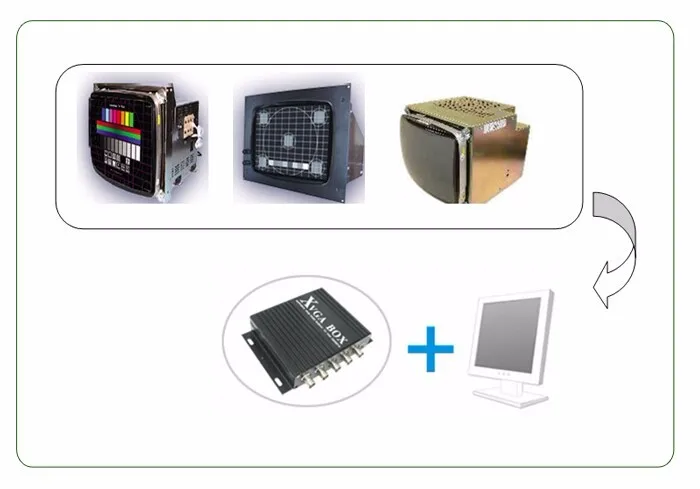

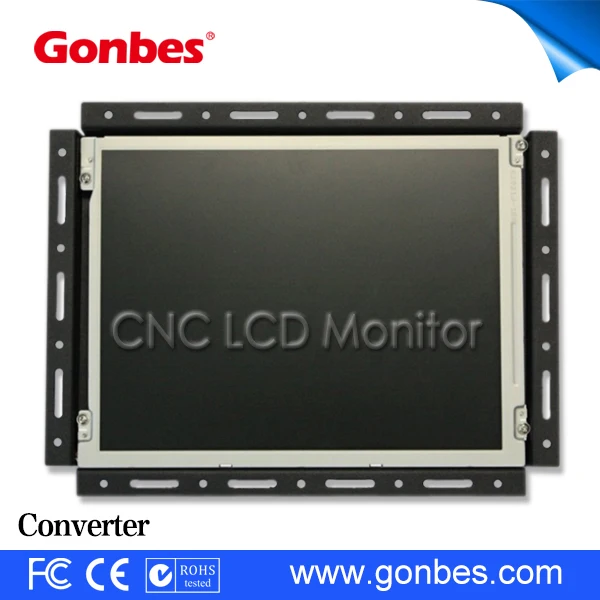

The replacement is: GBS-8219 + LCDs = old CNC CRT monitor









Introduce:

Based on the GBS 8218(XRGB BOX), newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb,MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display, Specialized Display of imported PSP, Bowling and other recreational facilities, etc.

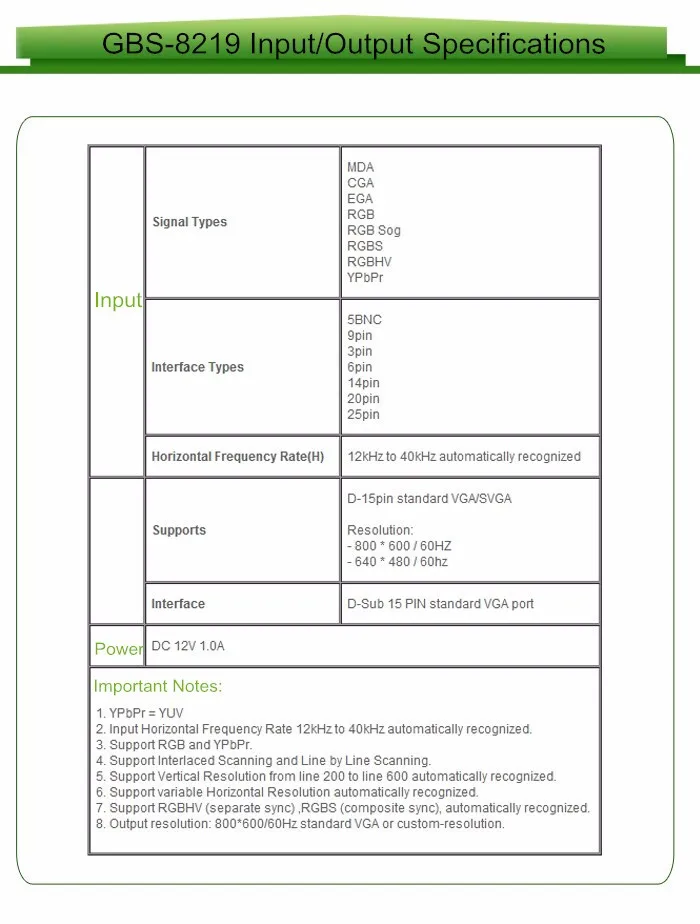

- Feature specifications





Note:

1. YPbPr = YUV

2. Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.

3. Support RGB and YPbPr

4. Support Interlaced Scanning and Line by Line Scanning.

5. Support Vertical Resolution from line200 to line 600 automatically recognized.

6.Support variable Horizontal Resolution automatically recognized.

7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized

8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

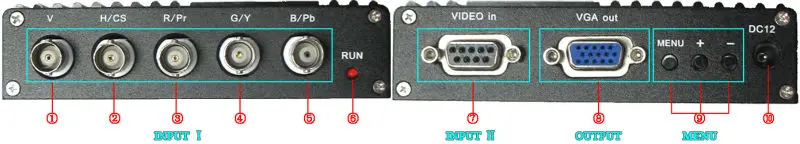

3. Interface Specification







Item	Spec.	Remarks

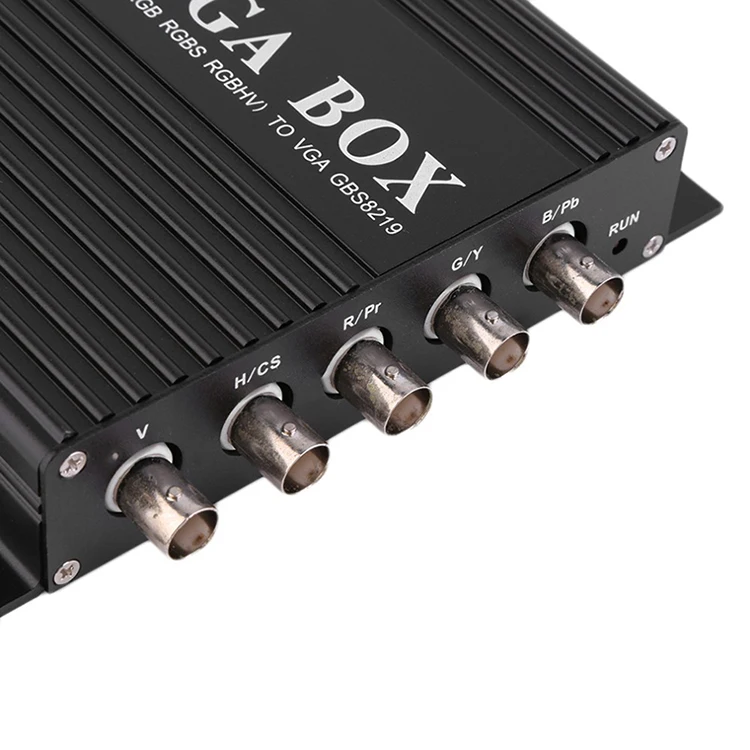

V	To connect V interface of the input device	Input Channel Ⅰ
H/CS	To connect H(CS) interface of the input device
R/Pr	Red signal input/ Pr signal input
G/Y	Green signal input/ YPBPR -Y signal input
B/Pb	Blue Signal input/YPBPR -Pb signal input
RUN	Running Status Indicator

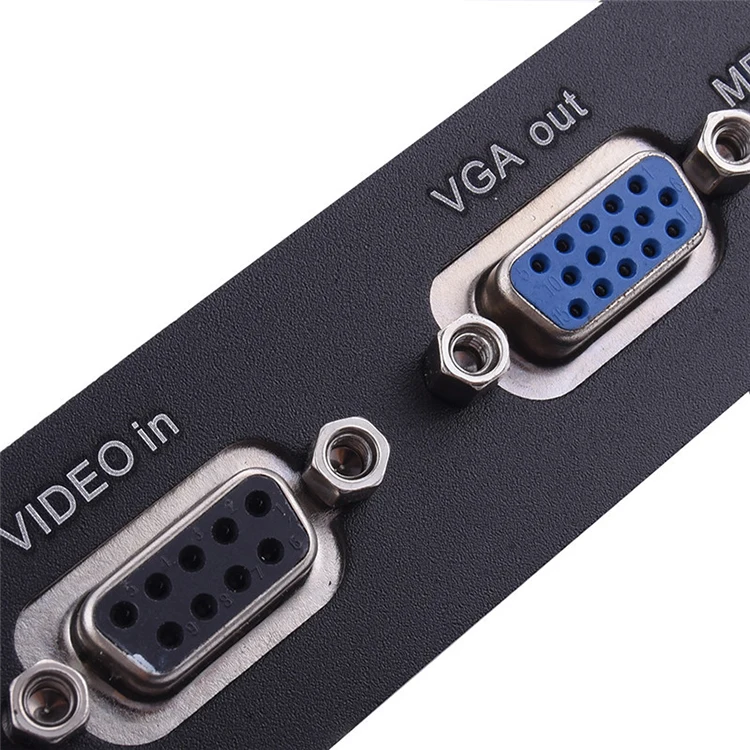

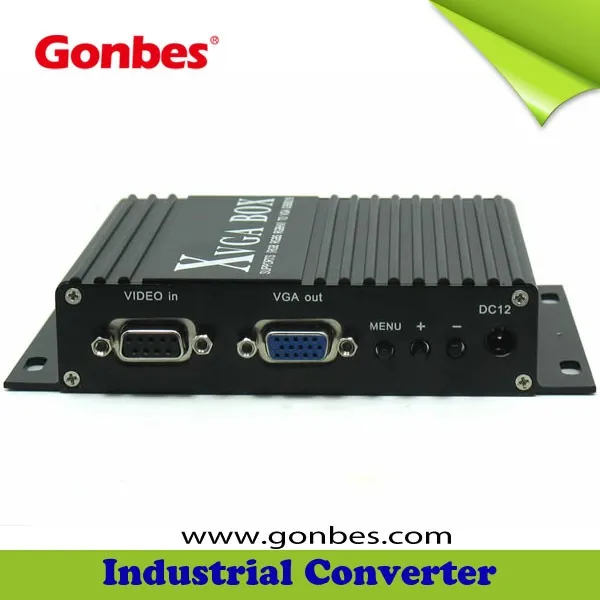

VIDEO in	To connect 9-pin interface of the input device	Input Channel Ⅱ

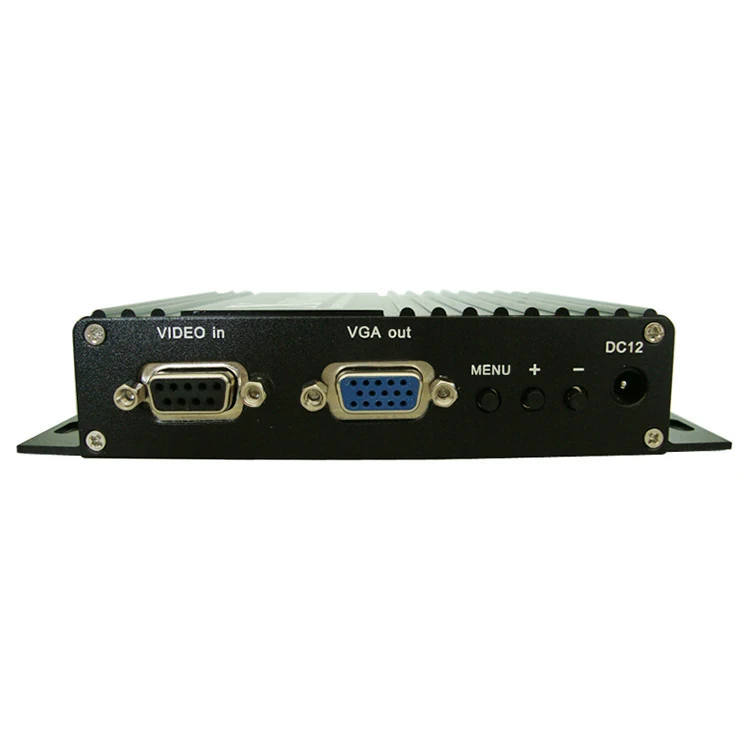

VGA out	Standard sub-15p VGA female interface	VGA Output
MENU	Use to adjust screen /programming

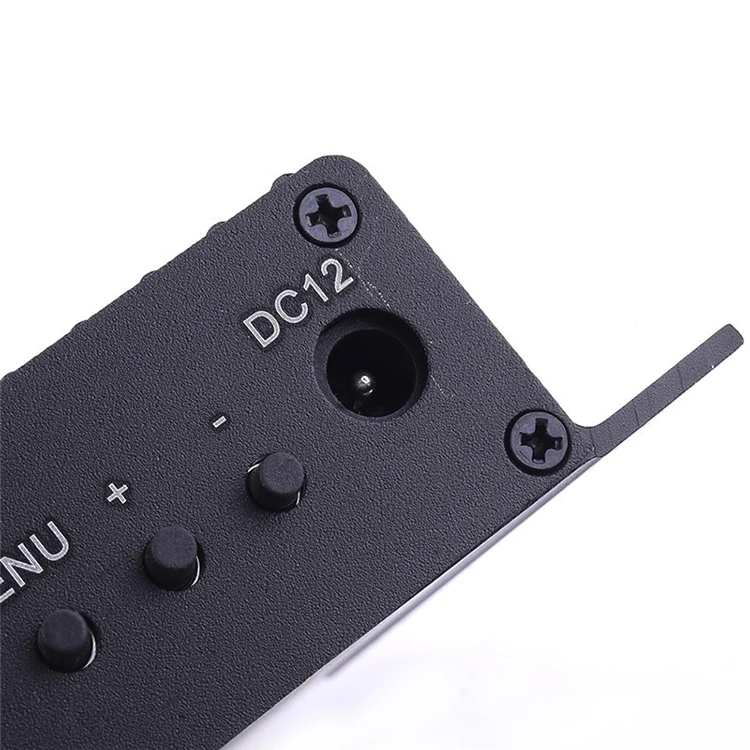

DC12	Power input DC12V, 1A

Note: Input Channel Ⅰ, Input Channel Ⅱ, you can choose one of them





4. Definition for I/O interface





Table 4.1 Definition for Input Channel Ⅱ:

PIN	Input Signal
p1(GND)	Connect to the ground
p2(GND)	Connect to the ground
P3(R)	connect R(ed) interface of the input device
P4(G)	connect G(reen) interface of the input device
P5(B)	connect B(lue) interface of the input device
P6	Undefined(null)
P7	Undefined(null)
P8(H)	connect H(CS) interface of the input device
P9(V)	connect V interface of the input device

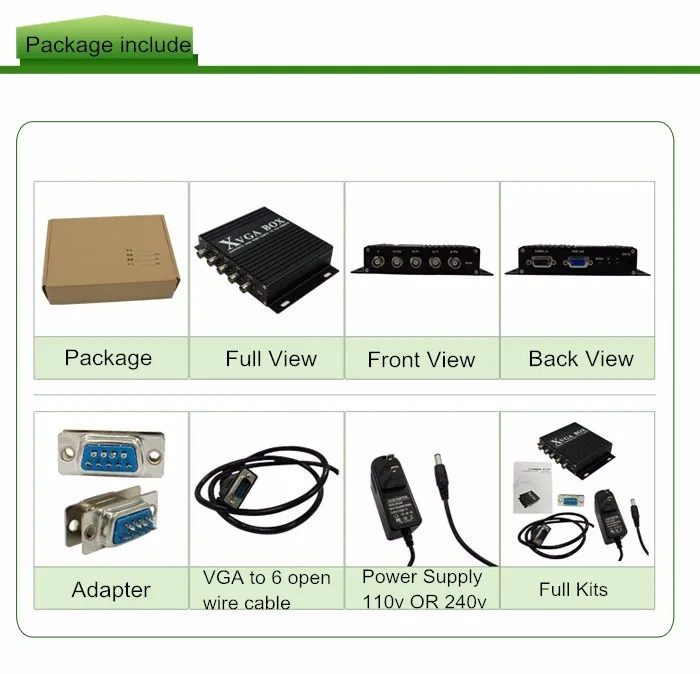

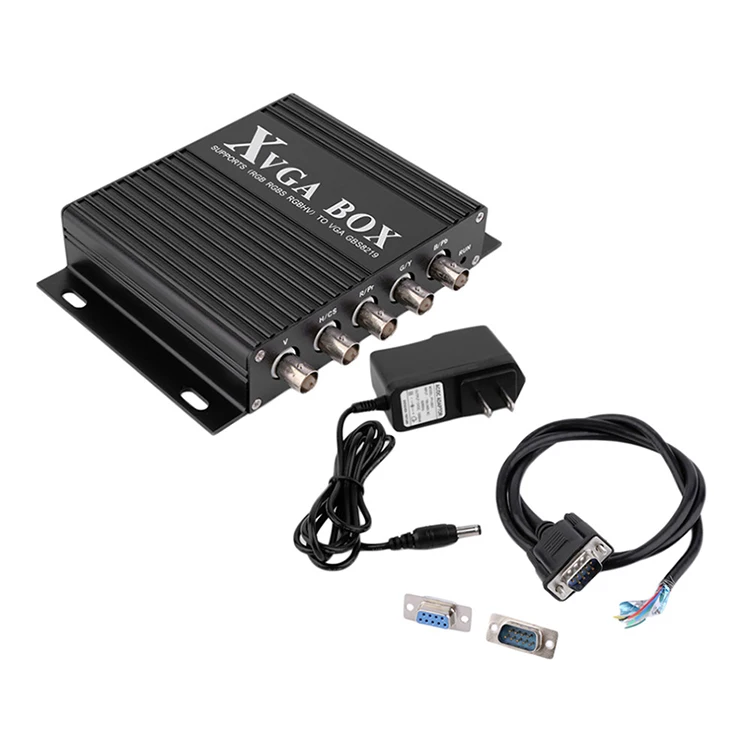

Table 6.1 Accessories list

Item	QTY	Remarks
User’s Manual	1	English
Power Adaptor	1	DC12V,1A
half 9pin cable	1	See following definition
9pin M-F cable	2	1 Male + 1 Female



Table 6.2 Definition of 9 Pin cable

Name	Wire color	Signal
A	Silver web	Shield
B	Black wire	Ground(GND)
C	White wire	Vertical Frequency Rate(V)
D	Orange wire	Horizontal Frequency Rate(H)
E	Blue wire	Blue(B)
F	Green wire	Green(G)
G	Red wire	Red(R)
H	Brown wire	Undefined(null)
