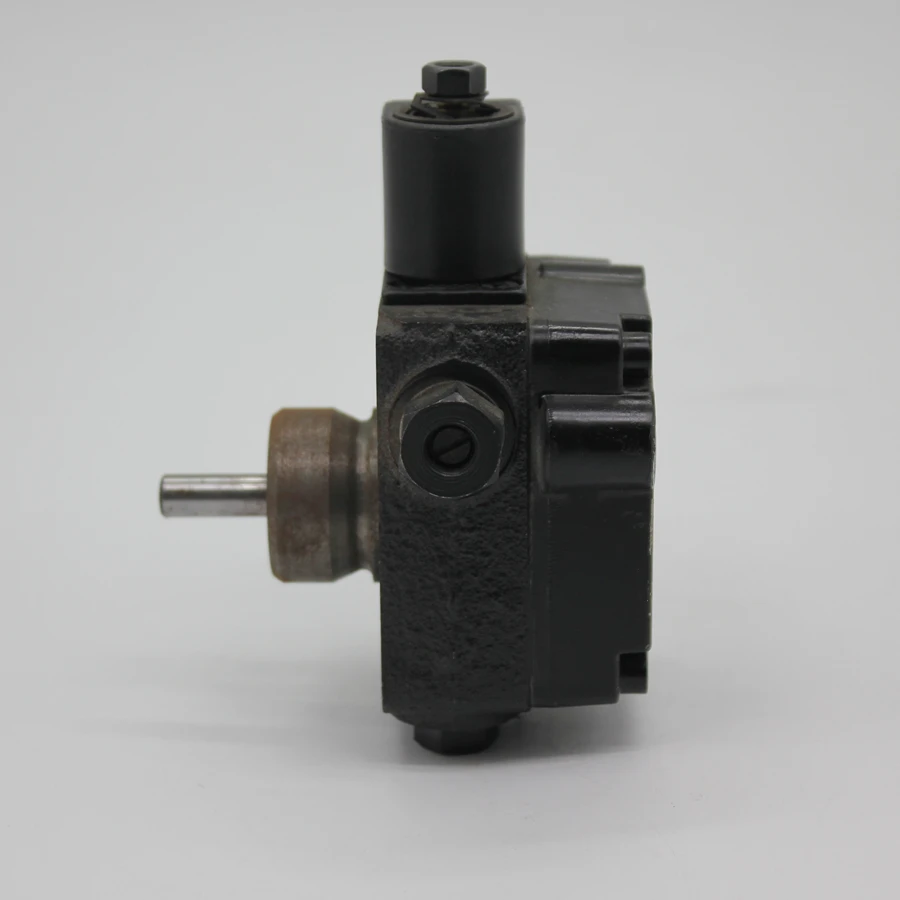

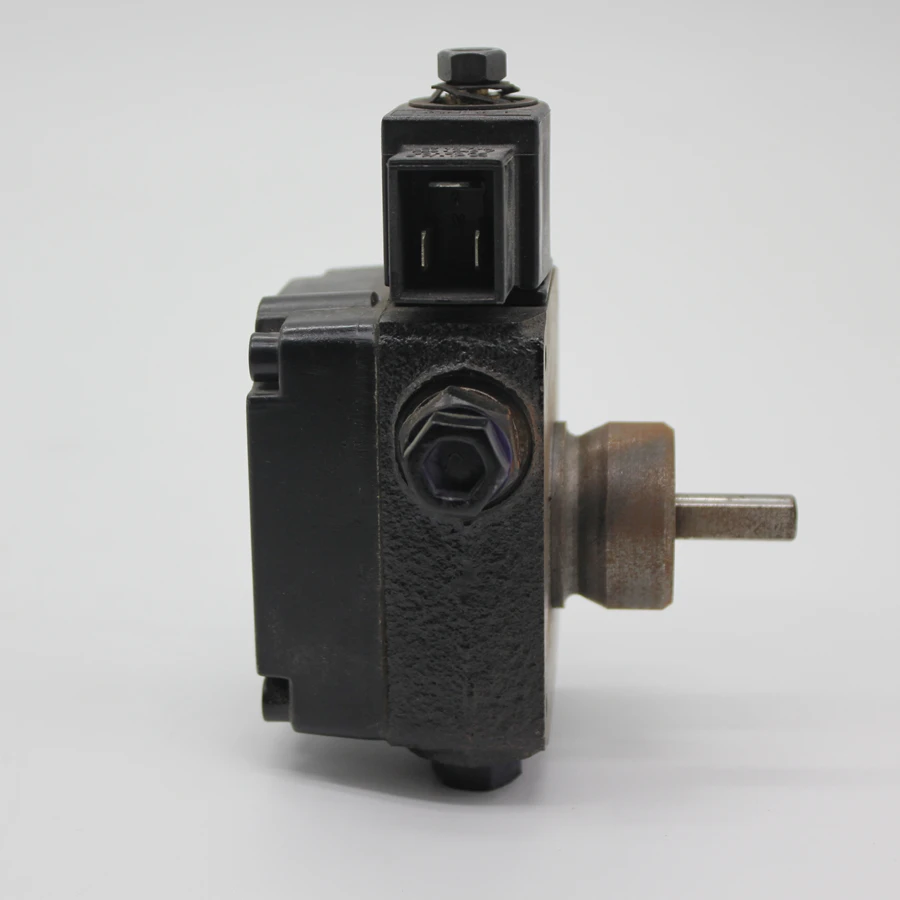

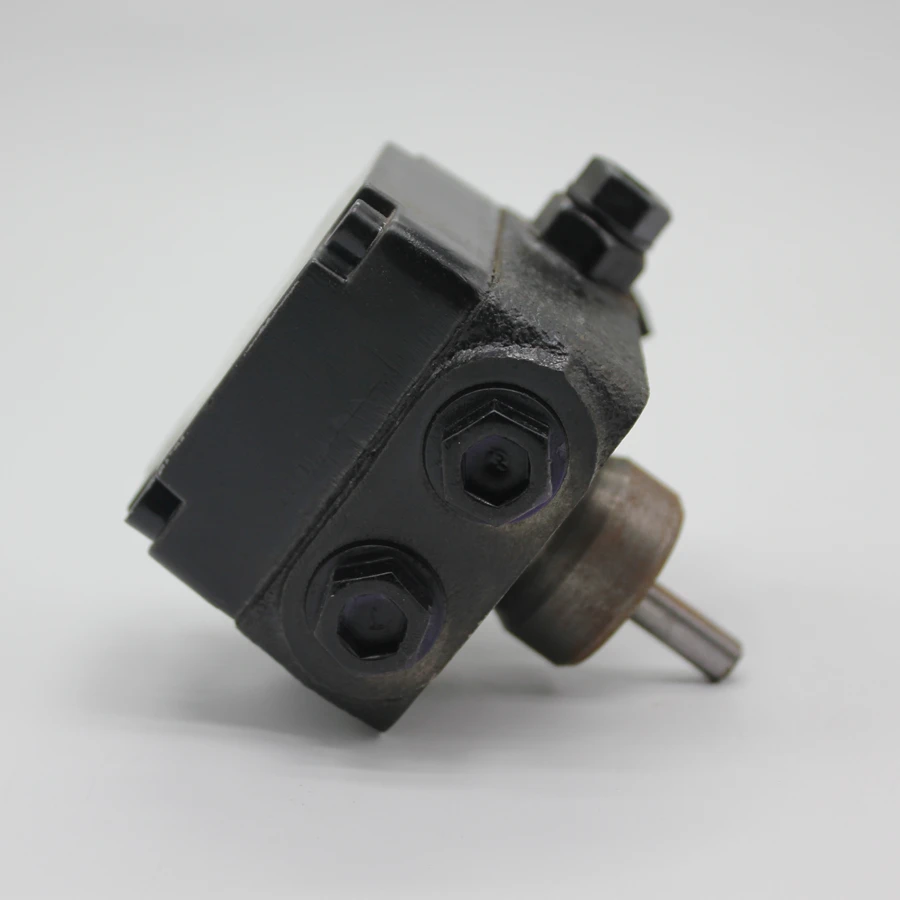

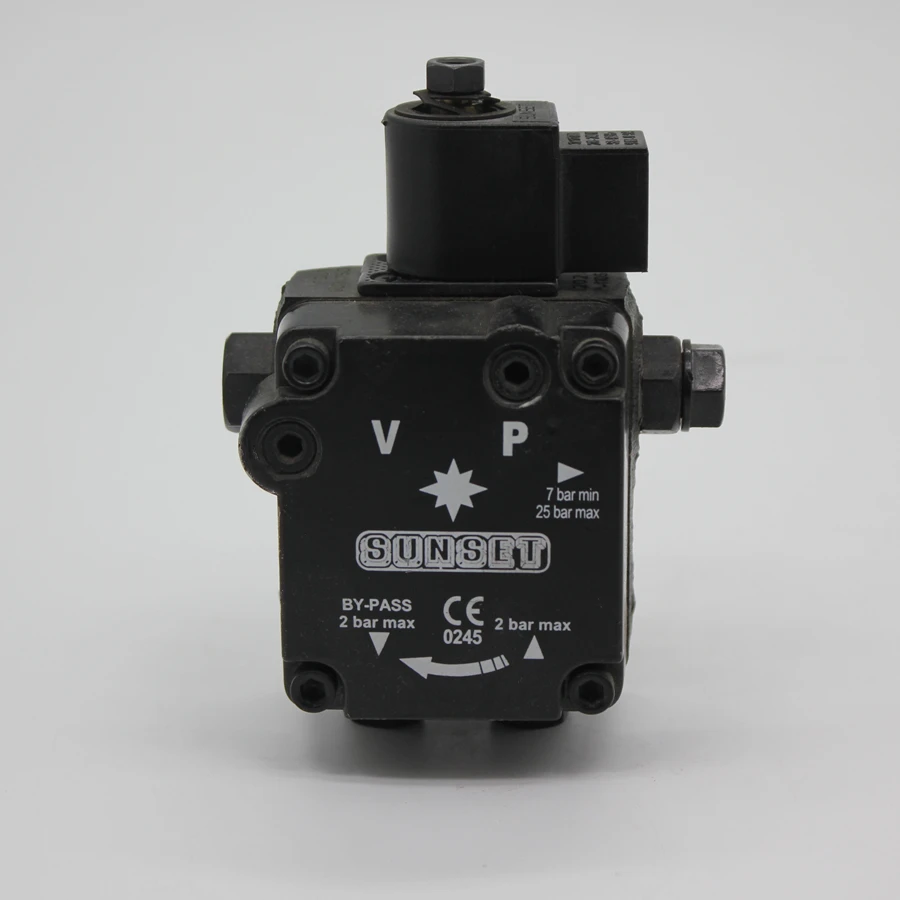

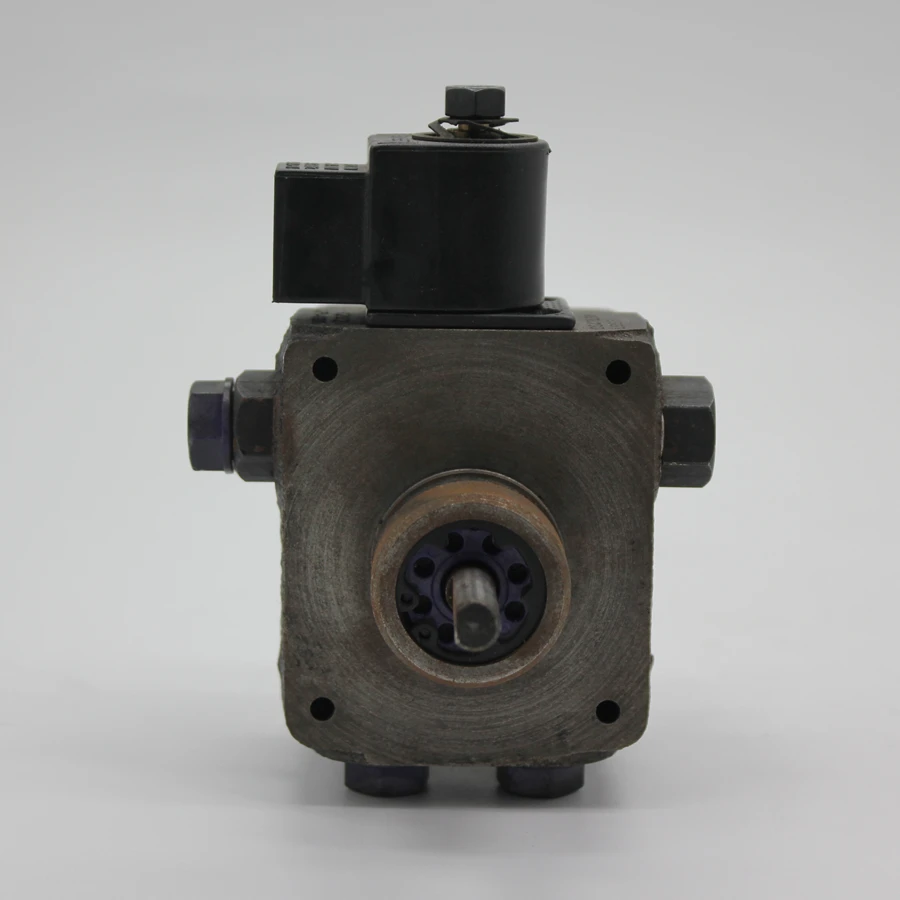

Масляный насос DS47L38 LOS3 заменяет масляный насос Suntec AS47C 1538 для горелки iol

Product Overview

Description

capacity 50L/H

Inlet and return  G 1/4

Nozzle outlet G 1/8
Pressure gauge ports G 1/8
Vacuum gauge port G 1/8

Nozzle pressure range 7- 14 bars

Factory setting 9 bars

Operating viscosity 2 - 12 mm²/s (cSt)

Oil temperature 0 - 60°C in the pump.
Inlet pressure 2 bars max.
Return pressure 2 bars max.

Rated speed 3600 rpm max.

Torque (@ 45 rpm) 0,10 N.m

Art.no.	SSOP1211	SSOP1208	SSOP1209
Type	DS47L38-LOS3	DS47R36-ROS3	DS47R32-RON5
The replaced SUNTEC  as type oil pump	AS47C1538	AS47A1536	AS47A7432
Input & Output Demensions	G1/4
Pressure Range(bar)	8–20
Factory  Setting(bar)	10
Capacity(I/h)	50
Working Environment	For burner and boiler
Place of origin	Fujian,China
Standard or Nonstandard	Standard
