Industrial TC 2 Degaussing Tool Permanent Neodymium Magnet Coil for Effective Demagnetization of Industrial Magnets

Product Overview

Description

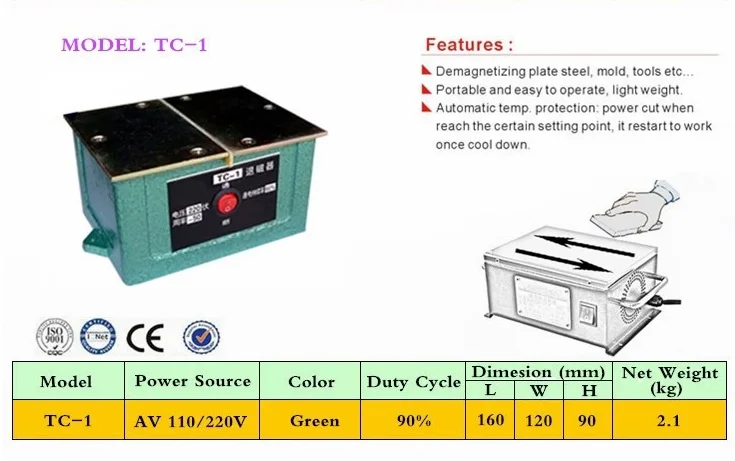

TC-1 & TC-2  industrial powerful  flat magnetizer and demagnetizer machine





TC-1 & TC-2 FEATURES

	size	coils	working desk
TC-1	160*120*90mm	2
TC-2	160*220*90mm	4	twice as TC1

TC-1: 160 * 120MM 90MM two built-in height for smaller workpieces demagnetization degaussing

coils use



TC-2: 160 * 220MM 90MM Built-in height is larger than four coils countertops TC-1 is about twice



This section is mainly used to eliminate weak demagnetiser magnetic products after use or

processing artifacts produced for ferromagnetic workpieces is no demagnetization effect. On the

use of time not too long usually 20-30 minutes is best to avoid long standby and burned coils! ! !

As the product appearance of the painting process, such as the emergence of individual little paint

chips during transport phenomenon is normal and will not affect its demagnetization effects.

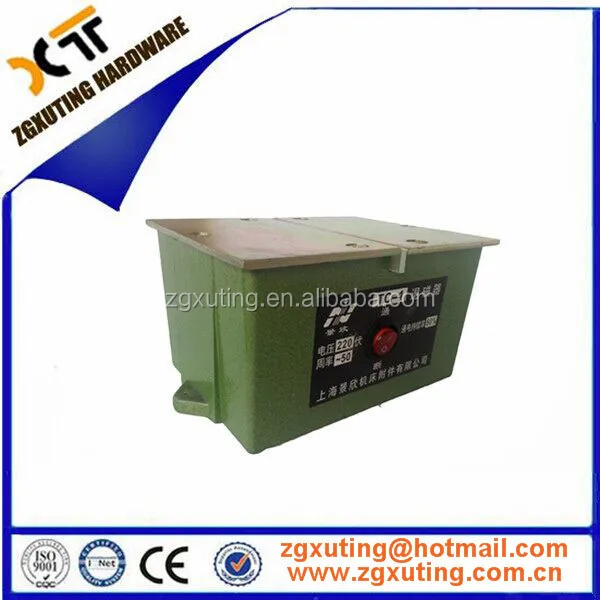

TC-1 TC-2



-------------------------------------------------------------------------------------------------------------------------------------------

*******************************************************************************************************************************************



Specification form



------------------------------------------------------------------------------------------------------------------------------------------******************************************************************************************************************************************



TF-340 Features

MODEL	TF-340
SIZE	340 × 260 × 160mm
WORKING VOLTAGE	AC220V
Working current	13A
Center field	1200GS
Relative humidity	20% to 80%
Use rate	continuous use
Cooling method	air-cooled high-performance continuous cycle



1. Suitable for large, medium and small molds, large products, plates, cutting

tool,components and accessories quantities fixed way demagnetization demagnetization

2. Built-in cooling system and temperature control device to ensure uninterrupted

demagnetiser continuous usability.

3. Large Face demagnetization, demagnetization power is very strong, the effect is

outstanding demagnetization

4. The use of the Tesla current materials science, magnetics generated to ensure the

best demagnetization effects.

5. This series is equipped with line mounting holes, can be selected using methods based

on the use of units.

6. This series of products are made of high grade quality materials, workmanship, quality

assurance.

7. For the coercive force of strong materials: for example, high-carbon steel, nickel-

chromium steel, spring steel, tool steel, bearing steel can easily demagnetization;

8. It can be widely used in electronics, communications, large machinery and

equipment, shipbuilding, metal processing, major institutions laboratory, medical

and many other industries.

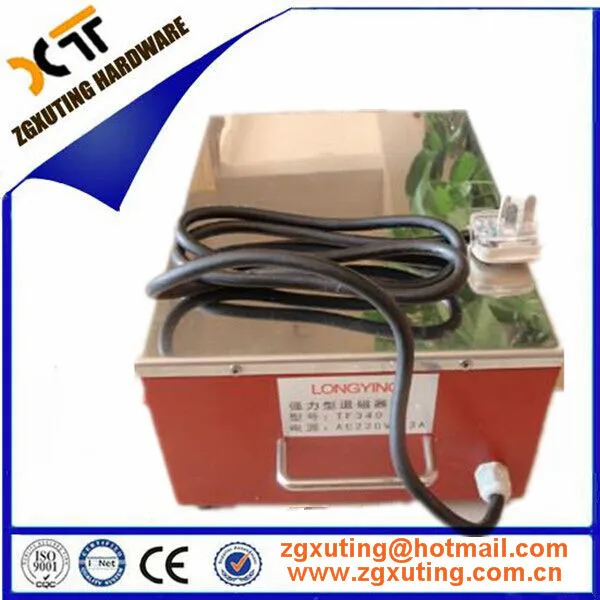

TF-340





  -----------------------------------------------------------------------------------------------------------------------------------------*******************************************************************************************************************************************



Suitable for steel plates, molds, etc. for handy way demagnetization.Small,light weight; easy to carry.temperature protection

Specification:

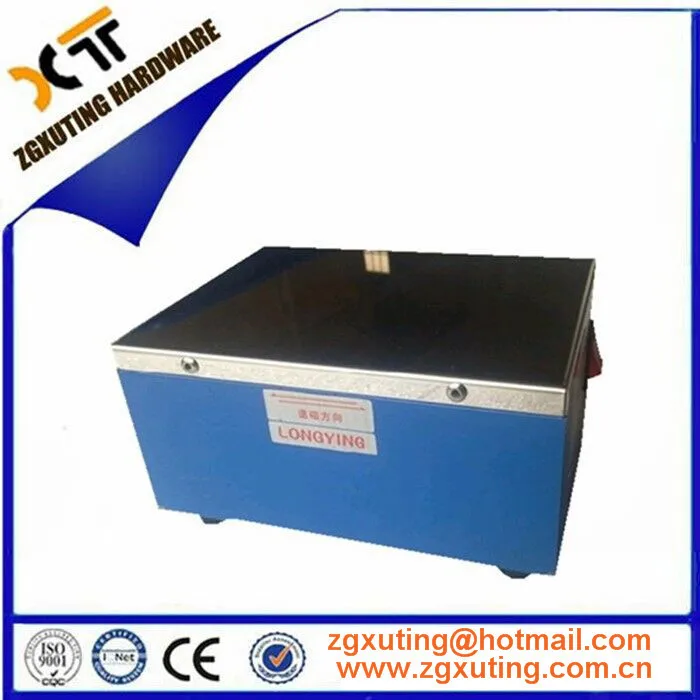

MODEL	TE-208
POWER	AC 220V 3A,  550W
SIZE	208-150-100MM
WEIGHT	7.3KG
FREQUENCY OF USE	sustained use

Features:

Suitable strong demagnetization coercivity materials, stainless steel, nickel-chromium steel, bearing steel, tool steel, carbon steel. Mold; fixture; Tool; Measuring Jieke Face demagnetization job placement.
Built-in protection, overheat protection, self-recovery, continuous trial, unlimited
Magnetic field can reduce iron absorption and mold damage the workpiece.

TIPS:
After demagnetization is completed, demagnetiser must be separated from the object in the open state
(At least more than 10cm or more), so as to achieve the best demagnetization results.





--

-------------------------------------------------------------------------------------------------------------------------------------------

*******************************************************************************************************************************************

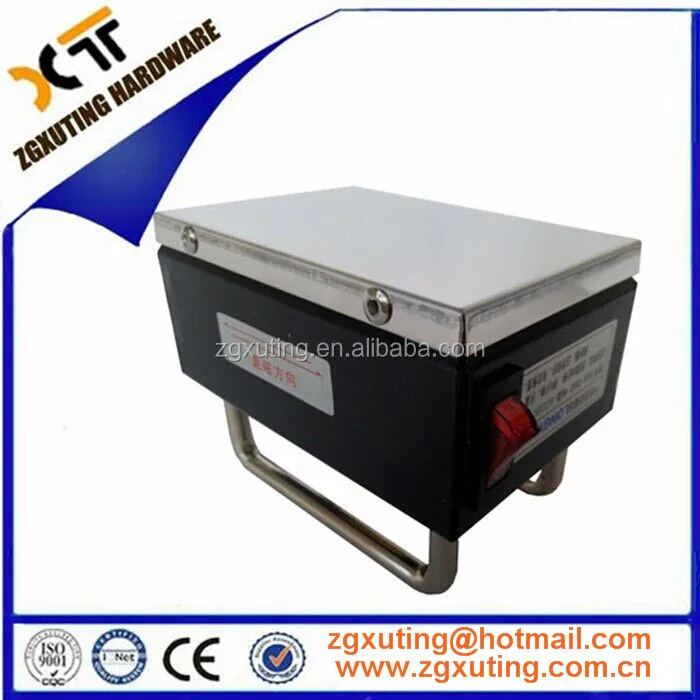

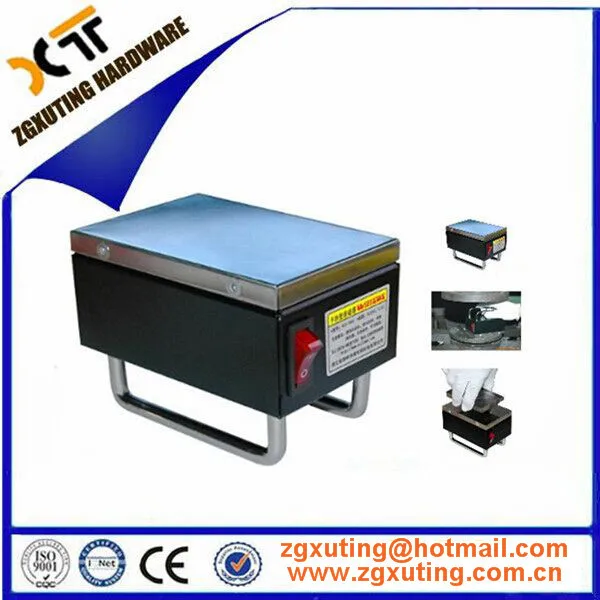

TB-60

TB-60 Features:

MODEL	TB60
POWER	220V,0.9A
SIZE	120mm*80mm*90mm
WEIGHT	1.8KG
FREQUENCY OF USE	use 30 minutes, stop 5 minutes

1. demagnetiser directly in our hands to do a great move on the workpiece or machine off

all its remaining residual magnetism
2. small workpiece; mold; fixture; Tool; Measuring Jieke demagnetization job placement

Face
3. portable compact design, demagnetization portable, easy to carry, wide application
4. Built-in protection, thermal protection, self-healing
5. reduce the magnetic iron absorption and damage mold parts

TIPS:
After demagnetization is completed, demagnetiser must be separated from the object in

the open state
(At least more than 10cm or more), so as to achieve the best demagnetization results.

 -----*******************************************************************************************************************************************
