230x230 Automatic Table Napkin Machine, , Napkin Equipment , Napkin Folding Machine
- Category: >>>
- Supplier: Quanzhou Hengxin Paper Machinery Manufacturer Co. Ltd.
Share on (443879552):
Product Overview
Description
Product Description

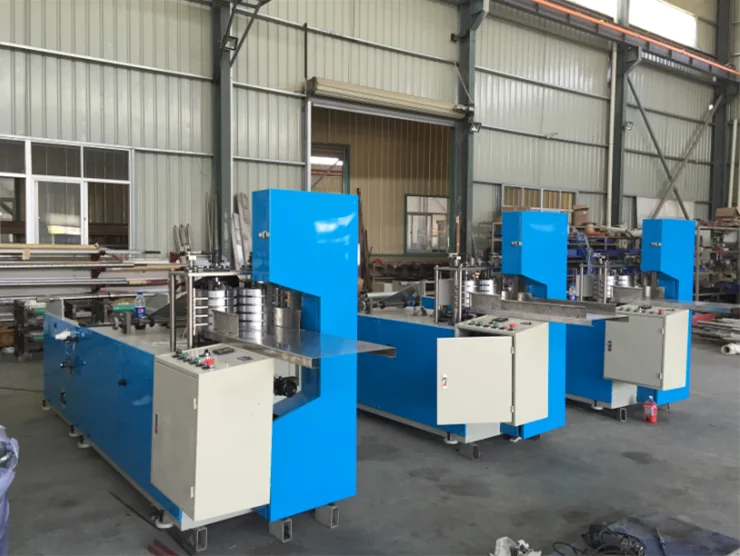

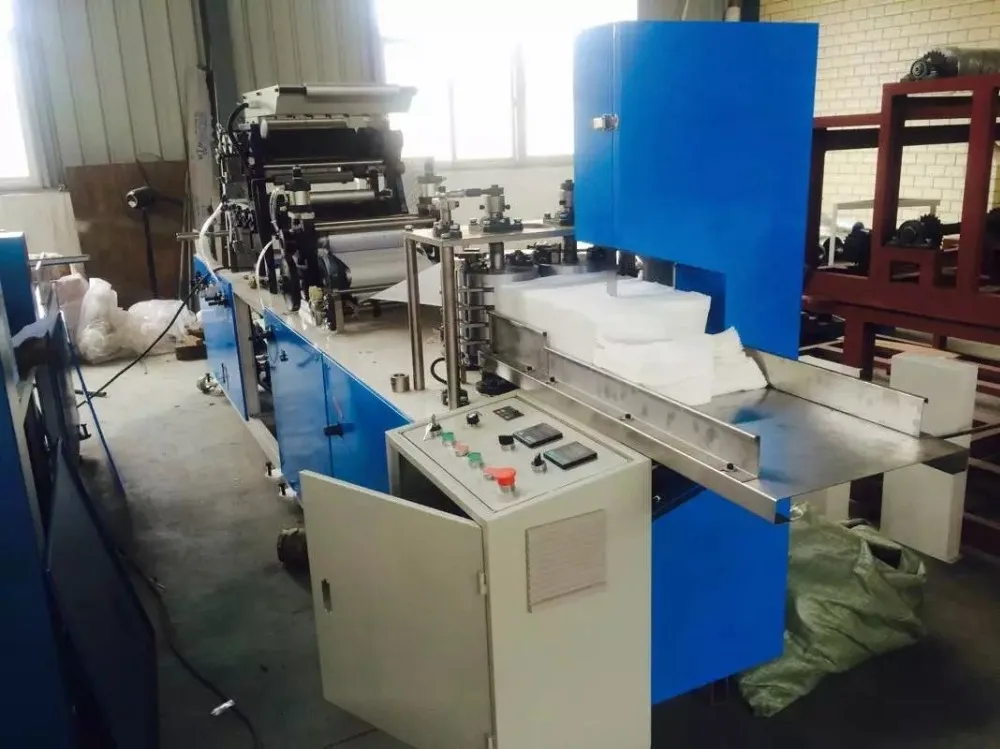

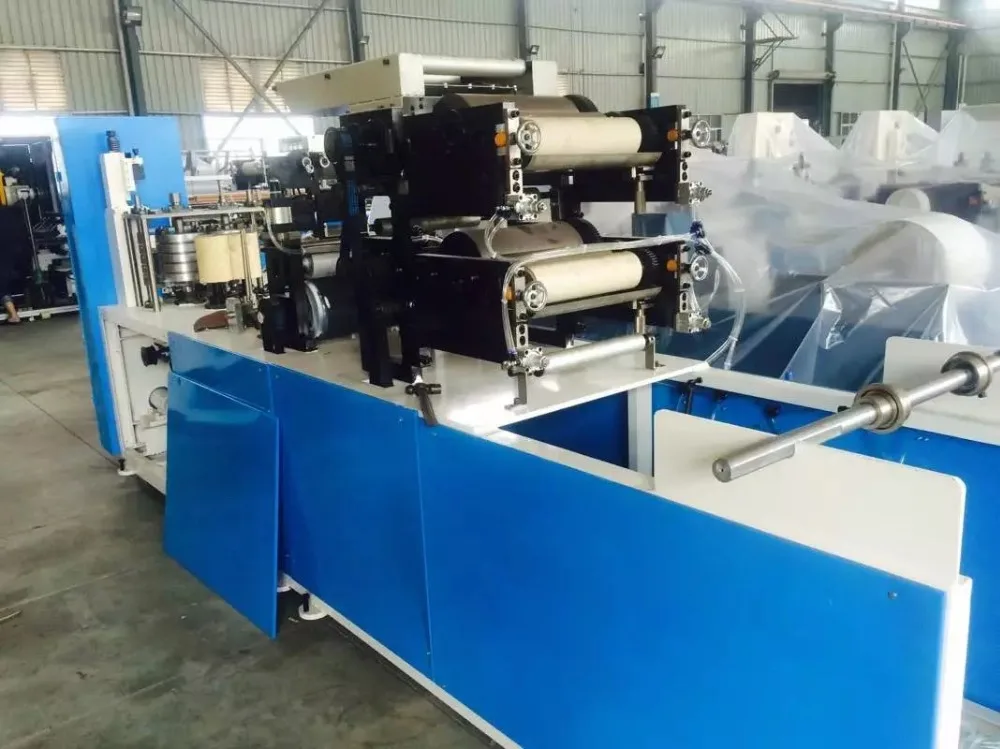

HX-CJ-240 Automatic Napkin Paper Folding Machine
Color Printing Embossing Napkin Folding Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright with printing, overlay accuracy, high speed stationary, is the processing of special equipment for high-grade napkins.
This machine has automatic counting function, you can set the number in the system, than the output will seperate in piles in the set number, the color printing unit is optional from 1-3 colors, and the embossing unit is optional from 1-2 units.

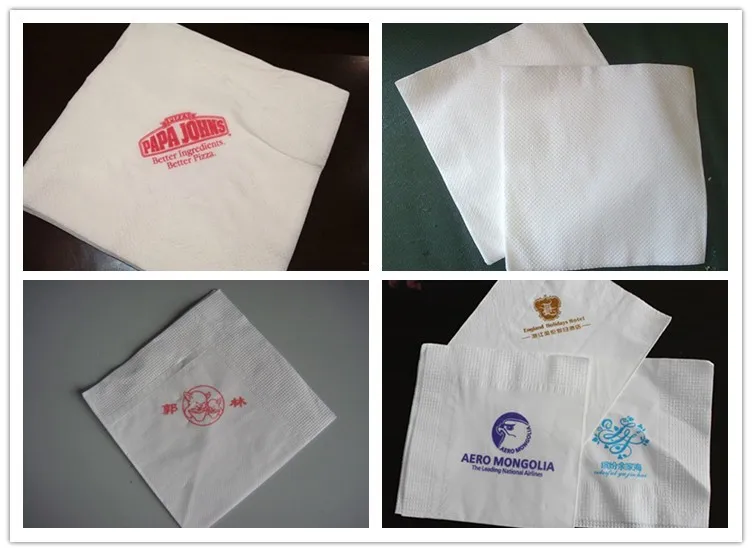

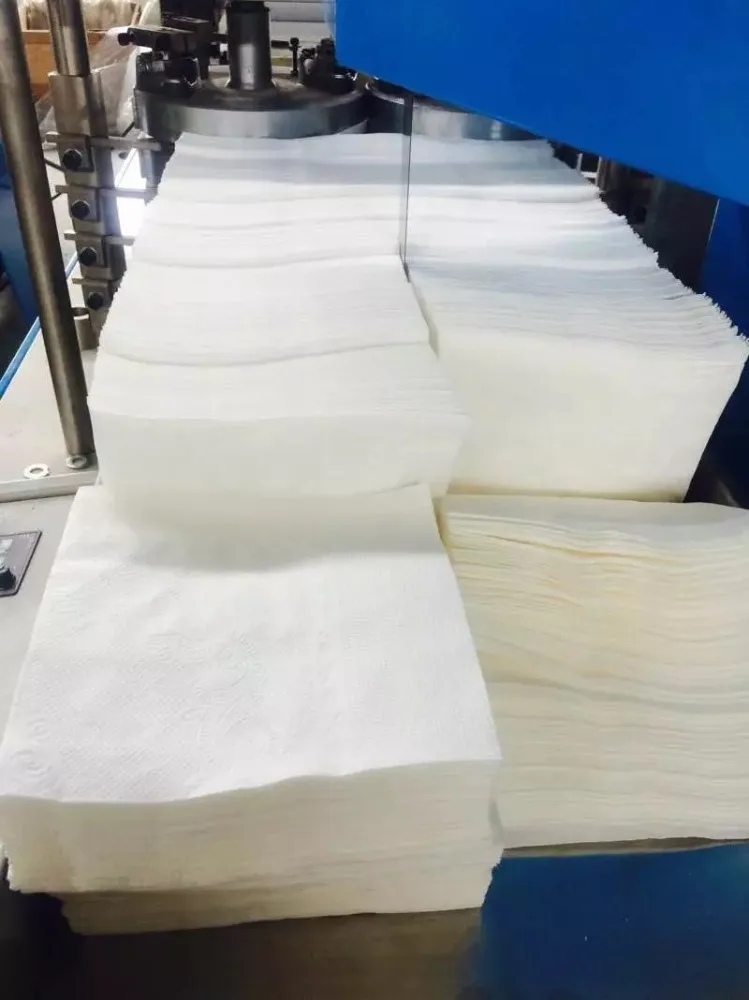

Samples
Function and Features
1. Transmission belt drive configuration
2. Color printing deviceadopts flexible printing, the design can be flexibly according to you need replace, useprofessional color printing anilox stringink roller
3. Pattern matching paper rolling device, pattern significantly
4. Electronic counting dislocation row of output
5. Folding board with mechanical hand with the folded shape, cutting through the band saw cutter
6. Other standard models can be customized
The Main Technical Parameters
Product unfold size | 240*240mm |
Product fold size | 120*120mm |
Raw material jumbo roll size | 1100 mm |
Jumbo roll paper core diameter | 76.2 mm |
Working capacity | 350~450pcs/min |
Color printing | Can choose |
Embossing unit | Steel to wool |
Counting unit | Electronic counting |
Machine power | 4.5KW |
Dimension | 5200X900X1500mm |
Weight | About 1500kg |
Packaging & Shipping
Company Information

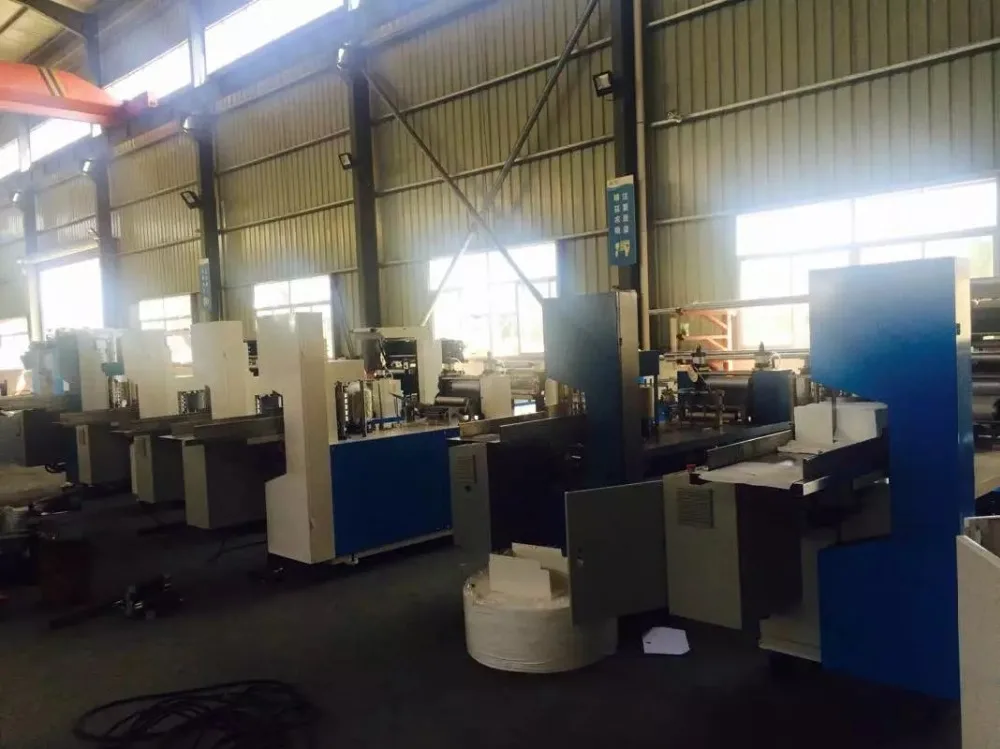

We Process Most Spare Parts Ourselves

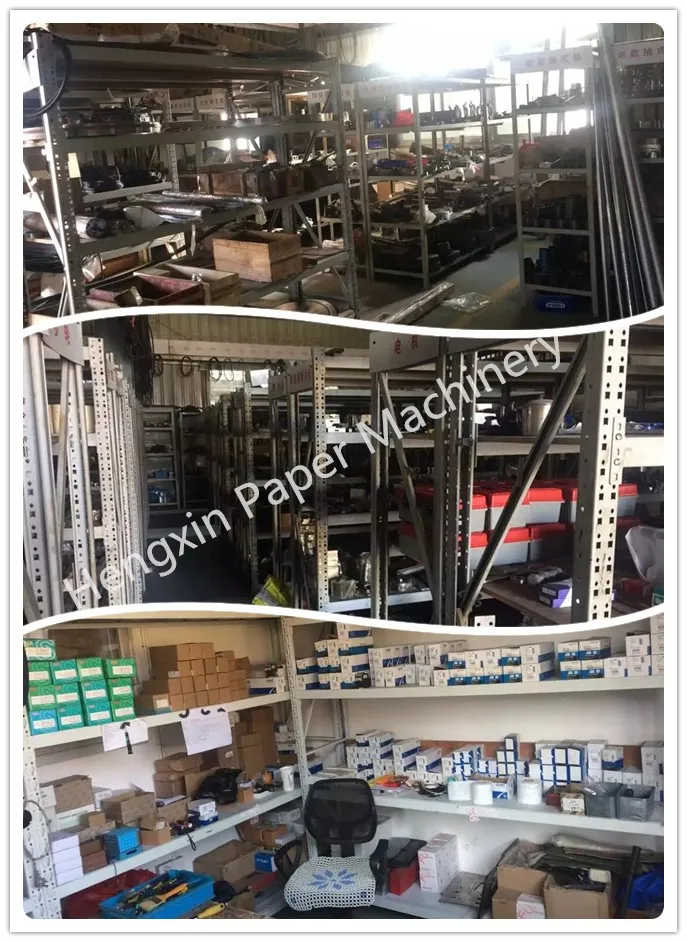

Spare Parts Room
Exhibition Show
WE LOOK FORWARD TO OUR COOPERATION
Certifications
FAQ
1.Q:Who are we ?
A: We , Quanzhou Hengxin Paper Machinery Manufacture Co., Ltd, a factory specialized in manufacturing Toilet paper machine,/Kitehcen towel machine/Facial tissue machine/Hand towel machine, and relevant cutting machine and packing machine, since 1998. We have about two decades experience on manufacture ONLY PAPER MACHINERY, WE ARE PROFESSIONAL. My factory is located in Quanzhou city, workshop area is about 4000 m2, with more than 50 professional technicians.
2.Q: What is our payment terms?
A:Our general payment terms is T/T. After confirmed machine details, client need to pay 30% of the total amount by T/T to start the order. After machine finished and tested, and client feel satisfied (client can come and test the machine or we send machine testing videos to them) then pay 70% by T/T before shipping.(For other payment terms, need to be agreed by buyer and seller both parts.)
3.Q:What is our delivery time?
A: Normally, our delivery time is 60 days, Different clients have different requirements, so all the machine only start production after ordered. And most of the machine main spare parts we process ourselves to make sure precision and quantity, If order standard size which have ready spare parts can shorten the delivery time to 45 days if you are lucky.(Asking the sales in advance)
4.Q:What is our warranty?
A:our warranty is one year start from machine arrive the client’s place, the parts can be replaced for free within one year(not including the easy-wear parts like blade), but the after-sales service is all machine lifetime, any problems happen can contact us, we will try our best to help you out of trouble.
Our Services
1.If you are new to this business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.
2. We can special made machine according to client’s requirement.
3. We can recommend related raw material suppliers to you like jumbo roll, packing film if you like.
4 .We can help you to find shipping forwarder and get the documents you need for customs clearance to help you make it easy.
5.We have engineer installation service, We send technician to your factory to help you install and train your workers to operate our machine. If you want to send workers to my factory to study also welcome.
Contact Information
Contact us at any time you want, Prompt reply will be given by related Manager. If we are not available to take your call, Please leave a message, You will be contacted at the very earliest opportunity. Our professional service staffs will help you settle your problems one by one.
