PN63 Flanged Stainless Steel Stem Gate Valve Manufacturer

Product Overview

Description

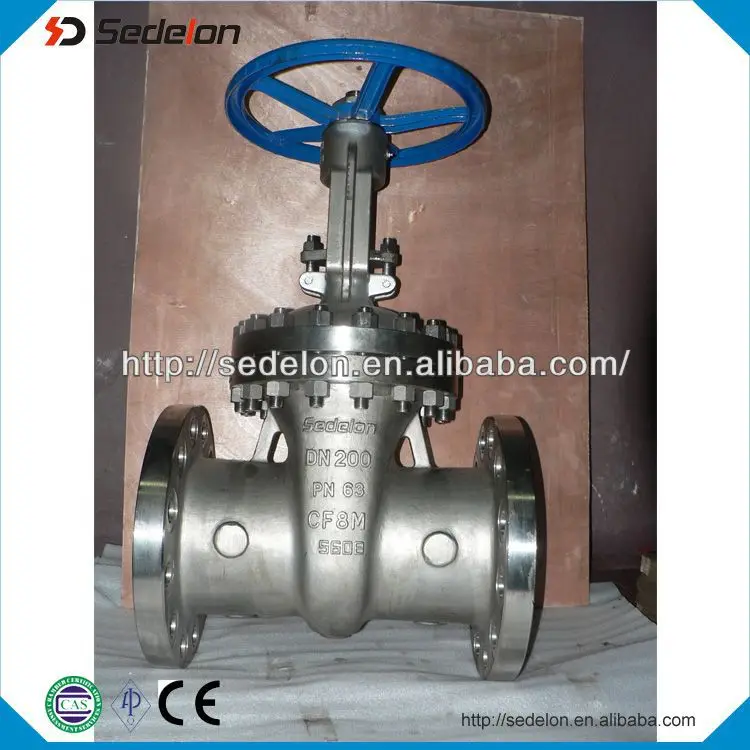

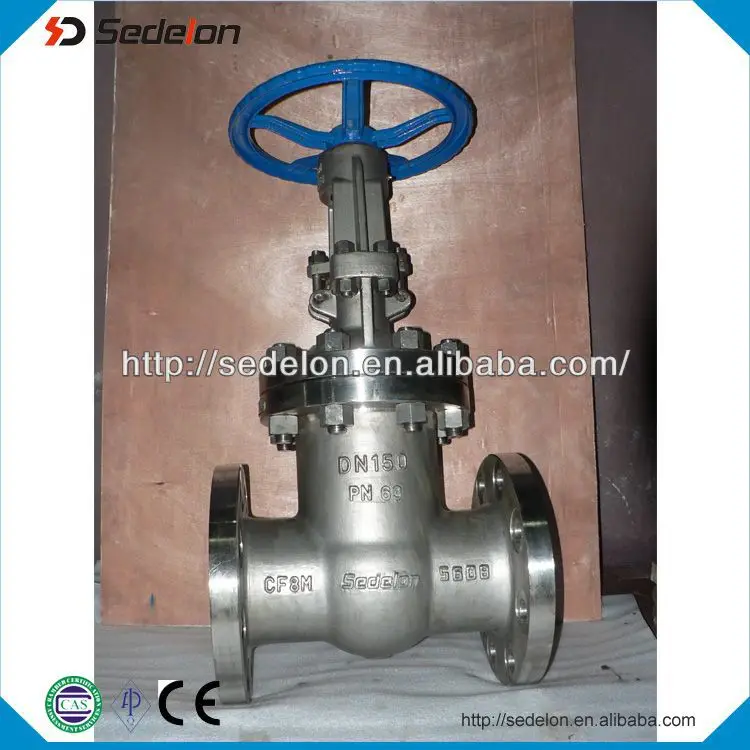

               PN63 Flanged Stainless Steel Stem Gate Valve

Applicable standards

STEEL GATE VALVES EN 1984/DIN3352

FACE TO FACE, EN558-1/DIN3202 F7

END FLANGES,EN1092-1/DIN2545

NSPECTION AND TEST, EN12266/DIN3230



Design descriptions:

FULL PORT DESIGN

OS&Y OUTSIDE SRCEW AND YOKE

BB.BOLTED BONNET, PSB.PRESSURE SEAL BONNET

FLEXIBLE WEDGE

SEAT RINGS INTEGRAL WITH BODY

FORGED T-HEAD STEM

RISING STEM AND NON-RISING HANDWHEEL

FLANGED ENDS

AVAILABLE WITH BG OPERATOR



Manufacturing Range

Size: NPSDN50-DN1000

Pressure Rating: Class PN16~PN420

Material:WCB,WC6,WC9,CF8,CF8M,CF3,CF3M,4A,5A,6A,CN7M,LC1 LC2, LC3, LCB, LCC, Monel,  C95800, C95500,etc.

Design & Manufacturing Standard: EN 1984/DIN3352

Face to Face: EN558-1/DIN3202 F7

End Connection: EN1092-1/DIN2545

Test and Inspection: EN12266/DIN3230

Operation Method: Manual, Gear,Bevel Gear, Electric Actuator, Pneumatic Actuator





Feature:

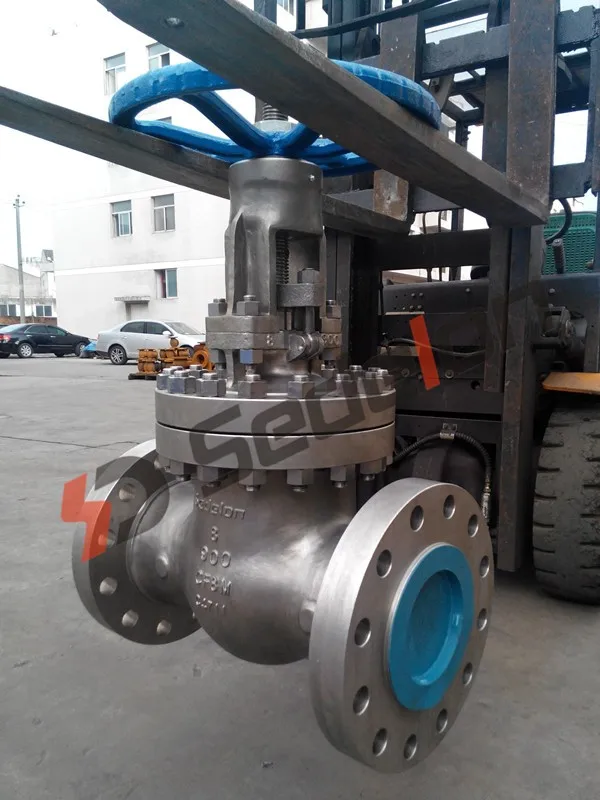

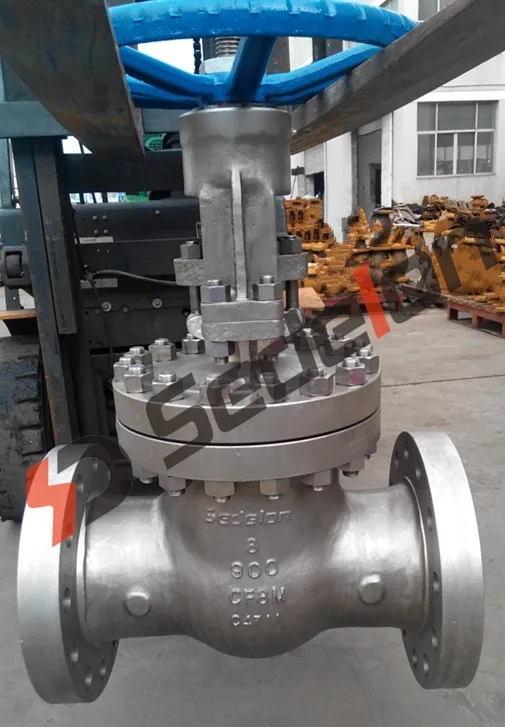

CLASS 150~1500 CAST STEEL GATE VALVE
OS&Y,Rising stem,Flexible Wedge
Bolted Bonnet,Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M

Standards compliance
Design and Manufacture:ANSIB16.34,API600 API6D,API603,BS1414
Face to face(end to end):ANSIB16.10,API6D
Flanged connection:2″~24″to ANSIB16.5,22″,26″~36″to MSS-SP-44 to API605 on Request

Test and inspection:API598,API6D
Butt welded end:ANSIB16.5

A.Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation
B.Grub screw:Secures yoke nut in the bonnet
C.Grease nipple:Supplies lubricant to the mating parts



Advantage:

Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable.

Quality Control: We have been engaged in valve design for many year and can guarantee best quality

Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you



Our Capacity:

1)Date of foundation:2008

2)Annual Sales:Exceed $100 million

3)About QC: Excellence, quality first is our philosophy

4)Sales Market: Southeast Asia and other Overseas markets

5)Main Products: Gate Valves, Ball Valves, Check Valves, Butterfly Valves, Globe Valves, and Plug Valves
