DC M30 capacitive proximity level sensor

Product Overview

Description



DC M30 capacitive proximity level sensor

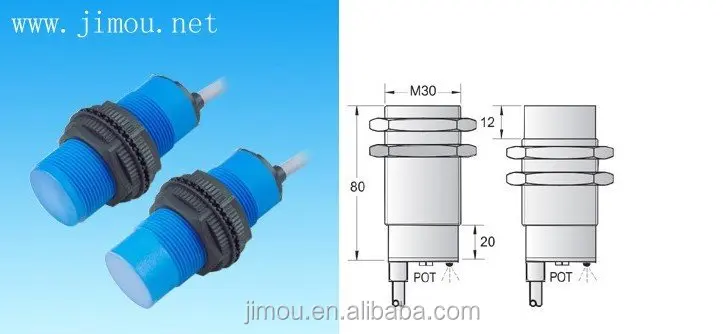

1.Sensor picture for DC M30 capacitive proximity level sensor





2.The specification of  DC M30 capacitive proximity level sensor

DC CAPACITIVE PROXIMITY SENSOR
Diameter	M18
Shielded    Non-shielded	Shielded	Non-shielded
Switching Distance Sn:(mm)	2~20mm adjustable	2~30mm adjustable
Housing Material	PBT RESIN
With LED    Without LED	With LED
Operating Voltage	10-40VDC
Ripple	<10%
No Load Current	<10mA
Max.Load Current	300mA
Leakage Current	<0.01mA
Voltage Drop	<2V
Switching Frequency	100	Hz
Response Time	1.5ms	/  1.5ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<5%(Sr)
Protection Category	IP67
Operating Temperature	-25°C - +70°C
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	350mA
EMC	RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face	PBT
DC 3wire 10-30V NPN N.O.	CG1T – P30 * N - O3A2	CG2T – P30 * N - O3A2      1
DC 3wire 10-30V NPN N.O.	CG1T – P30 * N - C3A2	CG2T – P30 * N - C3A2      2
DC 3wire 10-30V PNP N.O.	CG1T – P30 * P - O3A2	CG2T – P30 * P - O3A2      3
DC 3wire 10-30V PNP N.C.	CG1T – P30 * P - C3A2	CG2T – P30 * P - C3A2      4
DC 4wire 10-30V Changeover NPN(N.O.&N.C.)	CG1T – P30 * N - S4A2	CG1T – P30 * N - S4A2      5
DC 4wire 10-30V Changeover PNP(N.O.&N.C.)	CG1T – P30 * P - S4A2	CG1T – P30 * P - S4A2      6
DC 2wire 10-60V N.O.
DC 2wire 10-60V N.C.
DC 3wire 10-55V NPN N.O.
DC 3wire 10-55V NPN N.C.
DC 3wire 10-55V PNP N.O.
DC 3wire 10-55V PNP N.C.
DC 3wire 5-36V NPN N.O.
DC 3wire 5-36V NPN N.C.
DC 3wire 5-36V PNP N.O.
DC 3wire 5-36V PNP N.C.
DC 4wire 5-36V Changeover NPN(N.O&N.C.)
DC 4wire 5-36V Changeover PNP(N.O&N.C.)
	Wiring diagram No.
Cable2M (PVC)	5.2Φ 3*0.34 or 5.2Φ 4*0.34
Weight (g)	Approx.197g                     Approx.195g



3.Installation of proximity sensor DC M30 capacitive proximity level sensor

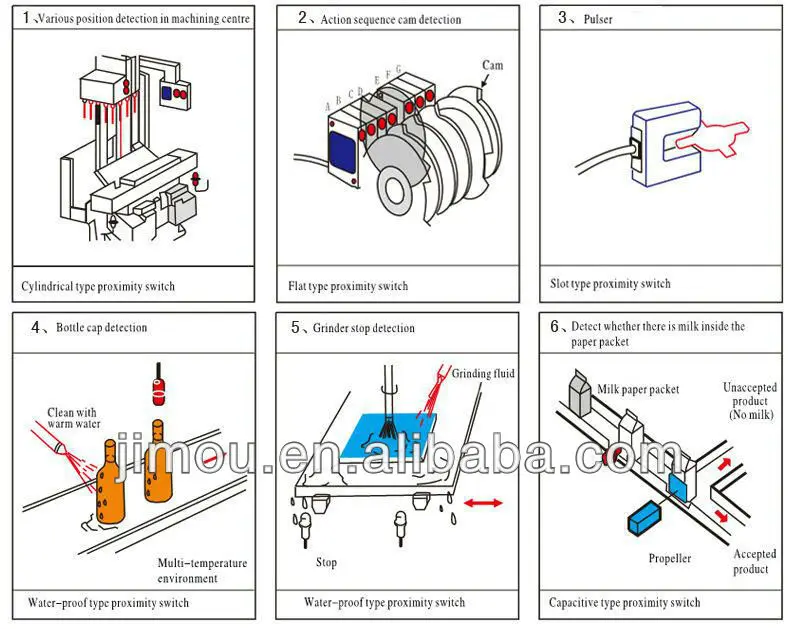

4. Application of the proximity sensor

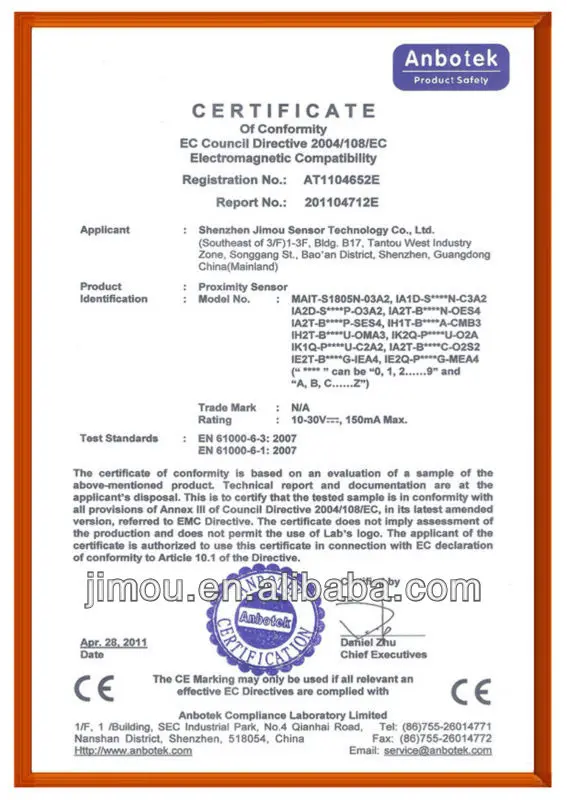

5.Certificates
