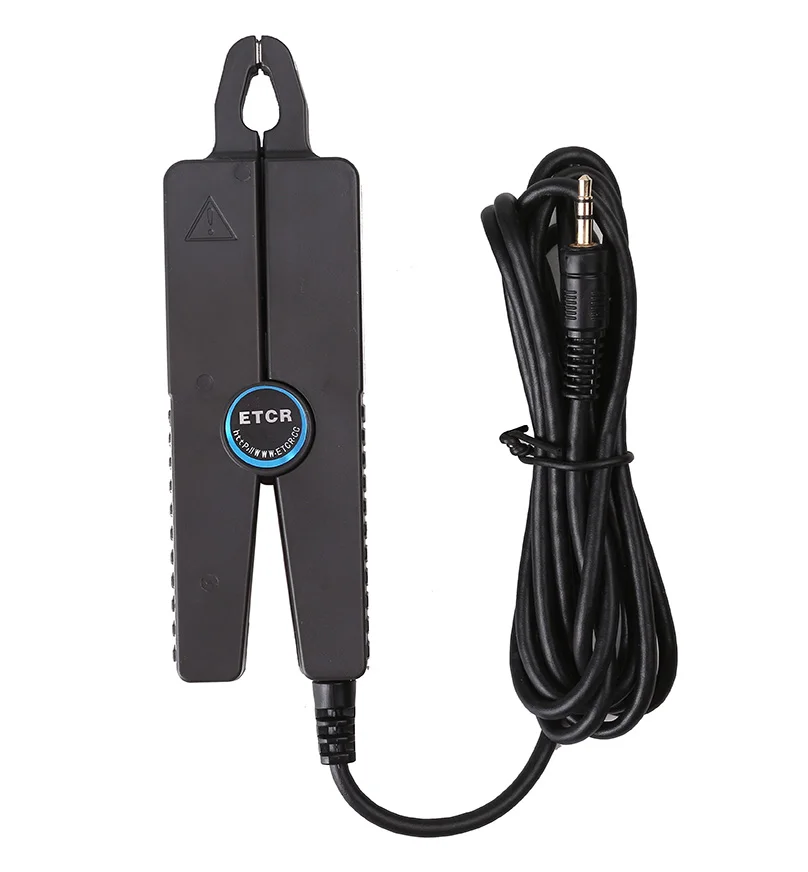

ETCR008 Clamp on Current Sensor Probe Leakage Current Sensor probe leakage CT Factory,ISO,OEM,ODM AC 0.00mA~30.0A
- Category: >>>
- Supplier: Guangzhou ETCR Electronic Technology Co. Ltd.
Share on (445097818):
Product Overview
Description
ETCR008 Sharp-nose pliers Current Sensor --- Manufactory
Product Description
| Clamp size | Φ8mm |
| Range | AC 0.00mA~30.0A |
| Resolution | 0.01mA |
| Accuracy | ±1.0%FS(50Hz/60Hz;23℃±2℃) |
| Linearity | ≤1.0% |
| Phase error | ≤2°(50Hz/60Hz;23℃±2℃) |
| Reference load | RL:0mA~300mA≤500Ω;0.3A~3.0A≤50Ω;3.0A~30A≤5Ω |
| Standard turn ratio | 2500:1(Can be customized on request) |
| output method | Current sensing output |

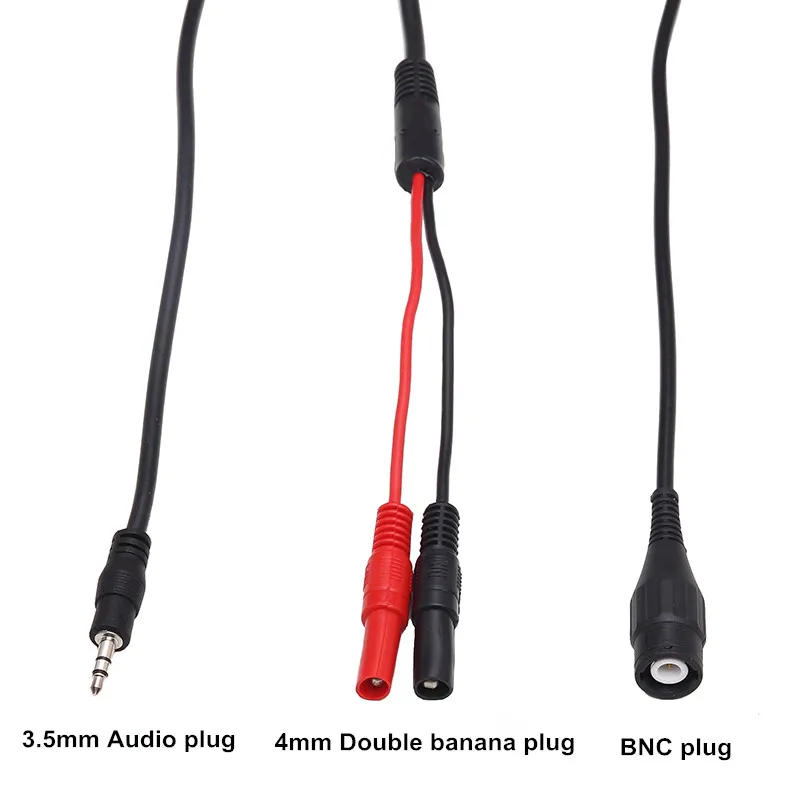

| Output Interface | Φ3.5mm audio plug/BNC plug/4.0mm double banana plug (according to customer requirements) |
| Output line | 2-core shielded cable, length 2m |
| Detection method | Clamp CT |
| Measured current frequency | 45Hz~60Hz |
| Frequency characteristics | 10Hz~100kHz |
| Wire position | The wire under test is in the center of the jaws |
| Line voltage | below AC 600V |
| working environment | -20℃~50℃; below 80%Rh |
| Storage environment | -10℃~60℃; below 70%Rh |
| Insulation | AC3700V/rms (Between core and shell) |
| Protection Type | IEC1010-1,IEC1010-2-032,Pollution 2,CAT Ⅲ(600V) |
| Weight | 175g |

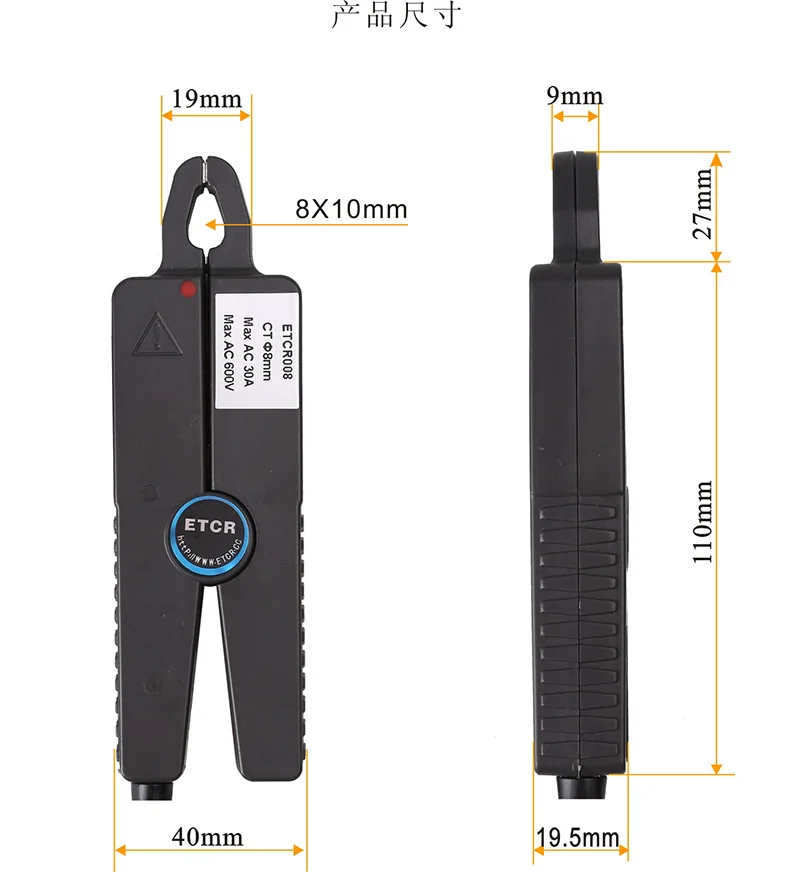

| Current clamp | 137mm×40mm×19.5mm |

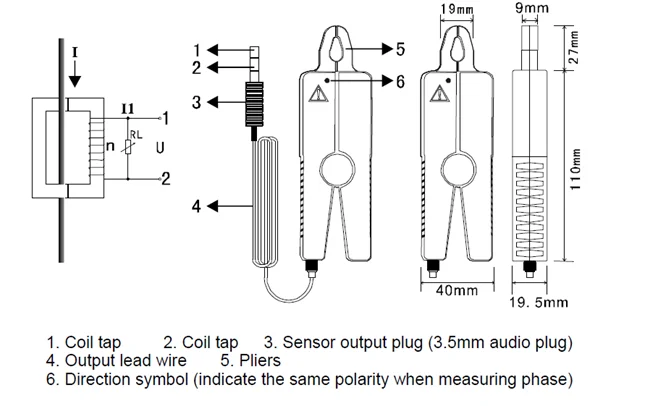

. Structure Drawing
