High speed nail thread rolling machine for nail threading
- Category: >>>
- Supplier: Wuxi Tripod Machinery Imp. & Exp. Co. Ltd.
Share on (445763487):
Product Overview
Description
Product Description
No. | Model | GS-B9-1/2 |
1 | Rolled range of nail's shank diameter | φ1.8 - 4.8mm |
2 | Nail's thread length range | 16 130mm |
3 | Capacity | 500 - 1000pcs/min |
4 | Model: GS-B9-1 Nail shank dia.: φ1.8 - 3.4mm Threading length: 16 - 70mm Nail length: 16 - 100mm | Main motor power - 5.5KW (nail shank dia. ＜φ3.4mm - 5.5KW (nail threaded length ≤70mm) |
Speed-adjustable: by 7.5KW electromagnetic adjustable speed motor. | ||
5 | Model: GS-B9-2 Nail shank dia.: φ3.1 – 4.8mm Threading length: 25 - 100mm Nail length: 25 - 130mm | Main motor power - 7.5KW ( 4.8mm ≥nail shank dia. ≥ φ3.1 mm ) - 7.5KW (nail threaded length:70-100 mm ) |
Speed adjustment: by 7.5KW electromagnetic adjustable speed motor. | ||
6 | Loading capacity of vibrating bowl | 7.0 kg |
7 | Net weight | Approx. 1200/1300kgs |
8 | Overall dimensions ( L x W x H ) | 1400 x 15300 x 1600 (mm) |

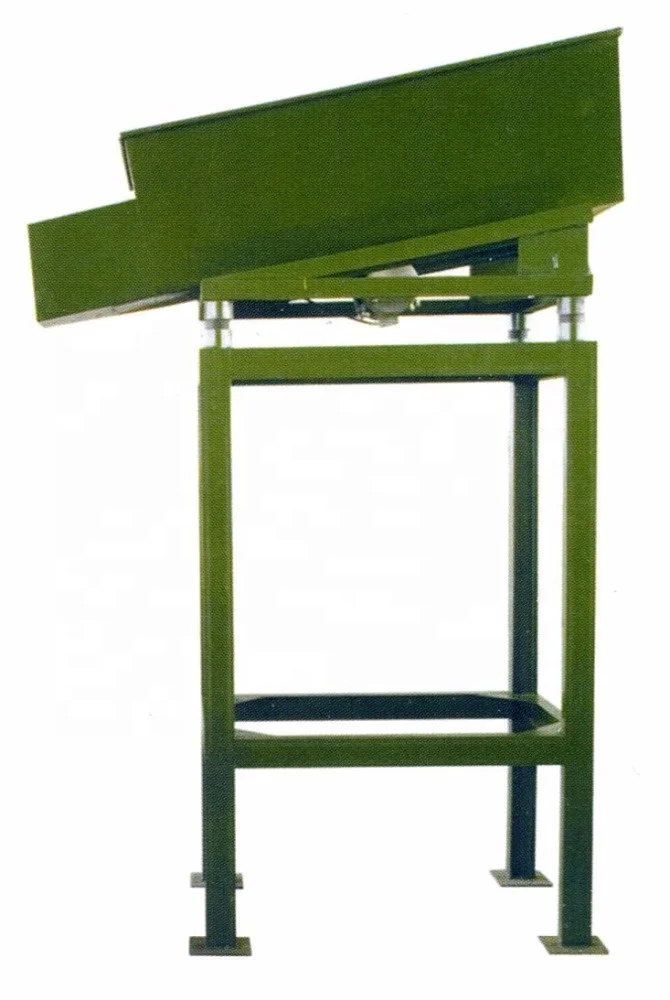

An optional device,
it is used to stock 400 – 500kgs of unthreaded nails, once the vibrating feeder is detected empty or less than the designed quantity in the hopper by a proximity switch (sensor), it begins to trigger the nail feed to the vibrating hopper from the vibrating tank.
Related Products
After Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
