Dry drawing type wire drawing machines, pully type/OTO type

Product Overview

Description

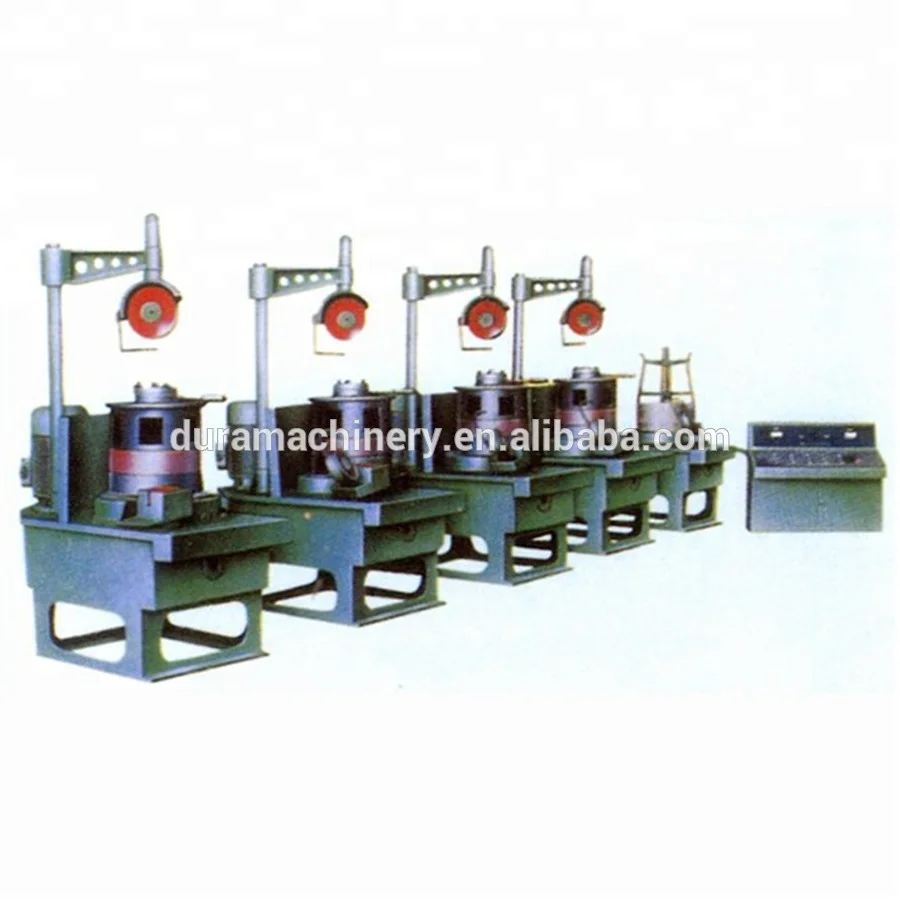

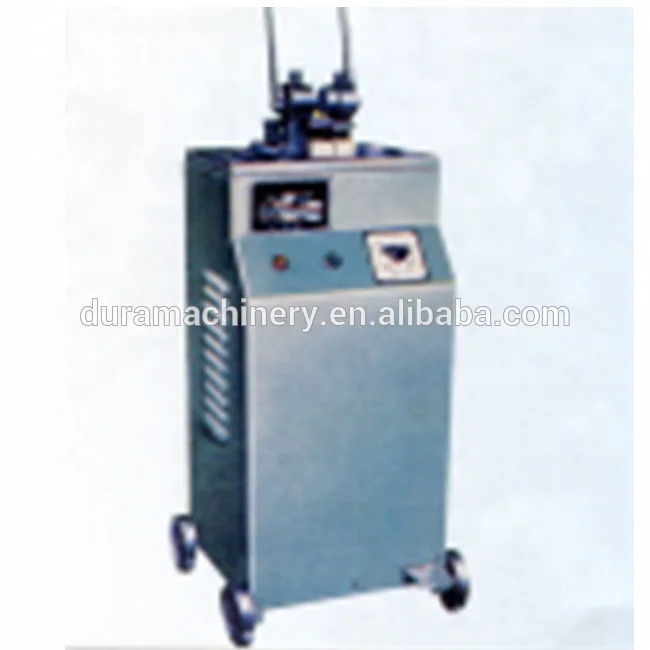

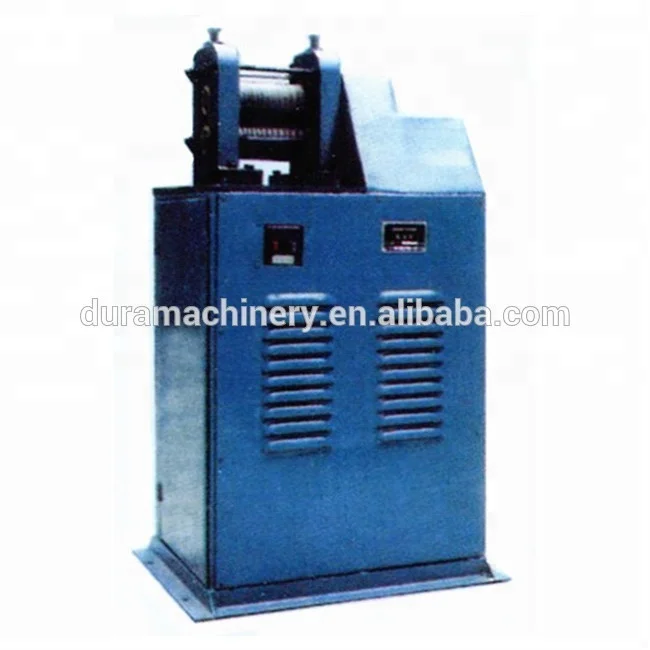

LW Series Dry Type Wire Drawing Machine



1. Usage

This Kind of machines ( pulley or OTO type wire drawing machine) is an ideal equipment used for drawing steel wire material of high-, medium- and low- carbon steel , as well as copper,alumium and alloy, the machines are applied to draw wire in the nail, screw and rivet making factories etc.



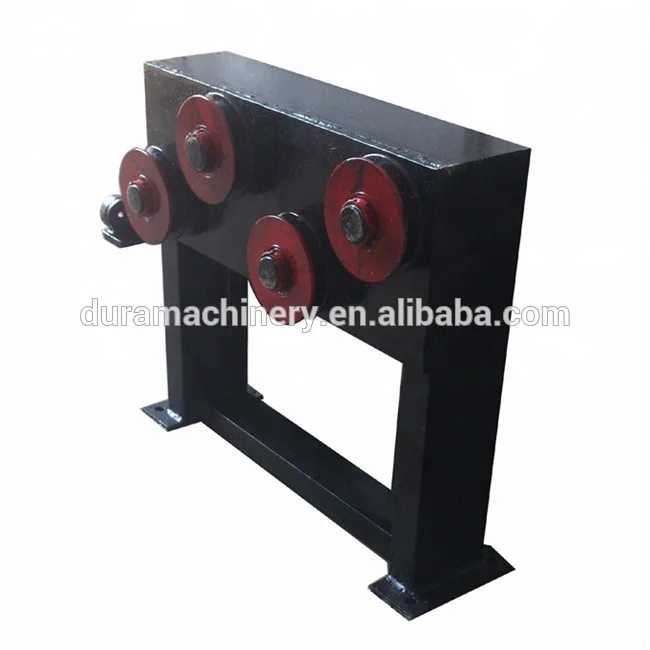

2. Structure: the equipment consist of main reduction box ,die casing , wheel frame ,

wire brace and electrical control system . the spinning drawing blocks are driven by JZT or Y series motor ,with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body , the gear pair are lubricated with oil.
In order to lower residual heat on the surface of the block ,the cooling device is installed in the inter-wall of the block.



3. The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.



Technical Specifications



Item	unit	Continuous Multi-block Type
Model		LW- n/ 560	LW-n/450	LW-n/350
Max. drawing pass (n)		n: 1 - 10	n: 1 – 8	n: 1- 8
Tensile strength of wire rod	Kg/mm2	>110	128	>140
Max. dia. of wire rod	mm	6.5	3.4	2.5
Min. dia. of finished wire	mm	2.5	1	0.75
Typical configuration	--	LW1- 6/560	LW1-7/450	LW1-6/350
Max. average reduction percent	%	30	20	21
designed total reduction percent	%	78-88.5	77.9	78
Max. speed of block	m/min	245 (block. 6)	346.9 (block. 7)	200 (block 6)
Total power	kw	18.5-30	7.5-11	7.5-11
weight	kg	2000	1500	1000
Overall dimensions	mm	1700x1150x1750	1520x810x1700	1400x800x1500
