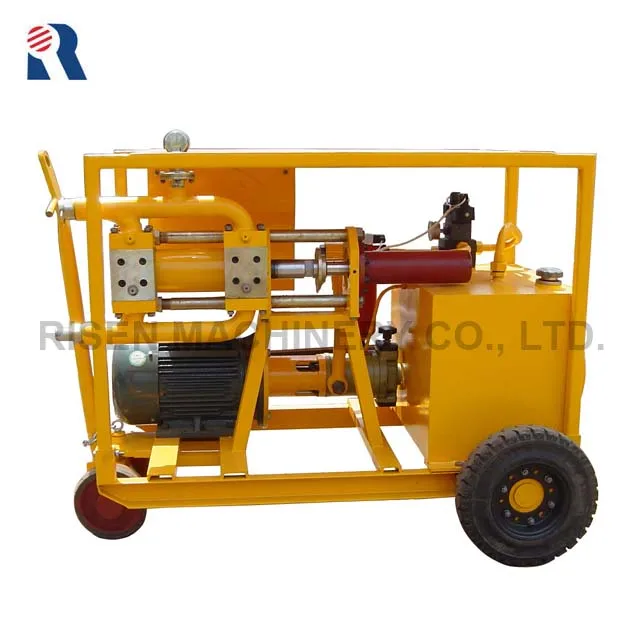

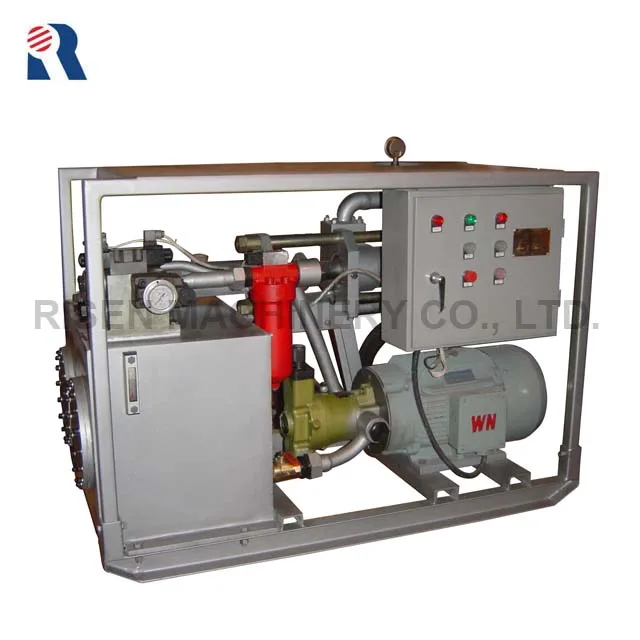

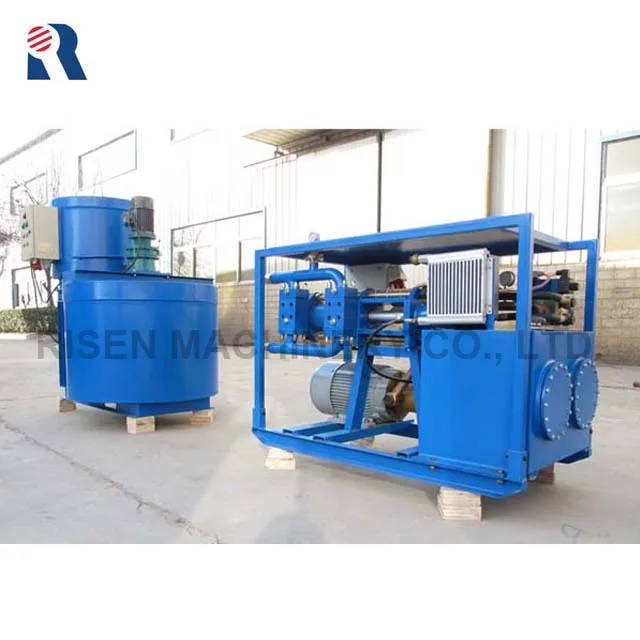

Full Hydraulic Cement Grout Pump High Pressure Grouting Injection Machine

Cement grout pump RISEN RG90S is a full hydraulic high pressure grouting injection machine with single-liquid grouting way applied for the high-pressure grouting. Its output can be automatically changed according to the grouting pressure. And, it is equipped with the mechanical reversing valve.

The RG90S is a kind of piston pump with single cylinder and double acting. Its main oil pump is a variable piston unit adjusted by hand, so the output of pump can be adjusted. It has many advantaged characters of simple structure, higher working pressure, mainly applied for grouting the cement slurry or similar slurry under the high pressure to do the sealing, strengthening and stabilizing of rock and soil in tunneling, mining, hydro-power project, slope stabilizing and underground project, etc.

The RG90S is a good work partner of our grout mixer RM250/700 or RM300/750.

SPECIFICATIONS FOR RISEN RG90S
Engine	Electric Motor Power	Kw	11
Main performance parameters	Max. Output	L/min	100
	Max. Work Pressure	MPa	10 (100 bar)
	Max. Frequency	rpm	45
	Grouting Cylinder Dia.	mm	110
	Grouting Cylinder Stroke	mm	150
	Suitable Ratio W/C		<0.35
	Weight	KG	580
	Overall Dimension (L×W×H)	mm	1505*770*1110
	Work Character		Output can be automatically changed according to the grouting pressure. Lower output with high pressure and big output with lower pressure. Suit for the technics needs to keep grouting pressure.

Main Features & Advantages

 Plunger pump as oil pump for the reliable work under high-pressure;
 Variable displacement pump for the low heat system and high system efficiency;
 Solenoid operated directional valve or mechanical direction valve can be chose according to the different work environment.
 Special electroplating for the work cylinder’s inner wall;
 Famous domestic or international standard hydraulic elements;
 IP55 100% new electrical motor;
 Electrical control box manufactured by thicker plate and standard Schneider electrical elements;
 Standard seal parts to ensure the excellent seal quality;
 Painted after sandblasting for a pretty appearance;

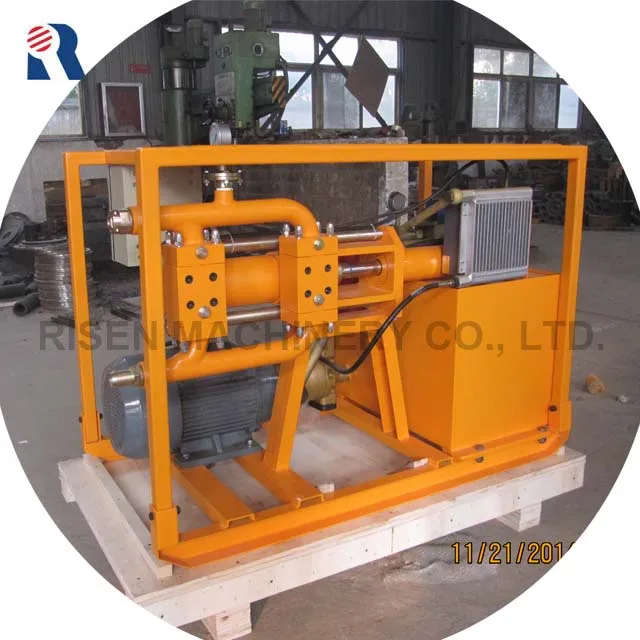

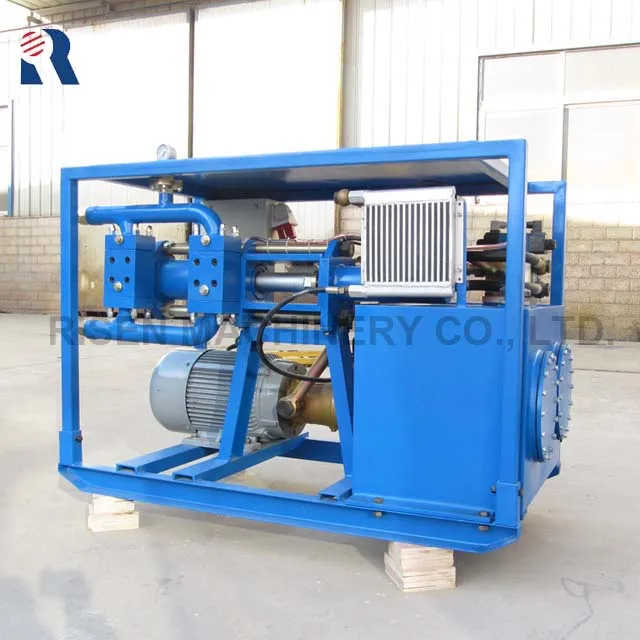

Factory Images

Detailed Images

Machine Parts

Name: Oil Pump Motor
Original: China
IP55, 100% new brand with good quality.

Main Features

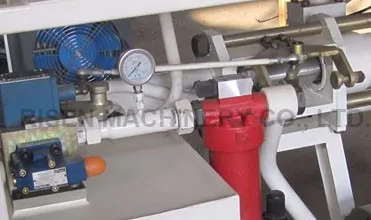

Name: Solenoid Operated Directional Valve
Original: China
RISEN RG90S was equipped with the Mechanical Reversing Valve.

Machine Parts

Name: Electric Control box, Electrical Elements
Original: China, Schneider (CHINA) Co.
RISEN uses the thick plate to make the box and install the standard Schneider elements which are the safe and trustable electrical elements.

Main Features

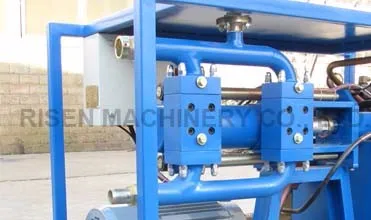

Name: Suction Inlet and Discharge outlet
Original: China
Single Suction Inlet and Discharge Outlet is equipped on the RISEN RG90S.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	159 (L) * 91 (W) * 141 (H)cm
Weight	610KGS
Packaging Details	The normal package of one RG90Y is one plywood crate (Estimated Size: L159*W91*H141cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
