Спиральная машина для производства картонных трубок для фейерверков
- Category: >>>
- Supplier: Zhejiang Jinshen Machinery Manufacture Co. Ltd.
Share on (445828946):
Product Overview
Description
1. Main structure is in thicker steels, much more stable and strong.
2. Main transmission adopt gear speed cut , low-noise, low-heating, high revolution, high torque.
3. Main motor adopt Vectorial high torque inverter speed adjusting.
4.hydraulic device to adjust belt tension
5.synchronous cutting system, high precision ball screw and high performance server motor drive.
6. pulse length fixation control to ensure cutting length
7. double PLC control system, IO output control and functional operation control separately,

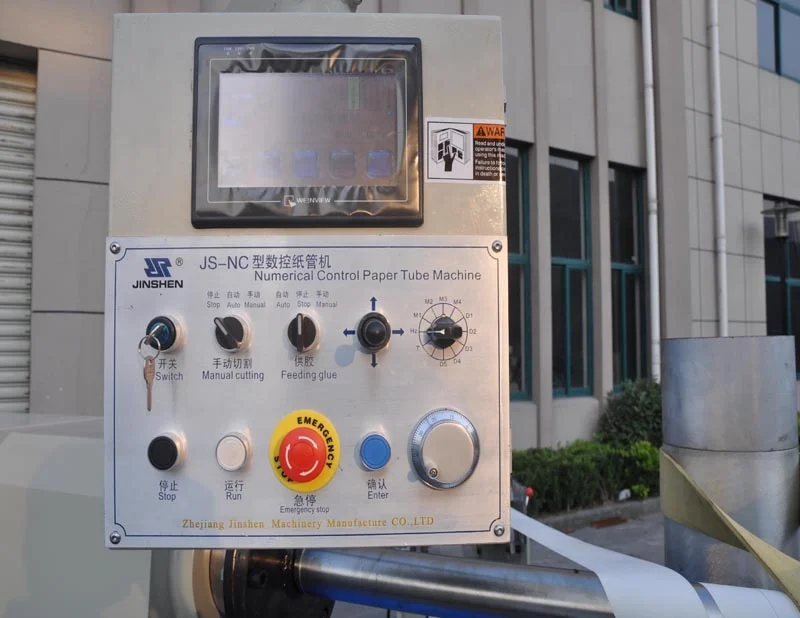

8. new control panel and big size colorful main machine touching interface
9. multi functional bottom paper feeding device, will stop once paper break
10. integral paper reel stand, glue stand, paper feeding assembly
"E" series of paper tube machine ,designing idea simple,compact,stable.
Standardly for making paper tube 6”(ID152.4MM), Max wall thickness under 15MM, biggest tube ID can up to 300MM.
Standardly for making paper tube 6”(ID152.4MM), Max wall thickness under 15MM, biggest tube ID can up to 300MM.

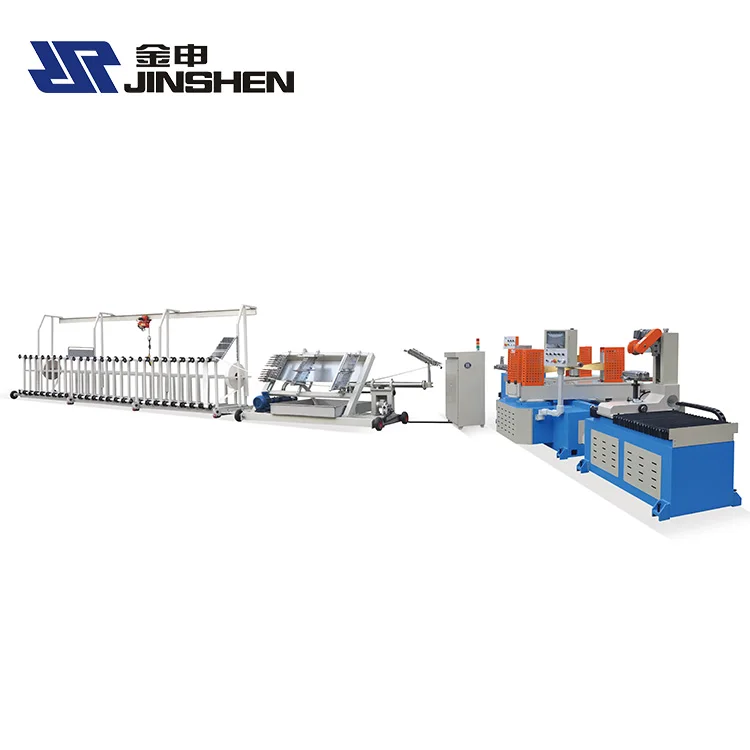

Use: All kinds of film winding ,paper winding ,all kinds of middle sized industrial paper core. Model can produce spiral paper tube with gluing ,winding, cutting together on.
Number of roll paper | 3-24 layer | Cutting blade motor | servo |
Max-diameter | 300mm | bearing | Wanxiang |
Min-diameter | 25mm | Wheel hub driving | 4wheels |
Max-thickness | 20mm | Controller | PLC |
Min-thickness | 1mm | Man-machine interface | We!view506T color touch screen |
Rolling core matrix fixed way | Franc fixation | Program edition | JS-E 1.0 |
Rewinding noses | Four noses double belt | Transducer | YASKAWA 22 KW |
Cutting way | Single blade cutting | Execute equipment | CHNT |
Gluing way | Double sides | Signal component | Omron |
Fixed length way | Infrared/coder | Pneumatical part | Airtac |
opertor | 1-4 | Angle adjusting machine | Ziguang low speed |
Productive speed | 3-20m/min | synchronized control | Servo |
Speed of adjust and control | transducer | Synchronized follow system | Have |
Mainframe size: L*W*H | 4400*2000*1600 | Auto falling tube shelf | Have |
Area space:L*W | 18000*6000 | Angle of belt | Auto |
Wheel hub diameter | 235mm | Belt adjust | manual |
Wheel hub height | 350-450 | Mainframe swing angle | Auto |
Min-tread | 900 | Stop when paper without | Auto |
Max-tread | 1150 | Auto giving glue | Gear pump 1.5KW |
Total weight | About 3000kg | Auto giving lubricating oil | Auto |
Main power | 22KW | Paper-shelf type | Integral |
Move speed | 1400r/min | belt | sailcloth |
Hub max speed | 80r/min | Hub output force | 8600n.m |
Reductor type | Wpo155 | Gearbox type | Jiefang 141 |
mainframe
bottom paper stand
paper reel and glue stand
