MLC130 Truck scale axle scale load cell weight sensor 100ton
- Category: >>>
- Supplier: Manyyear Technology Company Limited
Share on (445874420):
Product Overview
Description
Product Description
Truck scale axle scale load cell weight sensor 100ton
Model: MLC130
Category: Bridge Load Cell
Load range:25t, 40t, 50t, 60t, 75t, 100t, 125t

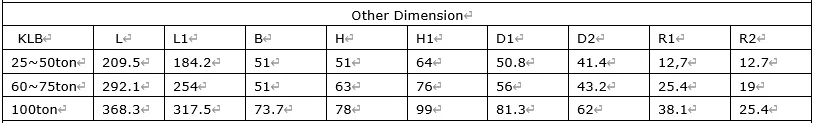

Dimension:210*64*51mm/292*76*51mm/368*99*74mm
Material: alloy steel, stainless steel
Application: truck scale, axle scale, floor scale,etc
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
Comprehensive error: | 0.2%FS | Output resistance: | 350±5Ω/700±5Ω |
Rated output: | 2±0.05mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
Non-linearity: | 0.2%FS | Excitation voltage: | 9~12VDC |
Hysteresis: | 0.1%FS | Compensated temp: | -10~+40℃ |
Repeatability: | 0.05%FS | Use temperature: | -35~+65℃ |
Creep: | 0.05%FS/10min | Temp effect on zero: | 0.05%FS/10℃ |
Zero balance: | ±1%FS | Temp effect on span: | 0.05%FS/10℃ |
Input resistance: | 350±5Ω/700±5Ω | Defend grade: | IP66 & IP68 |

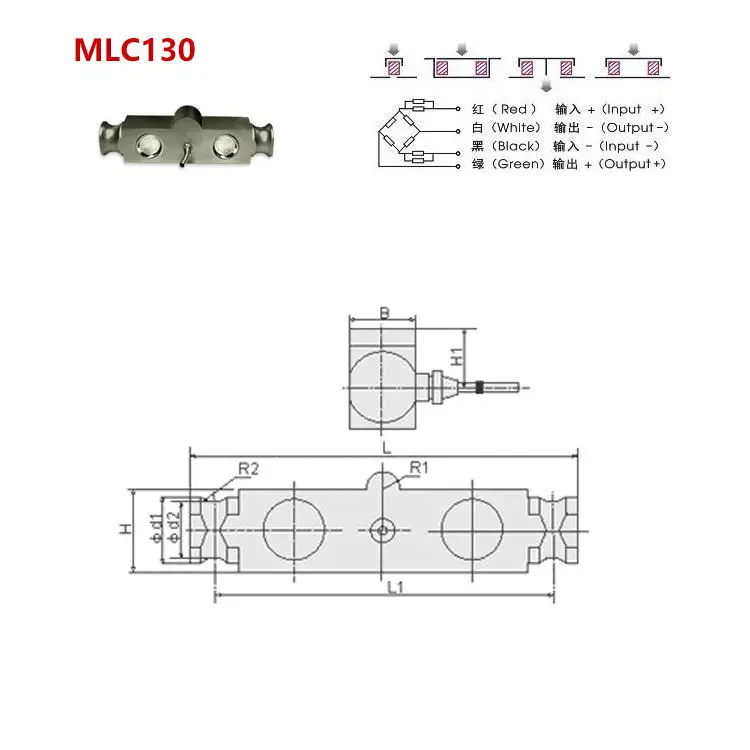

Product Assembly Structure
Blow force structure is for reference.
Product Process

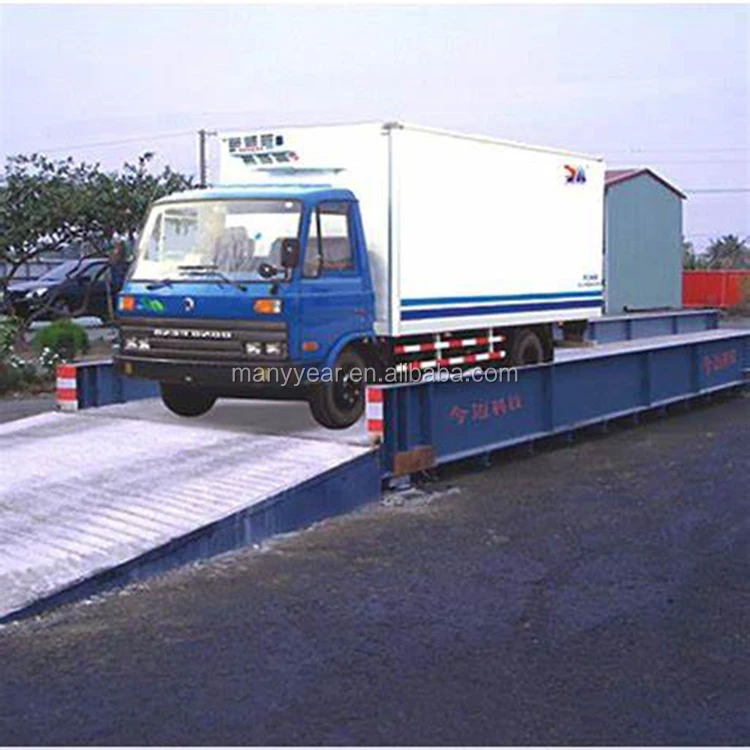

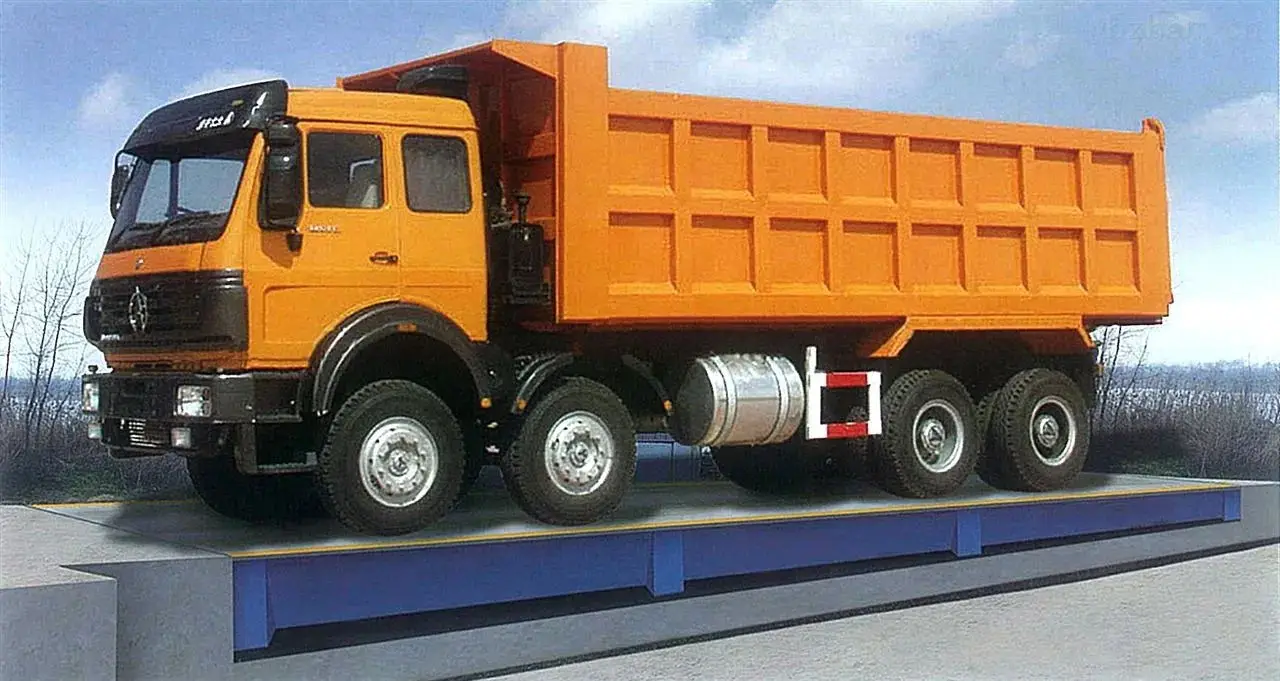

Product Application
Delivery and Shipment
Related Products
Company Introduction
MANYYEAR Technology was established in 2008.
We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products.
We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity.
Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications.
We provide OEM and ODM services to our customers.
We provide free design assistance to our customers.
