Finest water fog mist nozzle sprayer
- Category: >>>
- Supplier: Shenzhen Ideal Spray Technologies Ltd.
Share on (446296594):
Product Overview
Description
(Fine Fog Spray nozzles)
(Anti drip fog Spray nozzles)
These fog misting nozzles/Fog Sprayer are designed to accomplish an extremely high emission velocity with a low flow rate. Liquids are atomized into aerosol particles, which flash-evaporate evenly into the environment, creating the fine mist. The nozzles can atomize liquid even in climates with fairly high relative humidity. The evaporation of 1kg of water gives the same cooling effect as the melting of 7 kg of ice, which is the most nature way to lower the temperature. Landscaping |

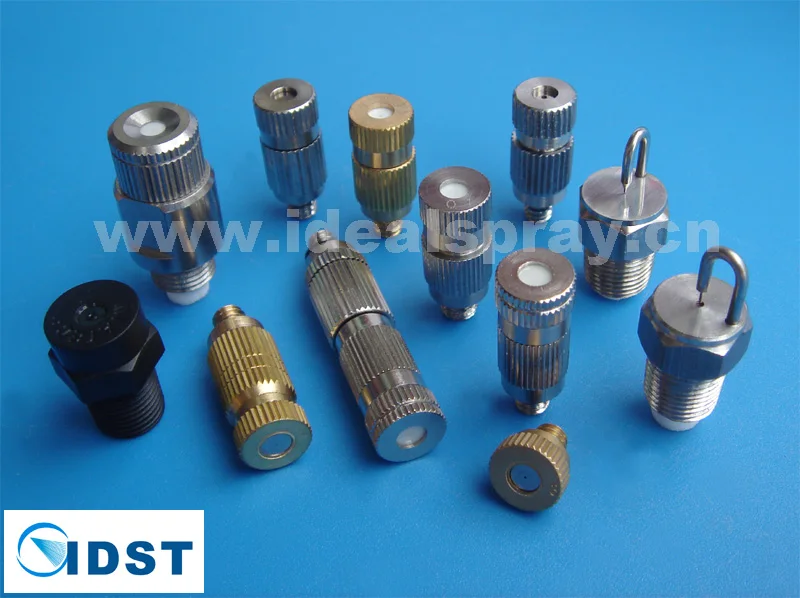

1.Fine and Washable Fog Nozzle
Fog Cooling System,Humidifying,Misting, Mist Maker,Dust Control
2.Accessory with:
Filter and anti-drip,Ceramic orifice
3.Thread Size:
10/24,12/24 UNC,1/4'',1/8''
4.Orifice Diameter:
0.1mm-0.5mm
5.Nozzles Design Features:
*Ceramic insert
*Outstanding atomization
*Drip-free performance
*50 micron polypropylene filter
*Safety wire hole available
*Minimum operating pressure 100 psi (7 bar)
6.Fog Mist nozzle's spray Characteristics:
Mist at low pressure; fog nozzles work at high pressure
7.Spray pattern:
Cone-shaped Fog
8.Technical data sheet for Fog Misting Nozzles:
Type | Size dia./¢ | Thread | Pressure | Flow Rate |
FGC10 | 0.10mm/0.004" | 10/24,12/24,3/16" | 20-70bar | 0.016-0.040L/Min |
FGC15 | 0.15mm/0.006" | 10/24,12/24,3/16" | 20-70bar | 0.029-0.046L/Min |
FGC20 | 0.20mm/0.008" | 10/24,12/24,3/16" | 20-70bar | 0.049-0.089L/Min |
FGC30 | 0.30mm/0.012" | 10/24,12/24,3/16" | 15-70bar | 0.065-0.145L/Min |
FGC40 | 0.40mm/0.016" | 10/24,12/24,3/16" | 7-70bar | 0.056-0.178L/Min |
FGC50 | 0.50mm/0.02" | 10/24,12/24,3/16" | 7-70bar | 0.077-0.248L/Min |

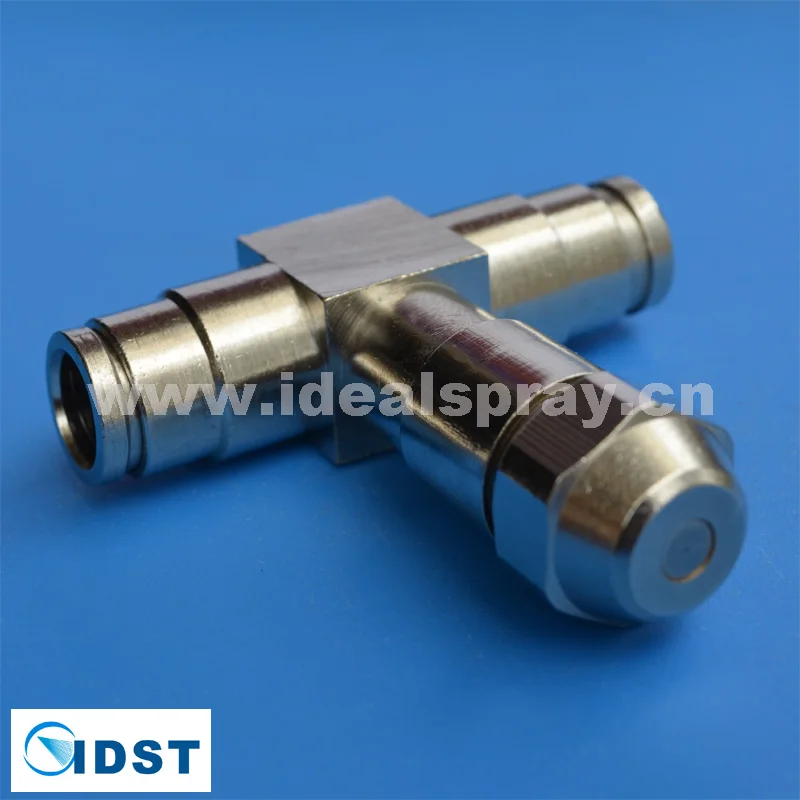

(Metallic Fog nozzle)

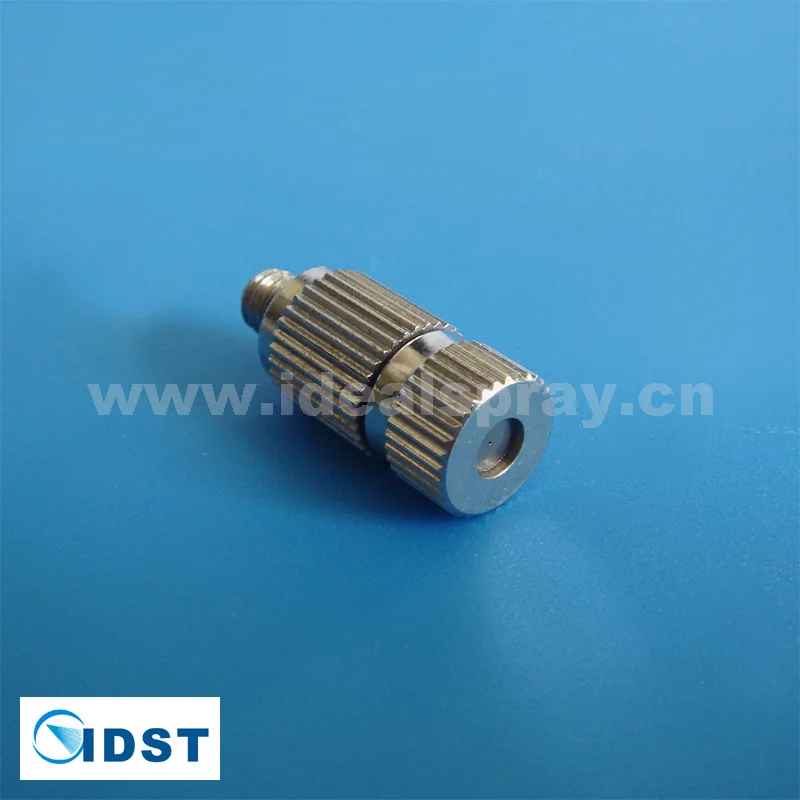

(Brass Fog Nozzle)
We make complete fog/mist cooling system, e.g.: Fog Machine, High Pressure Pipe, Thread Connetors and Slip Lock Fittings, Fog/mist Nozzles,water filter and Accessories.
Please call us or email to us, we will reply you soon!
Tel: +86 0755 81099407
E-mail address: sales at idealspray.cn
Need a nozzle fast? Call us on 0086 13728677518 Same day or expedited delivery is available from our extensive inventory. We keep thousands of different nozzles in stock every day and can deliver to almost any country worldwide. Custom nozzles can be created to meet your precise needs. |
