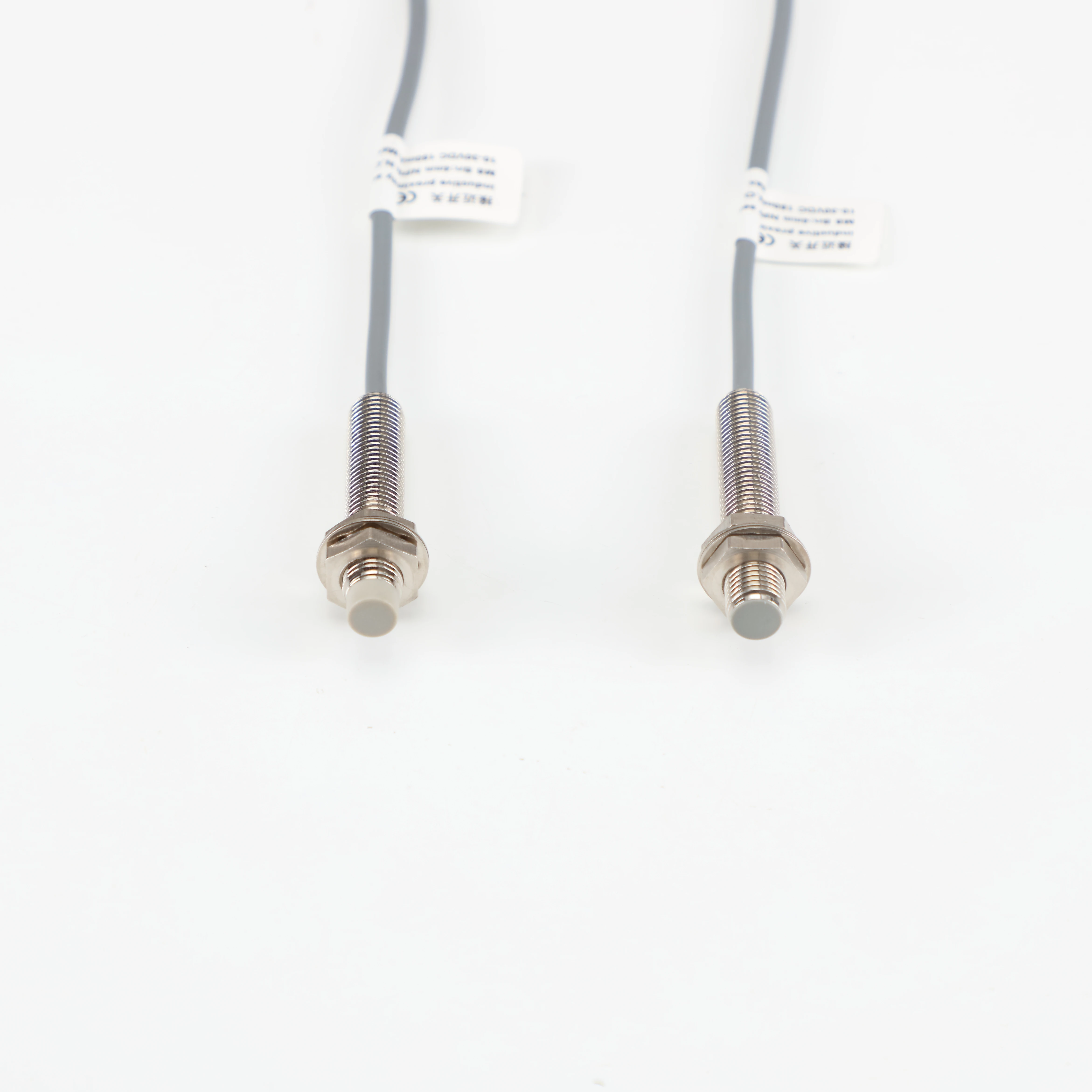

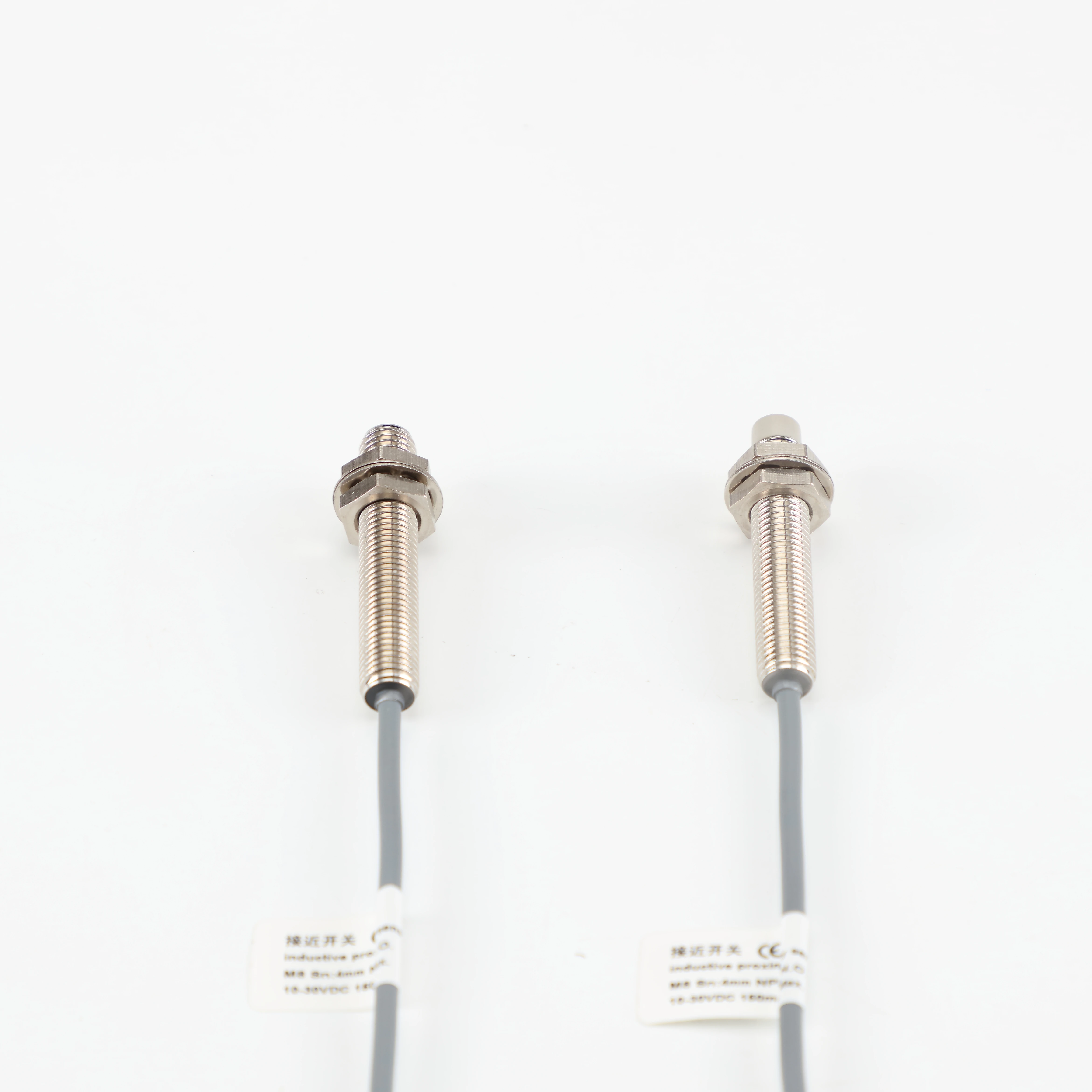

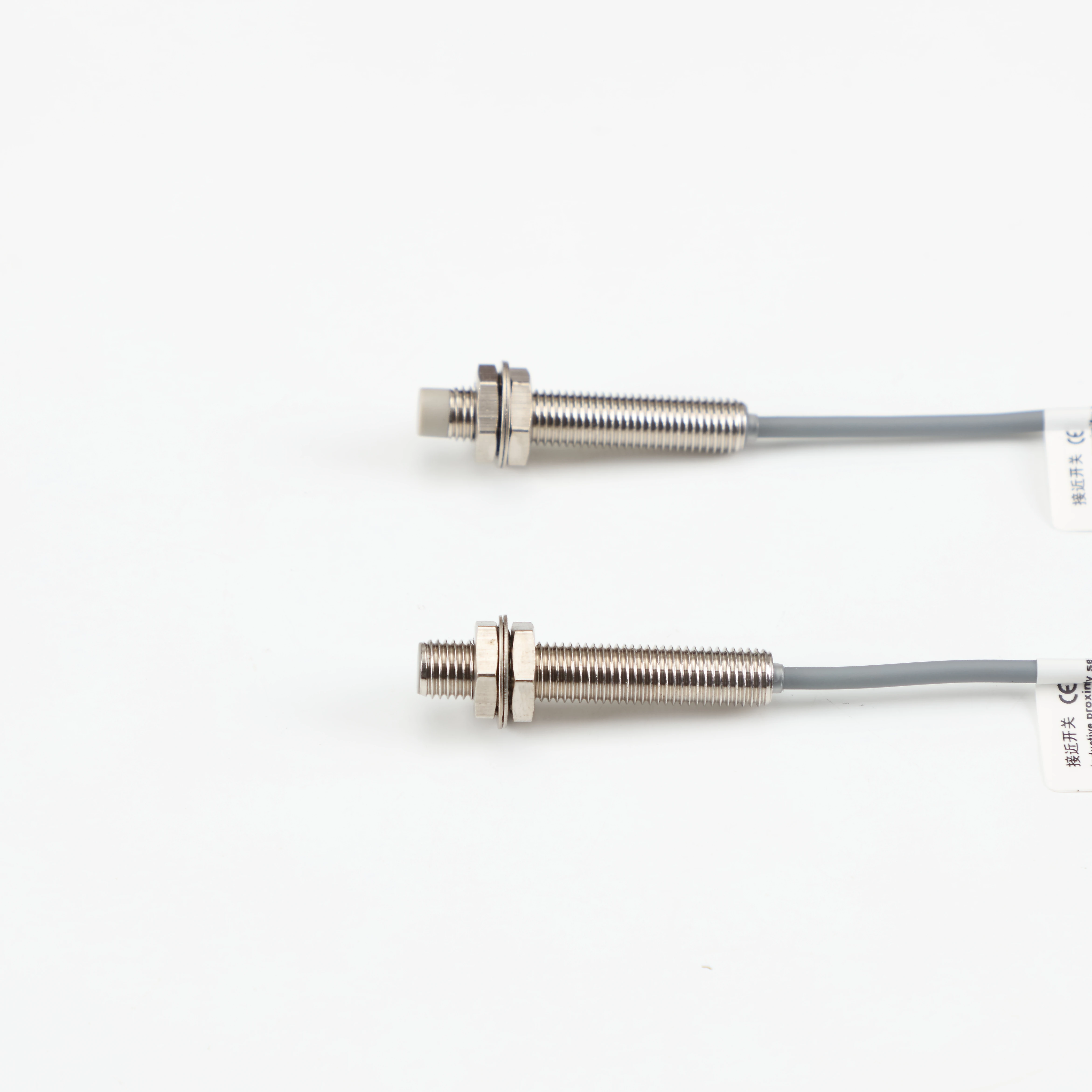

M8 DC 10 to 30V Nonshielded normal open With cable 2 wire inductive proximity switch

Product Overview

Description

  (M8 With cable) 2-wire inductive proximity switch )







1.Specification

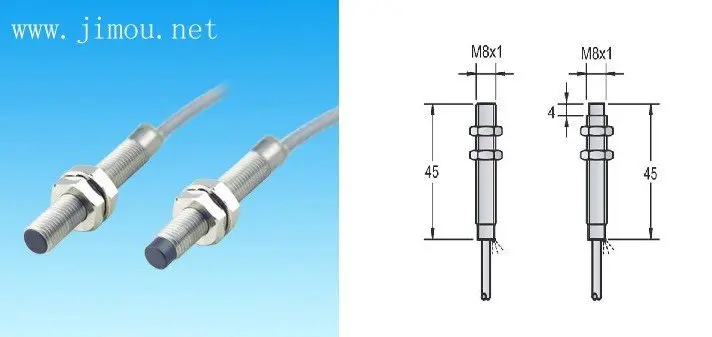

Diameter	M8
Shielded    Non-shielded	Shielded	Non-shielded
Switching Distance Sn:(mm)	1mm / 2mm	2mm / 4mm
Housing Material	Stainless steel
With LED    Without LED	With LED
Operating Voltage	10-30VDC
Ripple Vpp	<10%
Continuous load current	3-100mA
Leakage current	<0.8mA
Voltage drop(at lcont.)	<6V / <4V
Reverse polarity protection	Yes / No
Short-circuit protection		Yes
Overload trip point		>120mA
Transient protection	2Kv,1ms,1 kohm
Switching frequency	2KHz
Switching hysteresis	<15%(Sr)
Temperature Drift	<10%(Sr)
Repeat accuracy	<2%
Operating Temperature	-25°C - +70°C
EMC	RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face	PBT
DC 3wire 10-30V NPN N.O.
DC 3wire 10-30V NPN N.O.
DC 3wire 10-30V PNP N.O.
DC 3wire 10-30V PNP N.C.
DC 4wire 10-30V Changeover NPN(N.O.&N.C.)
DC 4wire 10-30V Changeover PNP(N.O.&N.C.)
DC 2wire 10-60V N.O.	IA1T-S08 * C-O2A2	IA2T-S08 * C-O2A2    7
DC 2wire 10-60V N.C.	IA1T-S08 * C-C2A2	IA2T-S08 * C-C2A2    8
DC 3wire 10-55V NPN N.O.
DC 3wire 10-55V NPN N.C.
DC 3wire 10-55V PNP N.O.
DC 3wire 10-55V PNP N.C.
DC 3wire 5-36V NPN N.O.
DC 3wire 5-36V NPN N.C.
DC 3wire 5-36V PNP N.O.
DC 3wire 5-36V PNP N.C.
DC 4wire 5-36V Changeover NPN(N.O&N.C.)
DC 4wire 5-36V Changeover PNP(N.O&N.C.)
	Wiring diagram No.
Cable2M (PVC)	3Φ 2*0.15
Weight (g)	Approx.47g
