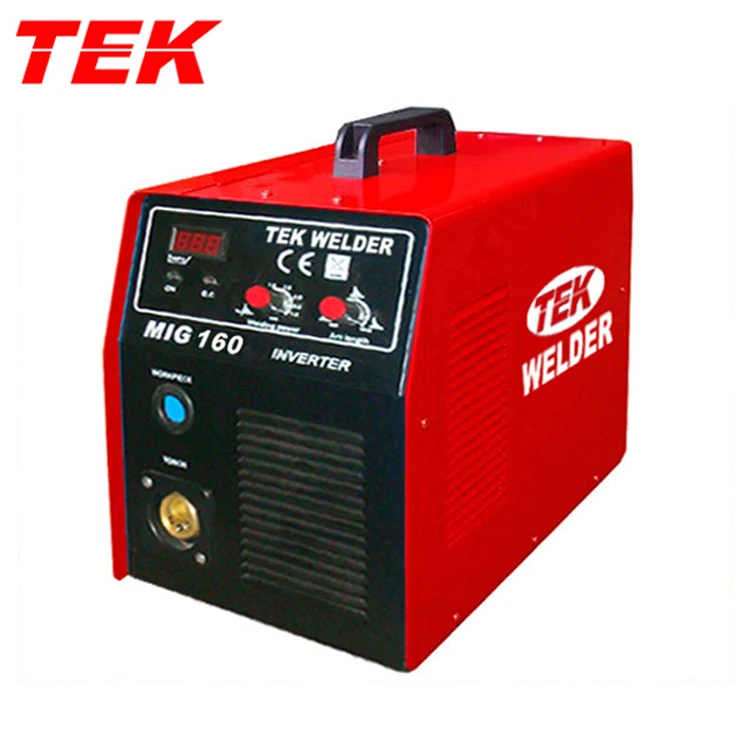

MOS MIG160 NBC160 MAG160 FCAW160 GMAW160 MIG 160 NBC 160 MAG 160 FCAW 160 GMAW 160 Mosfet Portable CO2 Shield Welding Machine

Product Overview

Description

MOS MIG160 NBC160 MAG160 FCAW160 GMAW160 MIG-160 NBC-160 MAG-160 FCAW-160 GMAW-160 Mosfet Portable CO2 Shield Welding Machine OEM

2. Cost saving and efficiency improving
3. With wire machine, and easy and considerable for operation
4. High weling speed, high arcing success rate
5. Continuous and discontinuous welidng function
6. Automatic voltage pulsation compensation capability
7. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
8. Little spatter, uniform weling pool, good welding shape



TECHNICAL SPECIFICATIONS
Model	MOS MIG160 NBC160 MAG160 FCAW160 GMAW160
Power voltage frequency	Single phase 220V ±15% 50Hz-60Hz
Input current	12.6A
Power capacity	5KVA
Rate output current	50-160A
Output Voltage	16.5-26.5V
Duty cycle	60%
Power factor	0.93
Efficiency	85
Insulation class	F
Type of wire feeder	Spool-gun
Overall dimension	415×223×320mm
Protection class of case	IP21
Feeding speed	2.7-11m/min
Pastflow time	1±0.5
Diameter of coil	102mm
Weight	12kg
Diameter of earth cable	2.5m
Wire Dia.	0.8/1.0
