Tongyada brand drawbar trailer with twist locks in good price for sale
low bed full trailer
We are a manufacture of trailer with more than 20 years experience in north of China.Design and production is our advantage.
Full trailer, also known as tractor trailer. Mainly used in ships, ports and routes, roads, hubs, Bridges, tunnels, multimodal transport logistics system matching.
1. exclusively in multimodal transport, for all kinds of container transportation and other housing. Can be long-term repeated use, with enough strength.
2, the whole trailer transport, can a tractor (tractor truck) checked 2-3 full trailer, or while waiting in line for long distance delivery van tractor without waiting for at the same time, do not need to change from the inside out, the goods transfer to reduce time and cost.
We are a manufacture of trailer with more than 20 years experience in north of China.Design and production is our advantage.
Full trailer, also known as tractor trailer. Mainly used in ships, ports and routes, roads, hubs, Bridges, tunnels, multimodal transport logistics system matching.
1. exclusively in multimodal transport, for all kinds of container transportation and other housing. Can be long-term repeated use, with enough strength.
2, the whole trailer transport, can a tractor (tractor truck) checked 2-3 full trailer, or while waiting in line for long distance delivery van tractor without waiting for at the same time, do not need to change from the inside out, the goods transfer to reduce time and cost.

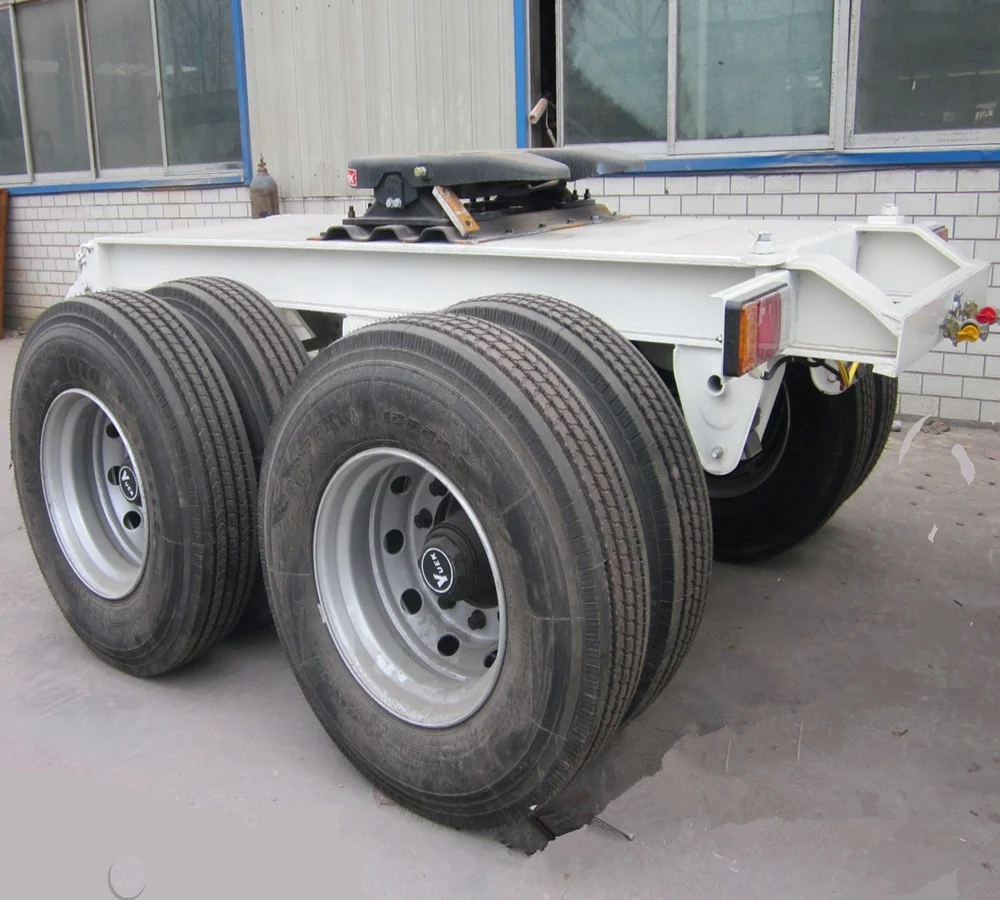

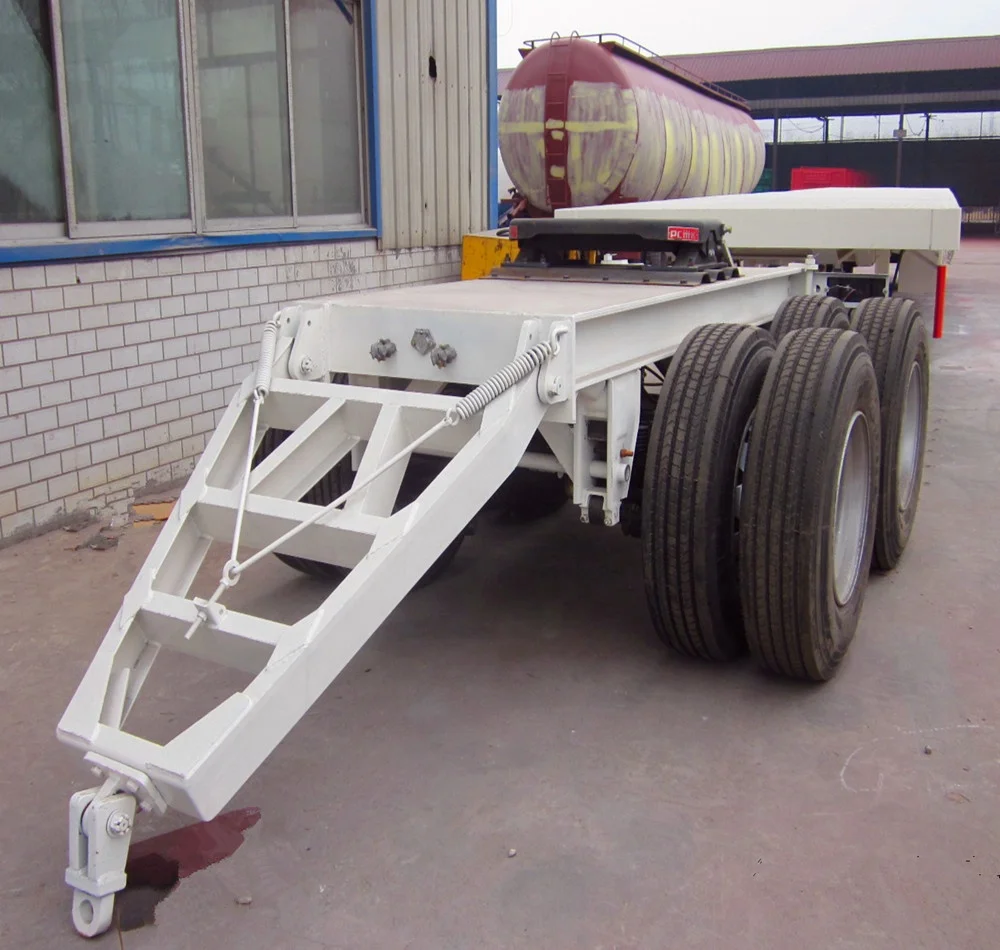

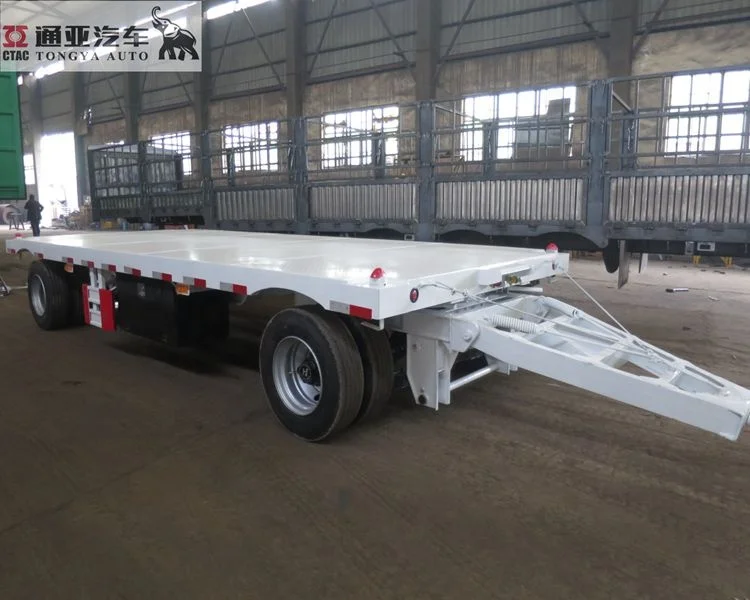

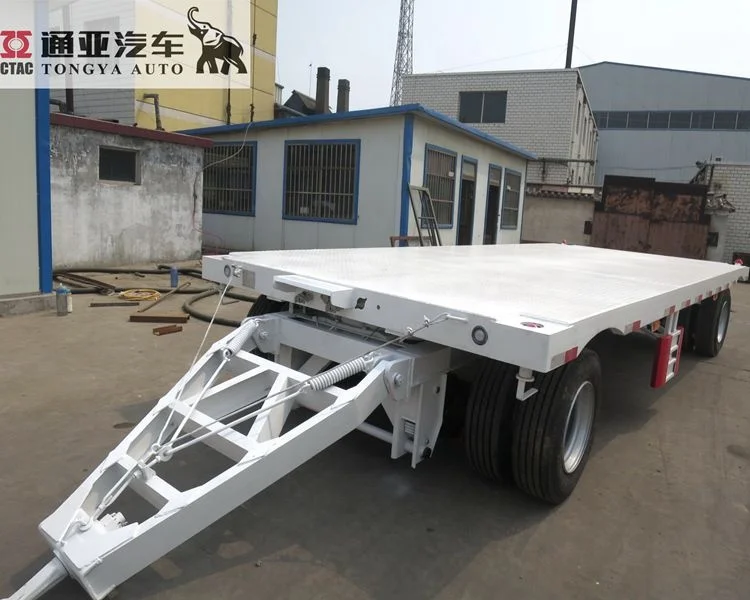

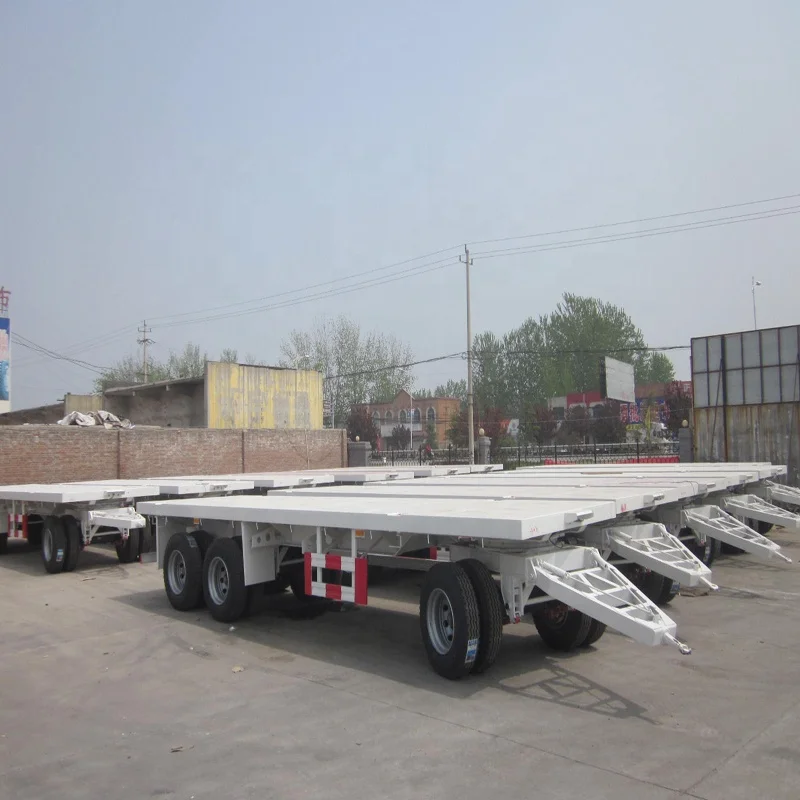

Detailed Images
Tare Weight | About 5T | ||||||
Dimension | 7300mm*2490mm*1200mm | ||||||
Loading Capacity (T) | 20 T | ||||||
Axle | 13 T, FUWA /TONGYA/ ZY or other Brand | ||||||
Rim | 6.5-17.5 | ||||||
Tire | 235/75R17.5 | ||||||
Suspension | Mechanical suspension (Germany Type or America Type) | ||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer | ||||||
Turntable | With | ||||||
Draw Bar | length is 1.5m | ||||||
Tractor Hook | DN50 | ||||||
Support leg | Without | ||||||
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . | ||||||
Side beam | 16mm channel steel ( Material is Q235steel ). | ||||||
Bottom Platform | 3mm, also can choose diamond steel plate | ||||||
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks (Special for Export market) | ||||||
ABS | Optional | ||||||
Twist Locks | Optional, Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) | ||||||
Valve | WABCO valve | ||||||
Light | LED light (Special for Export market) | ||||||
Voltage | 24V | ||||||
Receptacle | 7 ways (7 wire harness) | ||||||
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||||
Shipping Terms: | 40HQ container. | ||||||
specific parameters can be changed according to customer requirements
