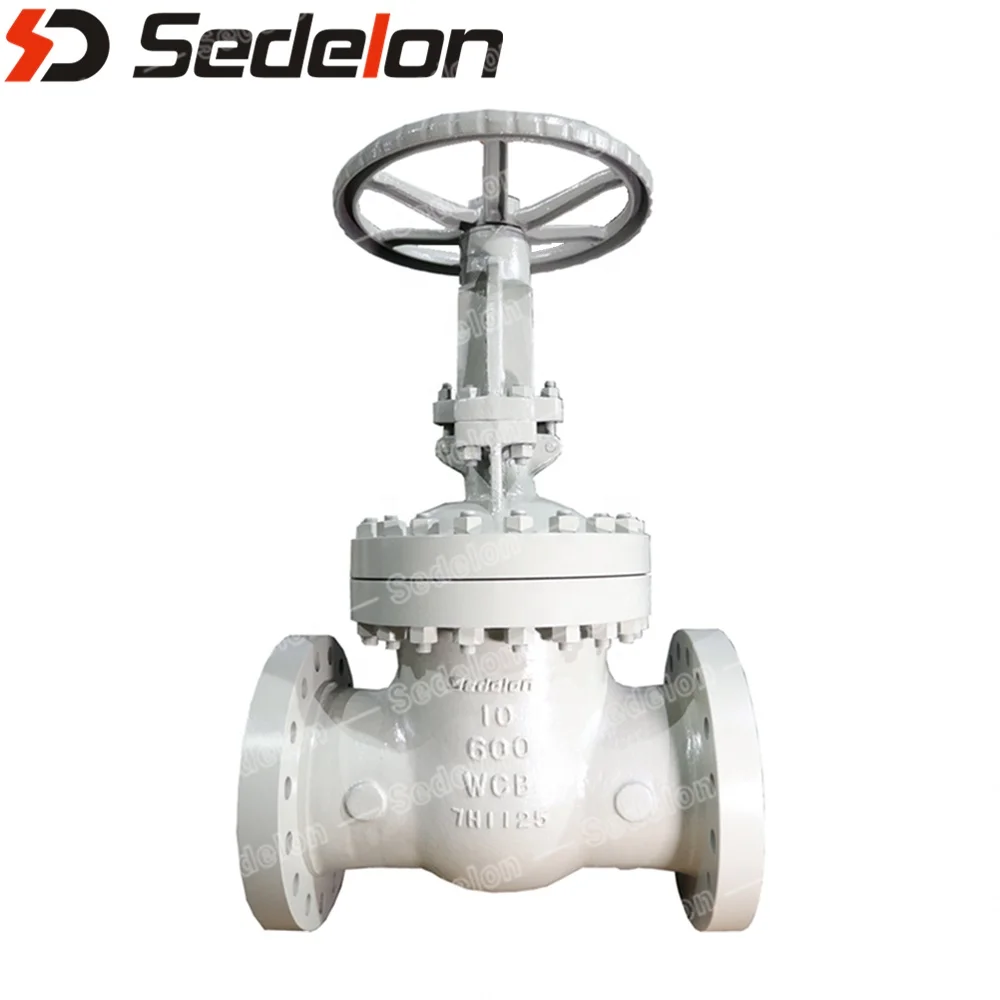

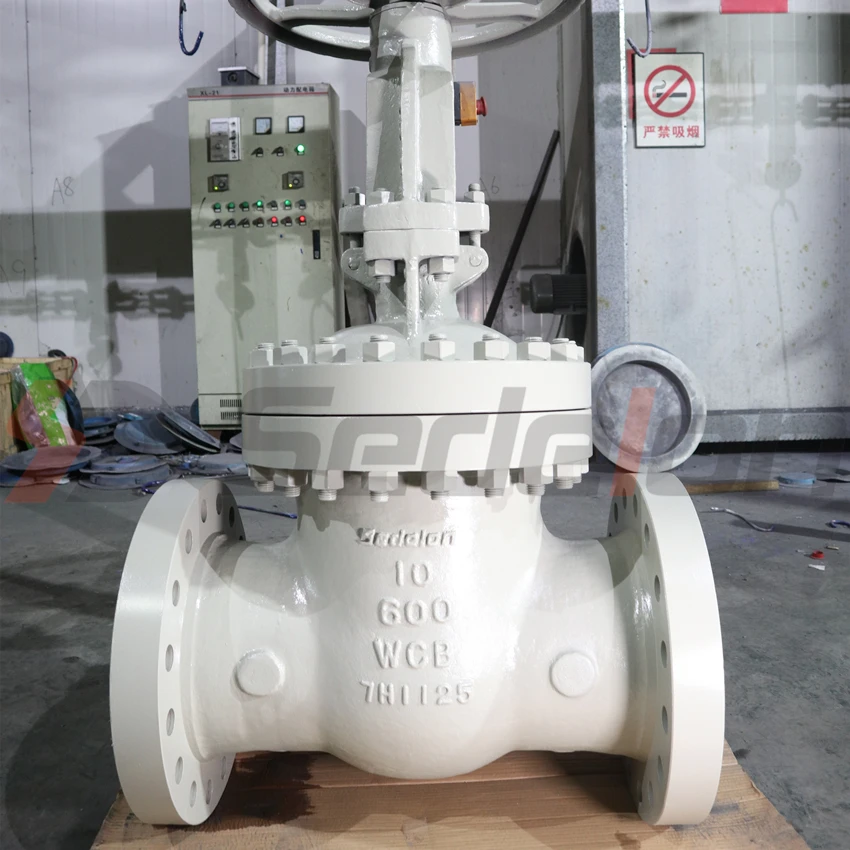

Cast steel WCB gate valves API6D standard 10inch class 600LB

Cast steel WCB gate valves API6D standard 10inch class 600LB

Feature:
CLASS 150~1500 CAST STEEL GATE VALVE
OS&Y,Rising stem,Flexible Wedge
Bolted Bonnet,Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M

Standards compliance
Design and Manufacture:ANSIB16.34,API600 API6D,API603,BS1414
Face to face(end to end):ANSIB16.10,API6D
Flanged connection:2″~24″to ANSIB16.5,22″,26″~36″to MSS-SP-44 to API605 on Request
Test and inspection:API598,API6D
Butt welded end:ANSIB16.5
