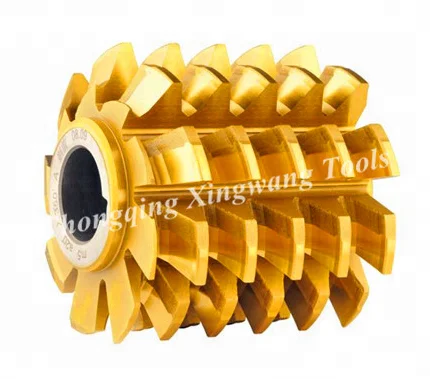

Involute Spline Gear Hob Cutter

Product Overview

Description

HSS Involute Spline Gear Hob Cutter:

1.Module: m0.5-m10

2.Material: M2/M35/M42

3.Accuracy: Class A/B

4.Pressure Angle(α): 20°-45°

5.Thread: Single

6.Direction: Left Hand/Right Hand

7.Coating: TiN/TiAlN



8.Specifications(mm) of Spline Gear Hob:



Module	Outside Dia.	Overall Length	Hole Dia.
0.5	45	32	22
0.75
1	50	35
1.25		40
1.5		50
1.75	63	63	32
2
2.5
3	71	71
3.5
4
5	90	90
6	100	100
8	112	112	40
10	125	125



We can provide all kinds of gear hobs, gear shaper cutters and gear shaving cutters as your drawings and workpiece parameters.
