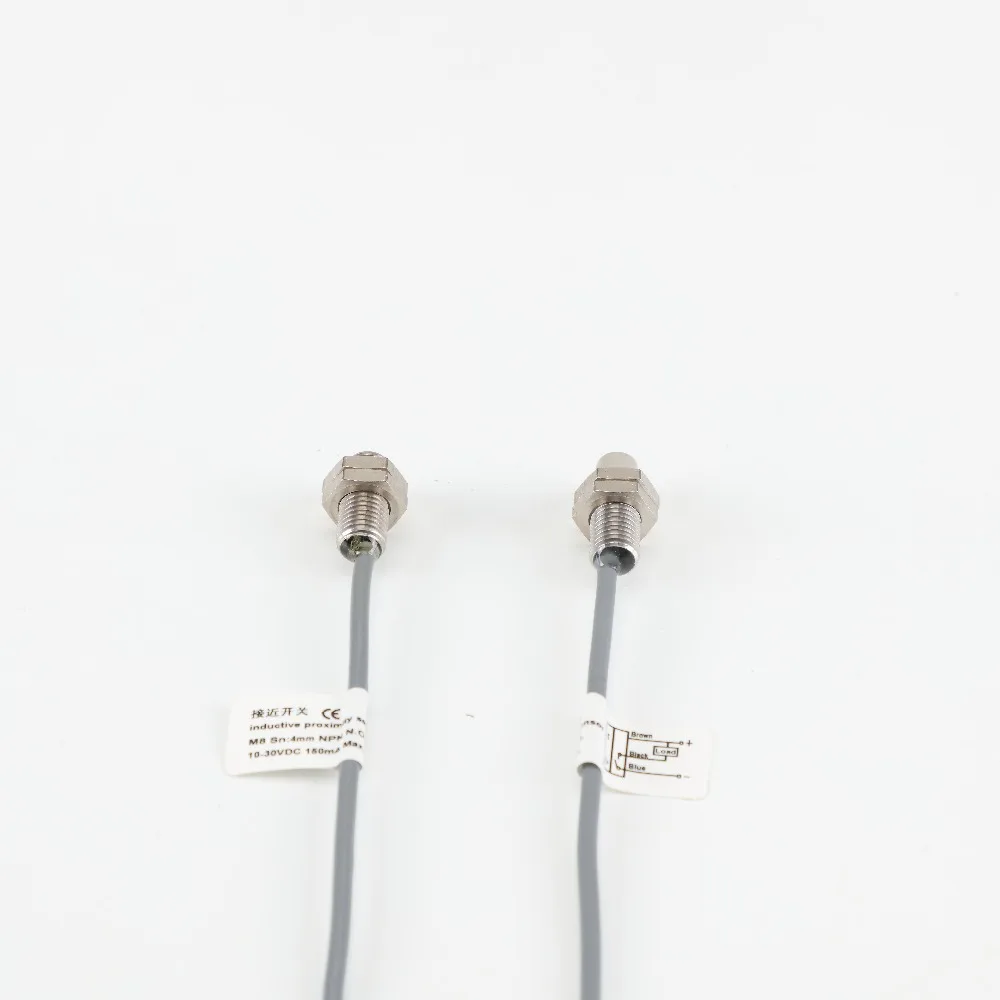

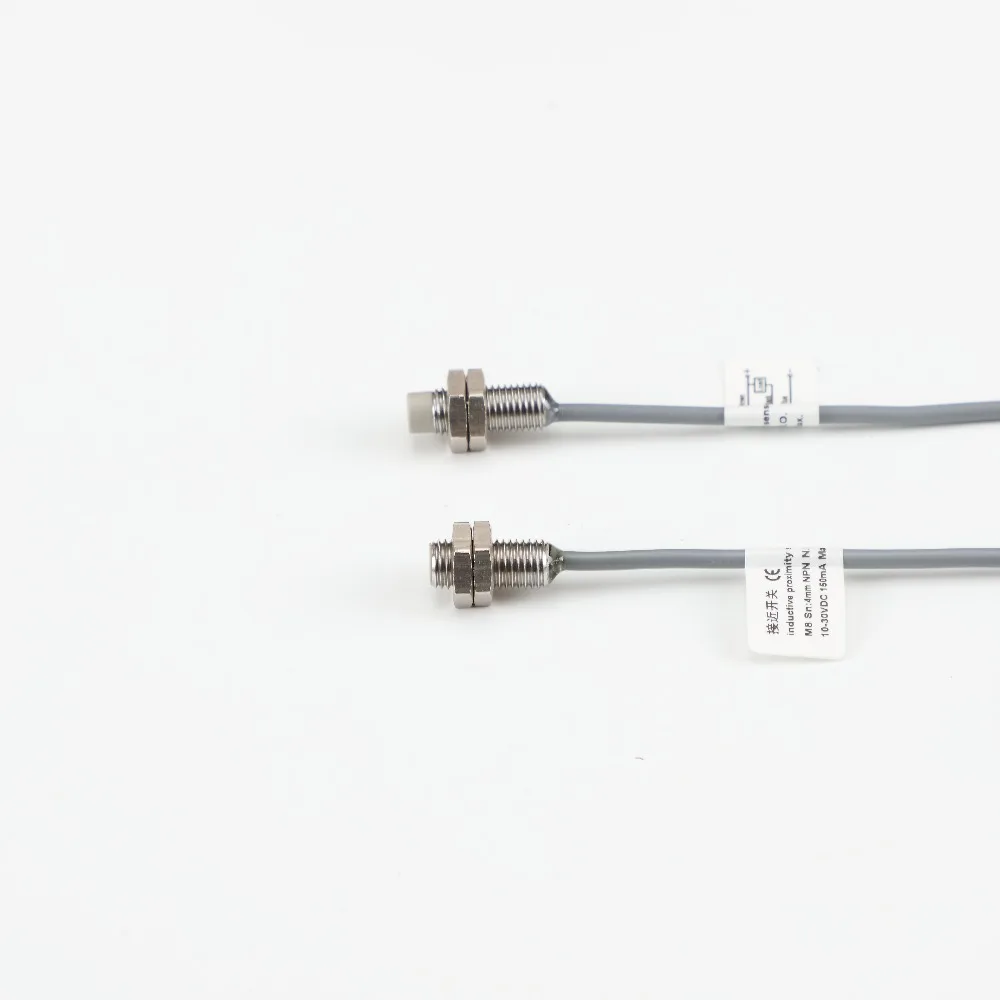

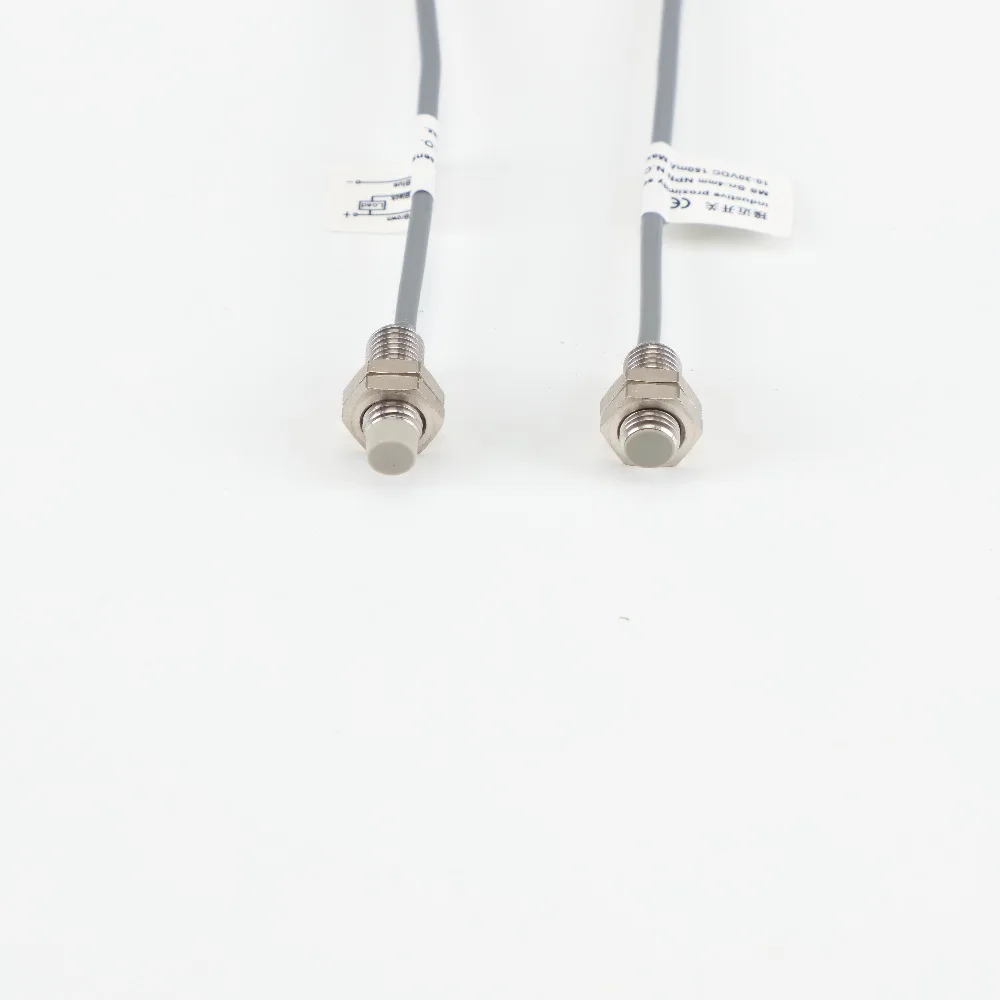

DC Mini Shorter sensor proximity (M8 with cable)

Diameter

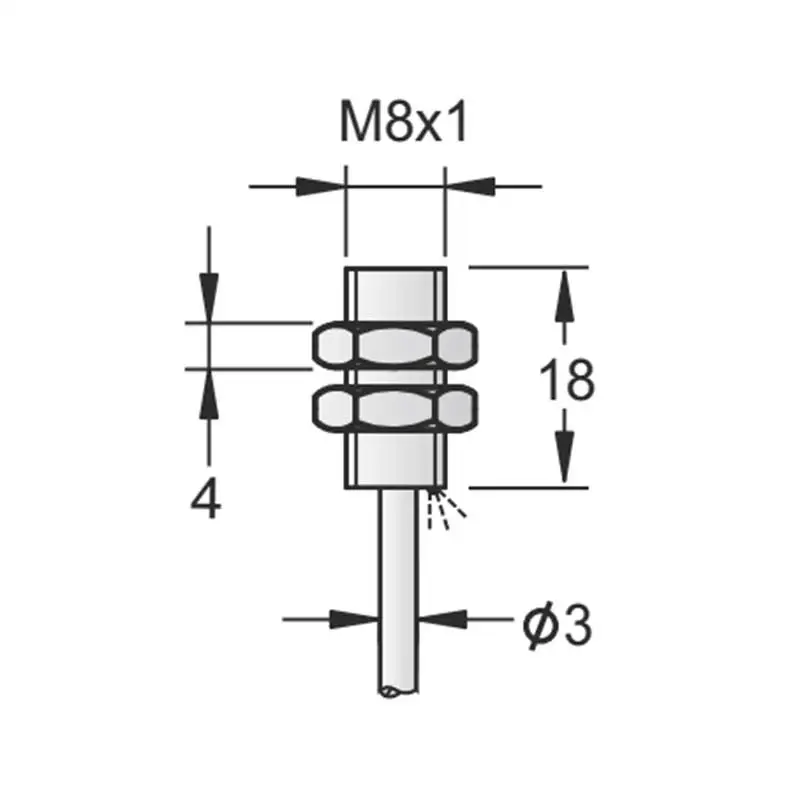

M8

Shielded    Non-shielded

Shielded

Switching Distance Sn:(mm)

1mm / 2mm

Housing Material

Stainless steel

With LED    Without LED

With LED

Operating Voltage

10-30V

Ripple

<10%

No Load Current

<10mA

Max.Load Current

150mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

2KHz

Response Time

0.1ms/0.1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<1.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C - +70°C

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

180mA

EMC

RFI>3V/M / EFT>1KV / ESD>4KV(contact)

Shock/Vibration

IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2

Material Active Face

PBT

DC 3wire 10-30V NPN N.O.

       IA1T - S08 * N - O3R2

1

DC 3wire 10-30V NPN N.C.

       IA1T - S08 * N - C3R2

2

DC 3wire 10-30V PNP N.O.

       IA1T - S08 * P - O3R2

3

DC 3wire 10-30V PNP N.C.

       IA1T - S08 * P - C3R2

4

Wiring diagram No.

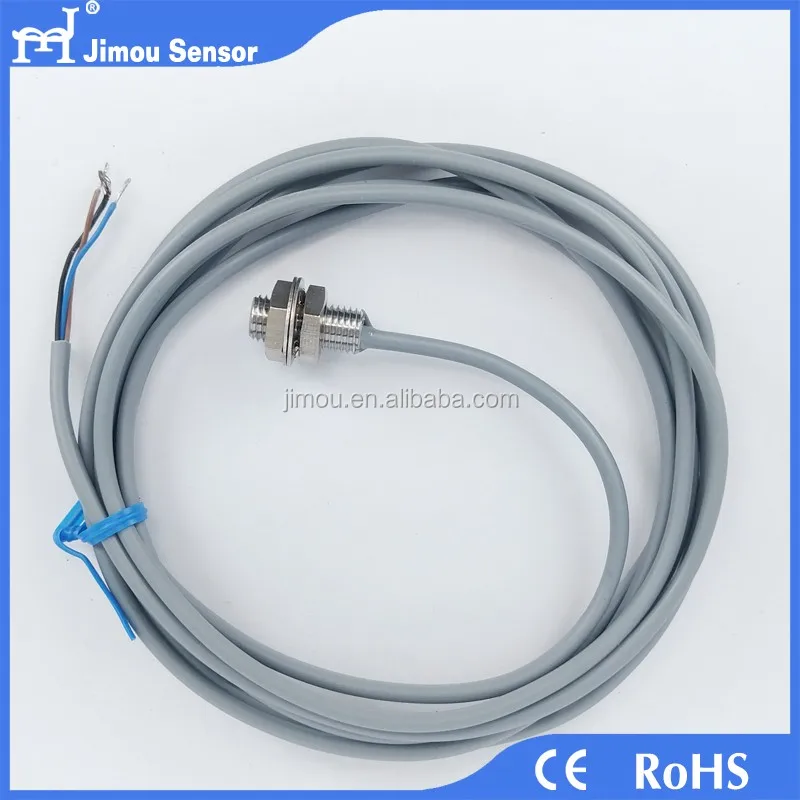

Cable2M (PVC)

3Φ 3*0.15

Weight (g)

Approx.35g
