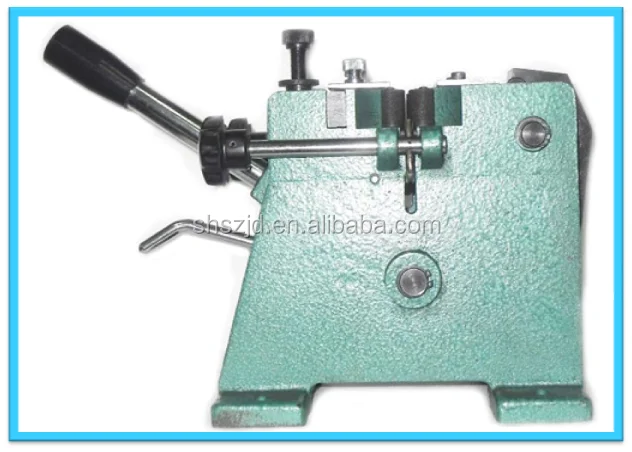

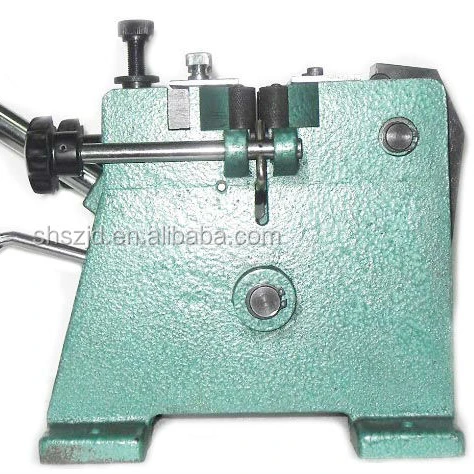

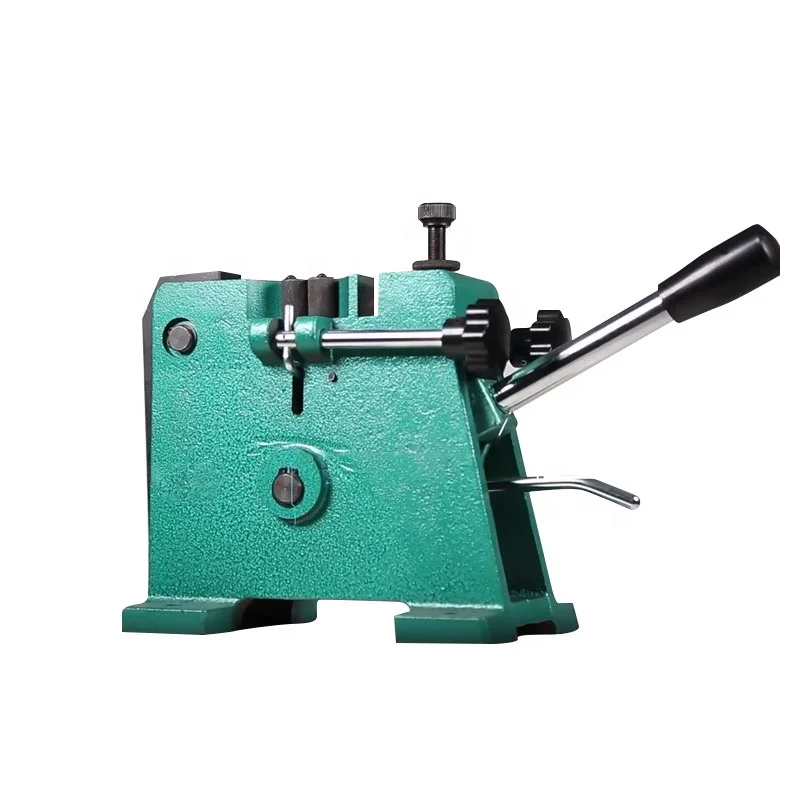

SZ 2T bench type cold pressure welding machine / bench type cold welding machine

Product Overview

Description

SZ-2T bench type cold pressure welding machine /wire welding equipment,  bench type cold welding machine

Introduction:

1.No need of heat or electricity and some form of flux to join the wires

2. It is possible to weld two wires with different material.

3.Provide desk/trolly to make welding more convenient ans stable.

4.All dies is fitable to other brands machine.

5.Precision single cavity or double cavity dies are compatible with our machine.

6.Application:

Widely used in the cold welding for the wire of  copper, aluminum,  and other non-ferrous metal wire/rod.

7.Welding range:

  Copper: 0.30mm-1.30mm

    Aluminium: 0.30mm-1.50mm

 8.Advantage: No power, no heat,no electricity,  light,  easy to operate, welding just one minute.

9.Net Weight: 10.8KG

10.Overall dimensions:250mm*65mm *145mm (L*W*H)



1. The main benefits of using cold welding
The process is quick, reliable and cost-effective. The weld cycle takes only seconds to complete and creates a permanent bond stronger than the parent material, without using heat, fillers or fluxes.

2.  What kind of materials can be welded using cold pressure?
Cold welding can be used to join most non-ferrous wire and strip with diameters of between 0.06mm and 10mm copper and 15mm aluminum.

3. Can different metals be welded using cold pressure?
Cold welding can be used to join dissimilar materials, such as aluminum to copper.

4. The tolerance of dies to wire
-1% + 3% wire to dies tolerance.

For example: 0.9mm dies can weld the wire diameter from: 0.909mm to 0.927mm wires

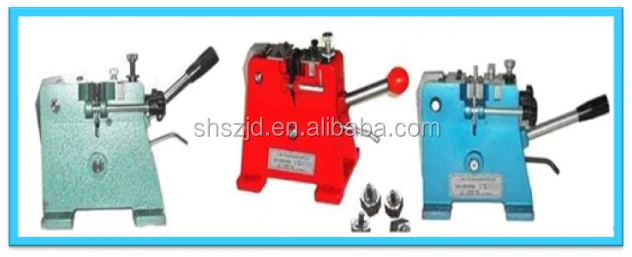

2. You can choose the suitable machine according to follow Wire  Welding Range

Model	Operating	Copper wire range	Aluimnum wire range
SZ-1A	hand clamp / manual	0.06mm-0.50mm	0.06mm-0.50mm
SZ-1B	hand clamp / manual	0.12mm-0.60mm	0.12mm-0.65mm
SZ-2S	hand clamp / manual	0.30mm-1.00mm	0.30mm-1.30mm
SZ-2T	benchtop / manual	0.30mm-1.30mm	0.30mm-1.50mm
SZ-3T	benchtop / manual	0.80mm-4.00mm	0.80mm-5.50mm
SZ-3TR	benchtop / manual	0.70mm-4.50mm	0.70mm-6.00mm
SZ-107	hydraulic / automatic	1.50mm-6.8mm	1.50mm-9.5mm
SZ-158	hydraulic / automatic	3.0mm-10.0mm	3.0mm-15.0mm

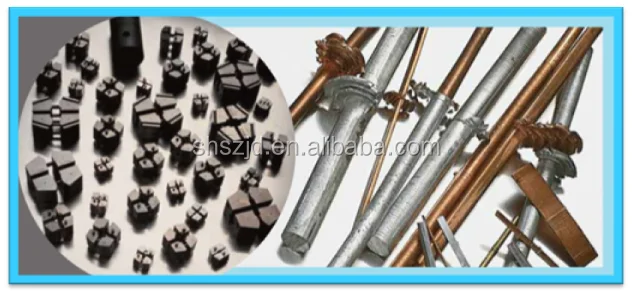

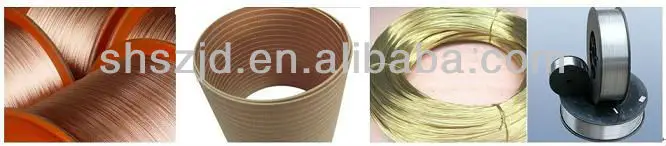

Generally, the machine can weld following wires:( other wires like enamelled copper wire can also be welded, but remove surface insultation part will be better)

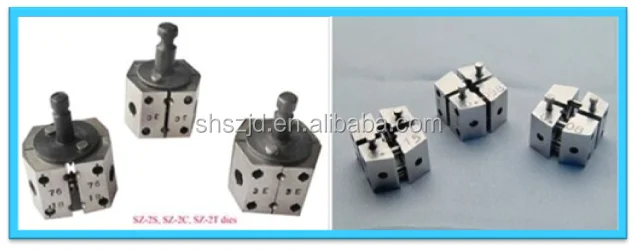

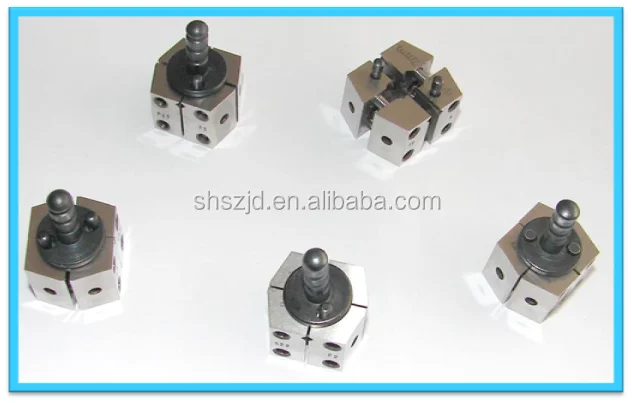

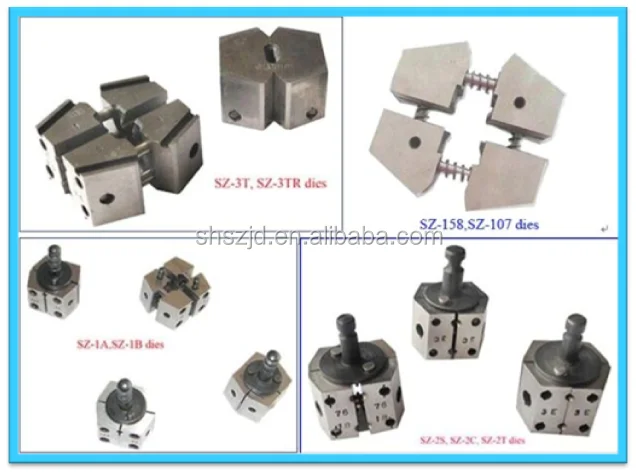

Other welding dies of us:

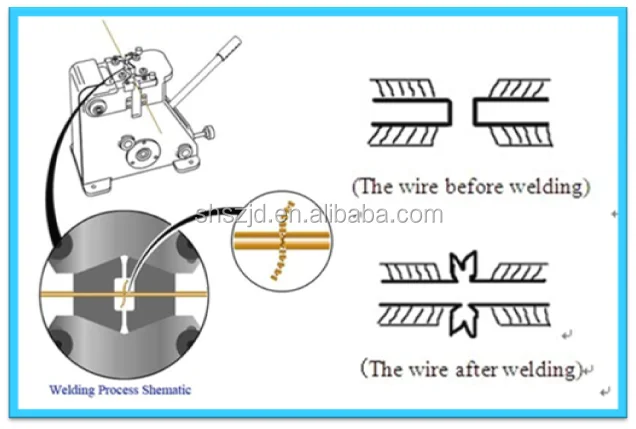

Welding process:



Welding process:

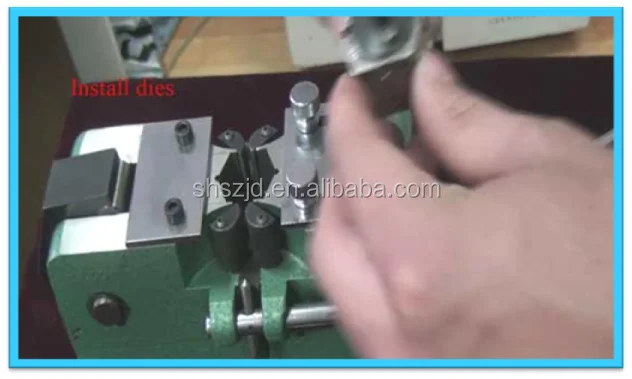

1. Install the dies:

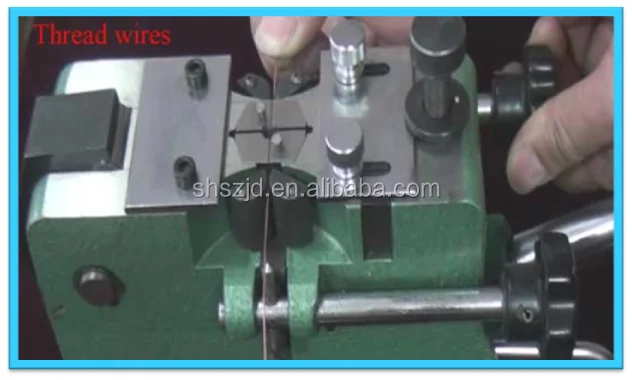

2. Thread the wires

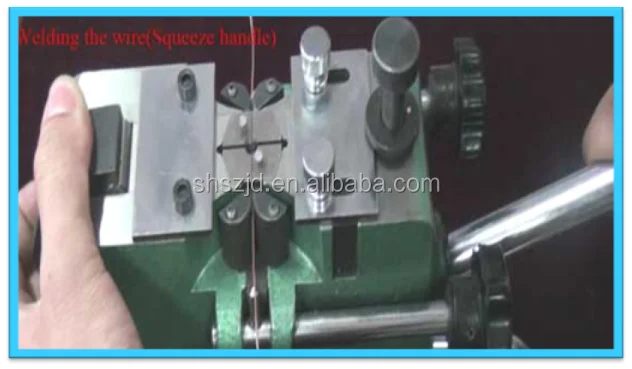

3. Welding the wires, by squeeze the handle:

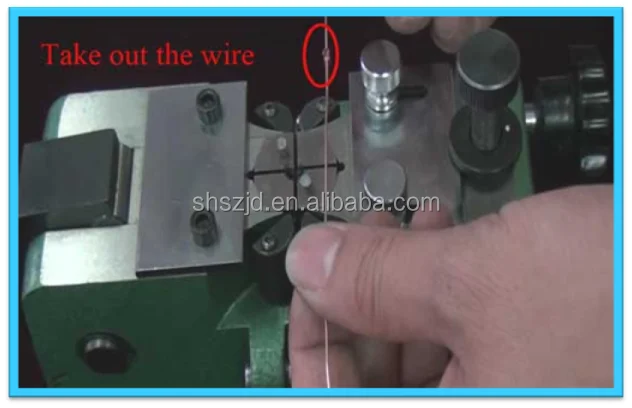

4. Take out the welded wires:

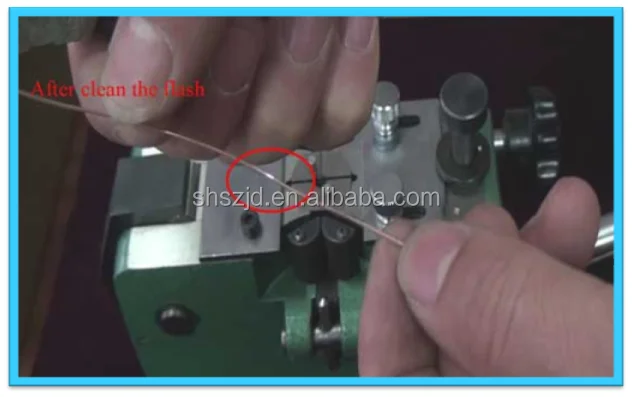

5. Clean the flash: ( the welded part is stronger than other original parts), can do drawing again.

Brief catalouge of us:



Operating video weblink of us:

SZ-2T operating video weblink: https://youtu.be/Lem64hFMg8o
