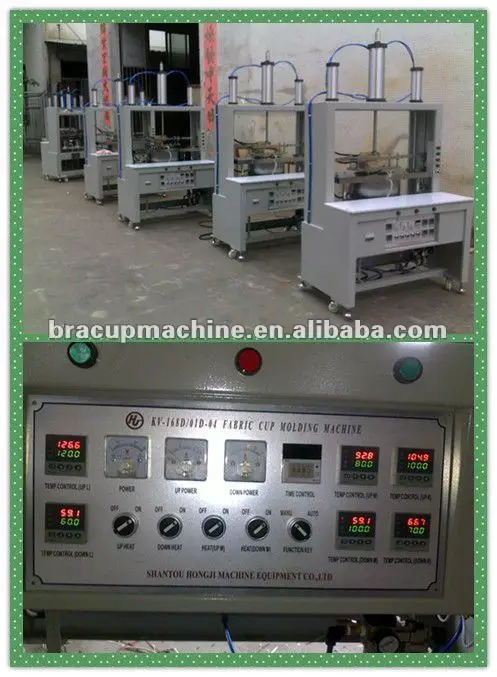

KV 168D/01D 04 One Piece Fabric Bra Cup Shaping Machine

Product Overview

Description







Usage of machine: It can load one complete set of bullet head aluminum mould. After molding, it can get a fabric cup with left and right cup together and be used for making fabric bra. Machine with measure scale, so it is easy to adjust the distance between left and right cup.



Features:

(1) It can be achieved multi-use of one machine. That is, it can produce the one piece fabric cup as well as ordinary bra cups by bullet head moulds.



(2) The temperature and the time can be adjusted freely, ensuring the products' quality.



(3) Operated conveniently, high productivity.



(4) Operated by buttons, ensuring the safety production.



(5) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating.



So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.



Technical parameter:

(1) Power supply/ Power: 220V/ 9KW

(2) Dimension of the mould table: 850mm×300mm

(3) Dimension of the machine: 1200mm×700mm×2100mm

(4) Applicable material: fabric material

(5) Applicable moulds: bullet head moulds

(6) Weight: 350KG





We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 3.5~4.0 million pairs of bra cups/ bra pads in each factory.



1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.





If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
