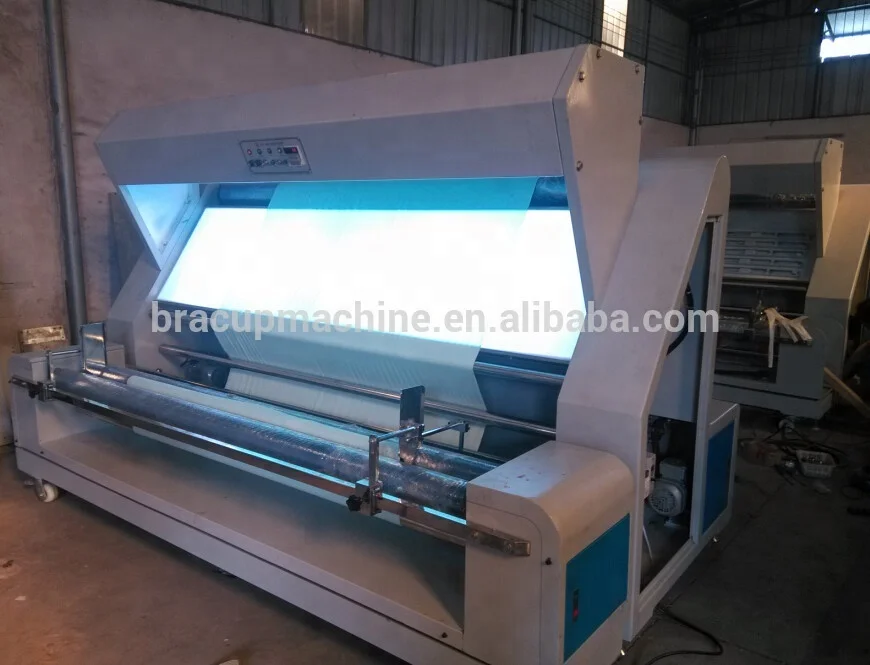

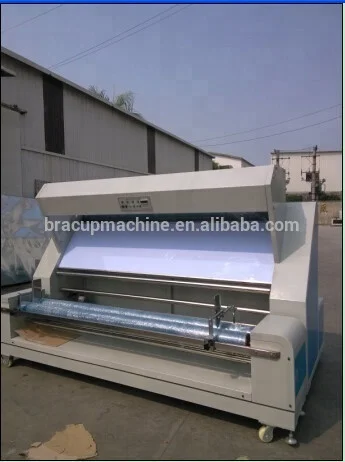

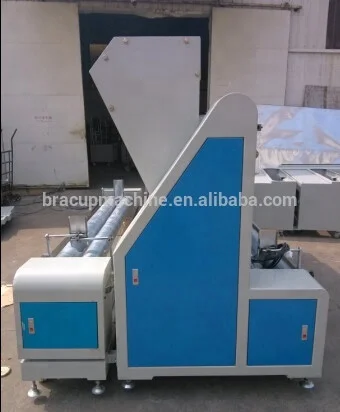

YB 210B Fabric Inspecting Machine

Product Overview

Description









Function: It is suitable for inspecting and relaxing different materials whose diameter is within 90'' (2280mm)Cloth winding and examining machine with automatic edge control is used for both winding knitted fabric, elastic fabric, rubber.

Cloth winding and examining machine with automatic edge control is used for both winding knitted fabric, elastic fabric, rubber, foam, synthetic leather, PVC, EVA, etc. and examining their length and quality.

Material is automatically edge controlled by pneumatic hydraulic controller, which makes material winding neater.



Features:

(1) Equipped with forward and backward rolling methods, which is convenient to inspect the cloth material.



(2) The speed of rolling can be set according to different needs.



(3) Several types of size and models are provided to be chosen and fit for different thickness of fabrics.



(4) Equipped with bright light pipe devices, the degree of brightness can be adjusted.



(5) With the cloth relaxing system, it can inspect and relax the cloth at the same time.



(6) It has tracking units with electric eyes in opposite sides, which can roll the cloth neatly. Besides, it has an automatic stopping device that is to say it can stop automatically when the cloth is rolled at the tail of it.



Technical parameter:

Power supply / power	220V/2.25KW
Rolling speed	35yards/min
Inspecting width	2280mm (90'')
Machine size	2980mm×1600mm×1900mm
Weight	400KG









We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.



1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
