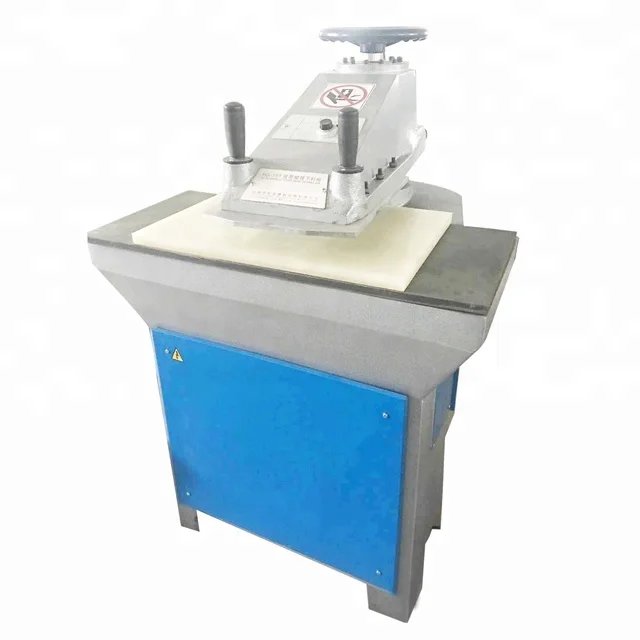

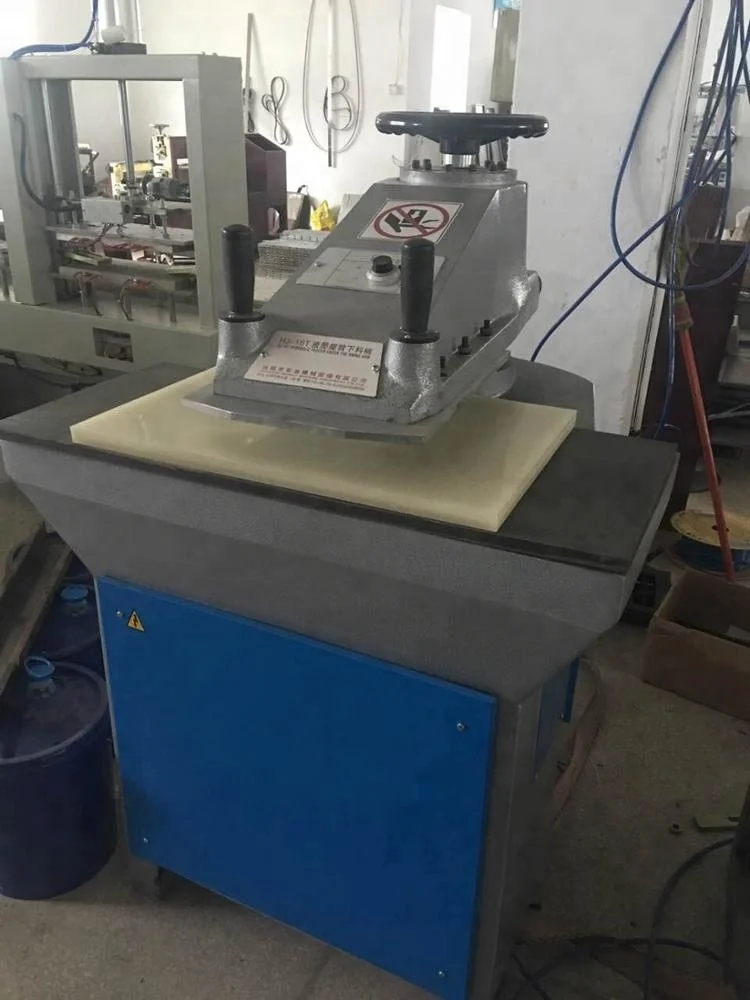

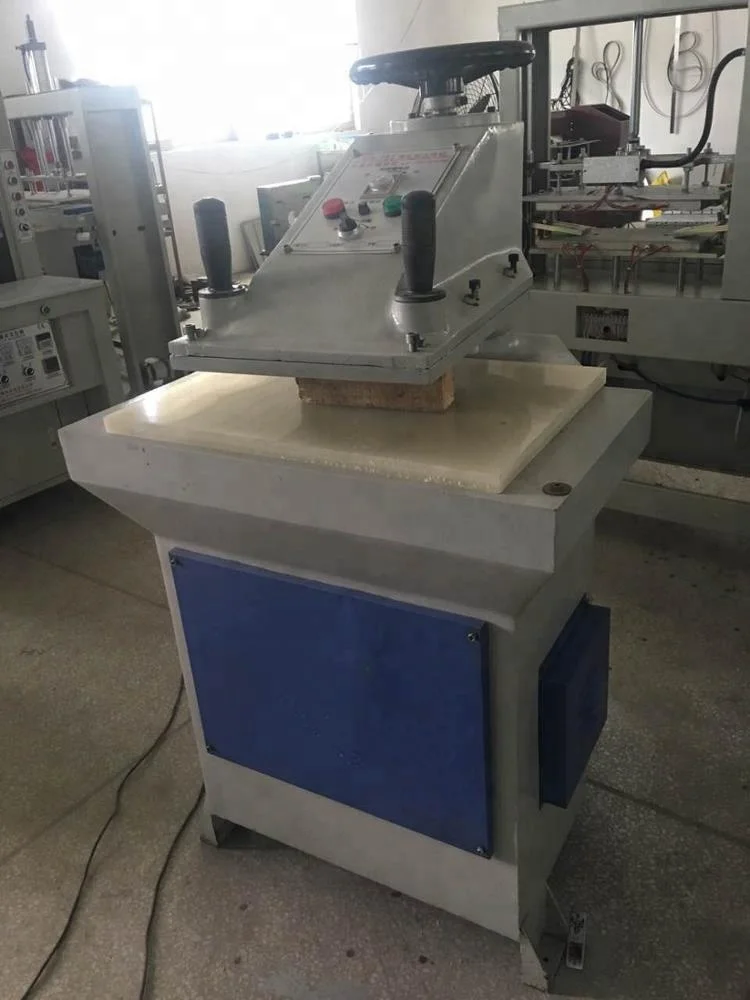

HJ 16T Hydraulic Swing Arm Cutting Machine for Trimming Bra Cups

Product Overview

Description





Function: It is mainly used to cut and trim the surplus edge of molded bra cups, foam pads, fabric cups and etc. It is also used as the cutting and trimming usage in the rubber, plastic and paper products industry.



Merits:

1. Instead of traditional manual method to cut and trim the edge of molded bra cups, it is easy to learn and operate, and it also save much time and labor resources.

2. Strong cutting function, rapid trimming, excellent trimming effect, high productivity.

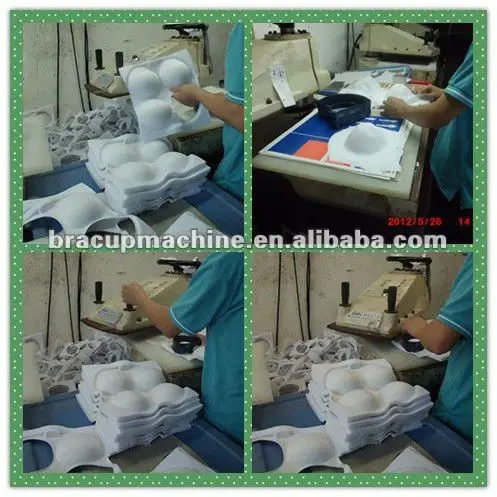

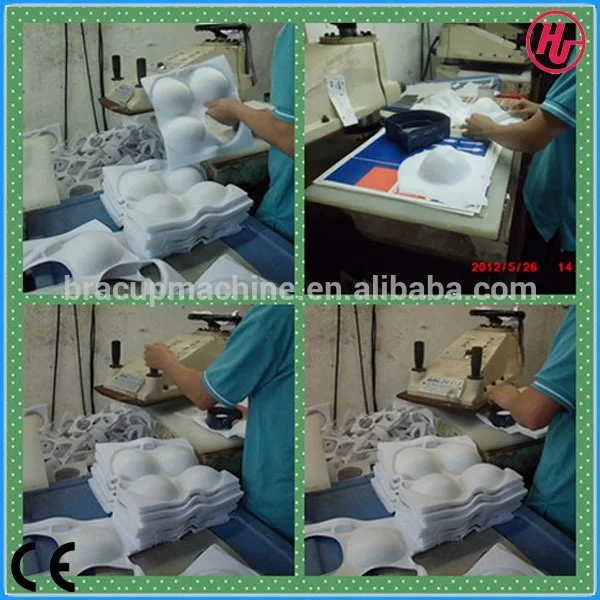

Usage of machine: By using upper and lower knife to trim the cup edge, it is easy to operate and reduce operator's fatigue during operation the machine is with inverter, so the speed can be adjusted to match operator's working speed.



Technical Parameters:

Capacity	600 ~ 800 pairs per 8 hours
worktable size	900mm*450mm
pressing plate width	370mm*280mm
Max. blanking force	200kn
blanking speed	0.1m/s
stroke adjust range	5-50mm
distance bwt pressing plate and worktable	65-160mm
electormotor	Y-90S-4
power	2.2Kw
revolving speed	1400r/min
machine size	1700mm*1000mm*700mm
weight	700KG



Primary members of this machine: main body, swaying pillar omponents, hydrauliccontrol device, electrical parts and etc.

It adopts hydraulic drive and electro-hydraulic chain control.

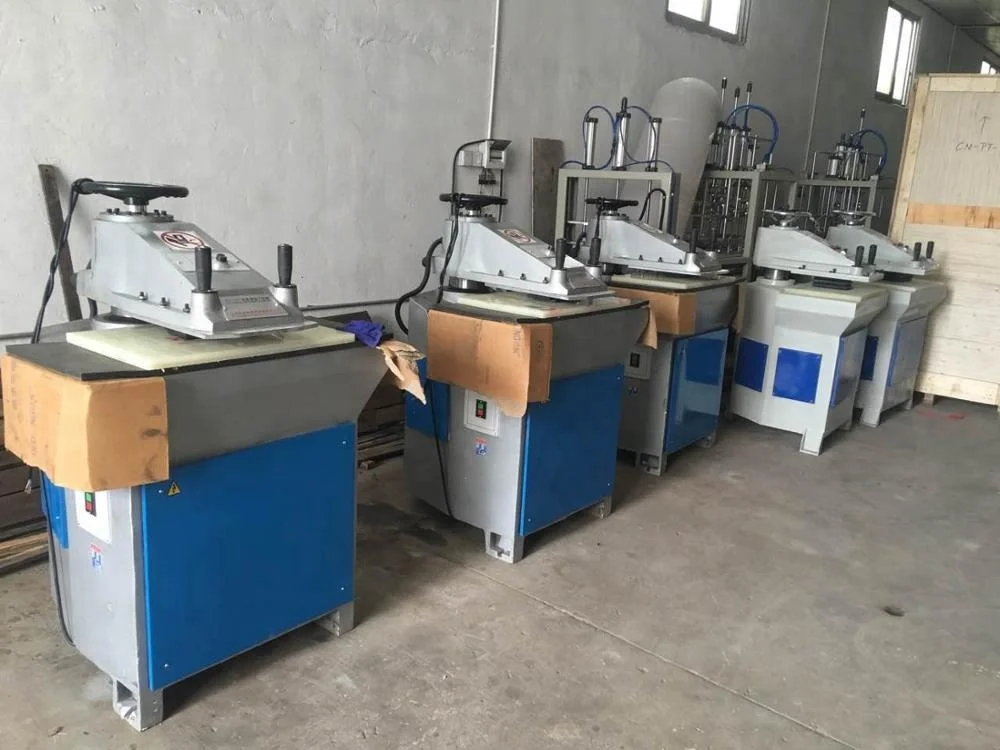

Welcome to visit our company and our production workshop, we sincerely welcome your coming or calling to negotiate with us so as to establish long-term and stable business relationship in the near future!





We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.





1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.





If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
