Digital metal durometer sales SADT HARTIP1500

Share on (448349877):


Price:

Quantity:


Product Overview

Description

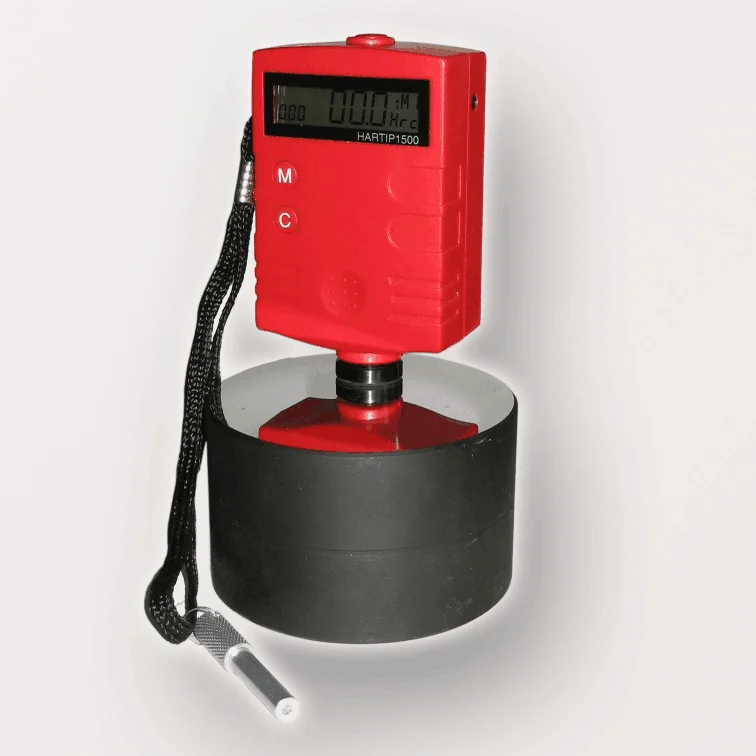

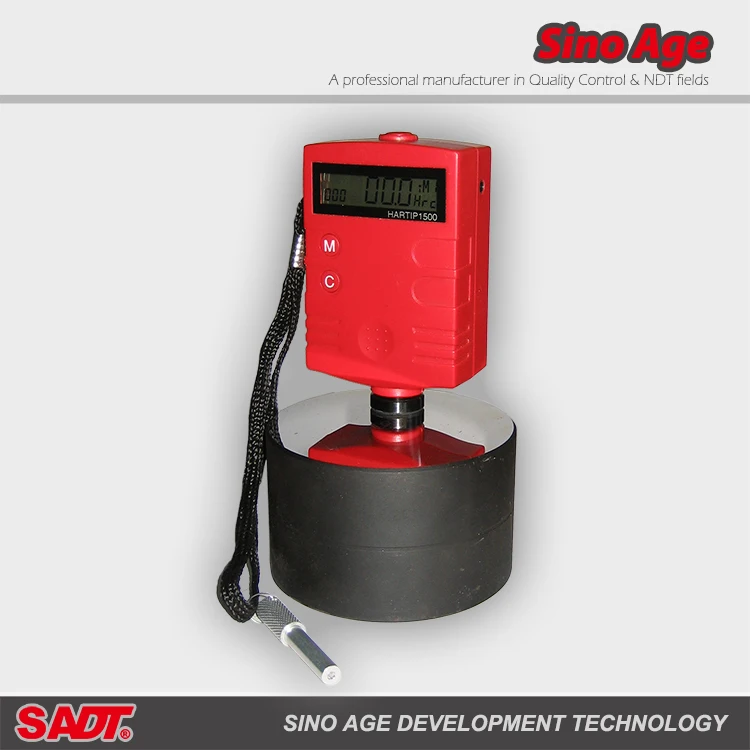

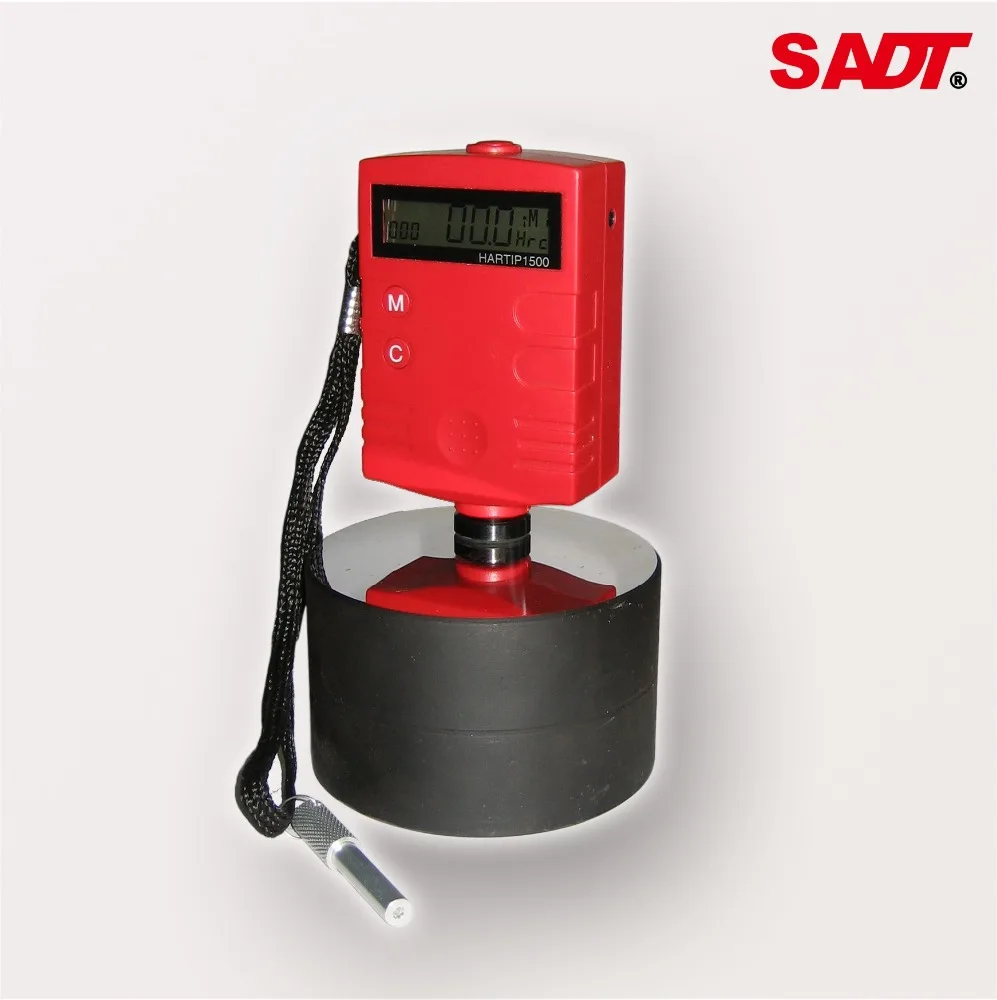

HARTIP1500 of Portable durometer is an integrated handheld metal hardness tester that combines probe and processor into one unit. The size is much shorter than normal probe, which lets HARTIP 1500 can meet not only normal measurements, but can take measurements at narrowed space as well. HARTIP 1500 is suitable for testing hardness of almost all Ferrous and Nonferrous materials. With our new technology, its accuracy is improved to a higher level than normal type. HARTIP 1500 is one of the most economic hardness testers.





KEY FEATURES


Rugged and modular design


High accuracy


Palm size for narrow space


Built-in probe


For all metallic materials


Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL


 Test in any directions


 Comply to standard ASTM A956, DIN 50156, GB/T 17394-1998





Specifications














































































Model



SADT HARTIP 1500



Principle



Leeb Hardness Measurement



Accuracy



±0.4% @ HL=800 / ±3HL



Display



LCD With Backlight



Hardness Scale



HL / HRC / HRB / HB / HV / HS



Measuring Range



HL100-960 / HRC0.9-78.7 / HRB1.2-140 / HB15-1878 / HV11-1698 / HS2-128



Probe



D (Internal)

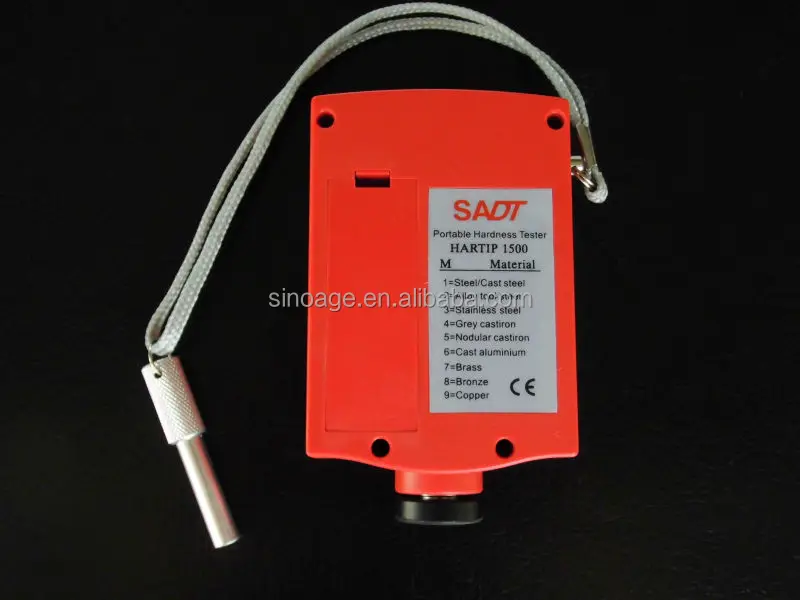

Materials



9 Common Metal Materials



Memory



99 Data



Statistics Function



Average / Max. / Min.



Re-Calibration



Allowed By User



Indicator



Low Battery



Auto Power Off



Auto



Power Supply



9V Alkaline Battery X 1



Working Environment



-10~+45ºC



Dimension (Mm)



100x60x33



Net Weight (G)



160



Standards



Conforming To ASTM A956, DIN 50156, GB/T 17394-1998

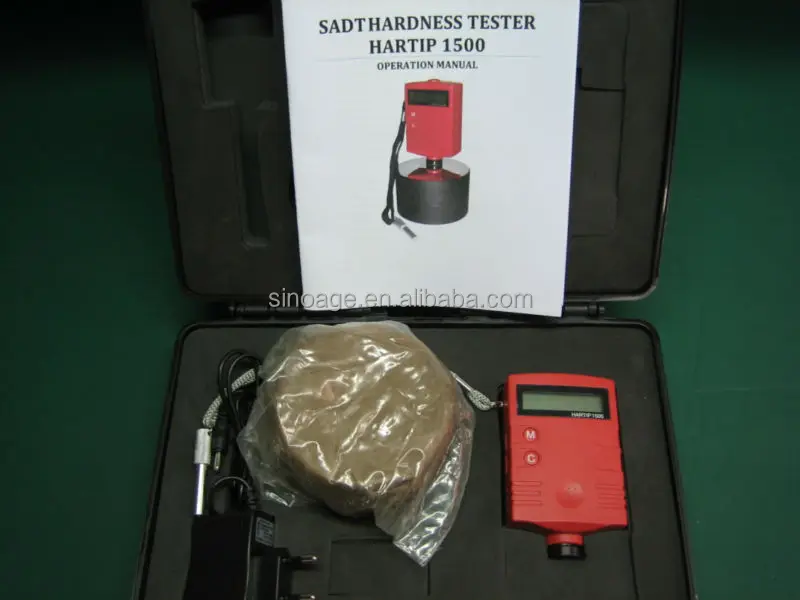

Standard Package HARTIP 1500


HARTIP 1500 main unit 1


Built in probe D 1


Test block D 1


Cleaning brush 1


Charger 1


Operation manual 1


Test Certificate 1


Carrying case 1
