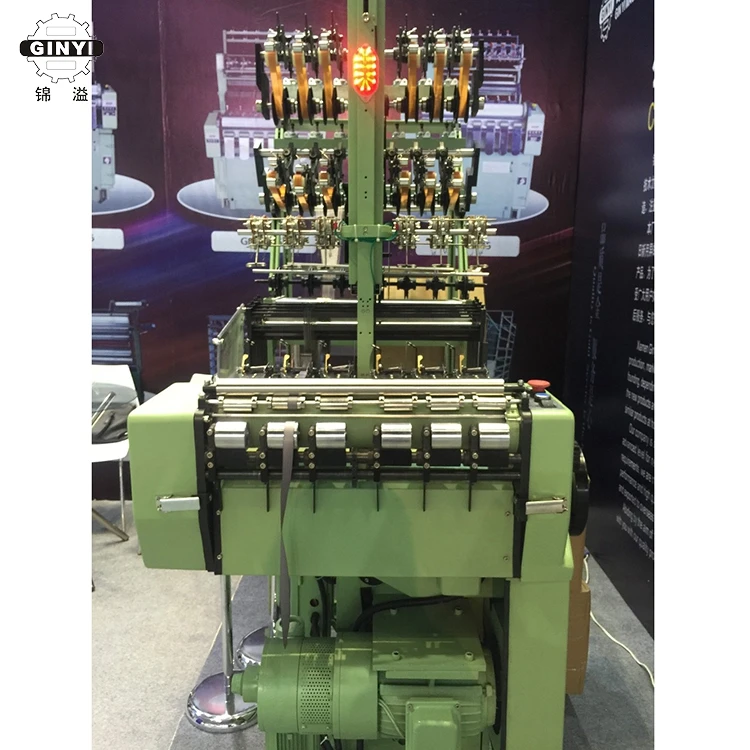

Shuttleless Narrow Industrial Weave Machine
- Category: Belt Making Machines >>>
- Supplier: Xiamen Ginyi Machine Co. Ltd. [Fujian China]Xiamen
Share on (448644507):
Product Overview
Description
Shuttleless Narrow Industrial Weave Machine
Product Description
Specifications
| Model | GYMF-645 |
| BELT NUMBERS | 6 |
| REED WIDTH(mm) | 45 |
| HEALD FRAME | 12-24 |
| PICK REPEAT | 8-48 |
| WEFT DENSITY | 3.5-36.7 |
| H.P. MOTOR | 1.5 |
| MAX.SPEED R.P.M | 800-1350 |
| PACKAGING | 1Set/Wooden Case |
| GUARANTEE | 1 Years |
Other Size
| Model | GYMF-8/30 | GYMF-8/27 | GYMF-6/45 | GYMF-6/42 | GYMF-4/65 | GYMF-4/60 |
| BELT NUMBERS | 8 | 8 | 6 | 6 | 4 | 4 |
| REED WIDTH(mm) | 30 | 27 | 45 | 42 | 65 | 60 |
| HEALD FRAME | 12-24 | 12-24 | 12-24 | 12-24 | 12-24 | 12-24 |
| PICK REPEAT | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 | 8-48 |
| WEFT DENSITY | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 |
| H.P. MOTOR | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| MAX.SPEED R.P.M | 800-1350 | 800-1350 | 800-1350 | 800-1350 | 800-1350 | 800-1350 |
| PACKAGING | 1set/wooden case | 1set/wooden case | 1set/wooden case | 1set/wooden case | 1set/wooden case | 1set/wooden case |
| GUARANTEE | 1 years | 1 years | 1 years | 1 years | 1 years | 1 years |
High speed flat elastic tape needle loomis the improve from the normal needle loom, especially for light ribbon and light elastic.Can do better quality of these products.
