spal cooling fans and blower refrigerator fan motor 10inch 12inch 16inch electric cooling fans Kinglong bus parts China factory

Product Overview

Description

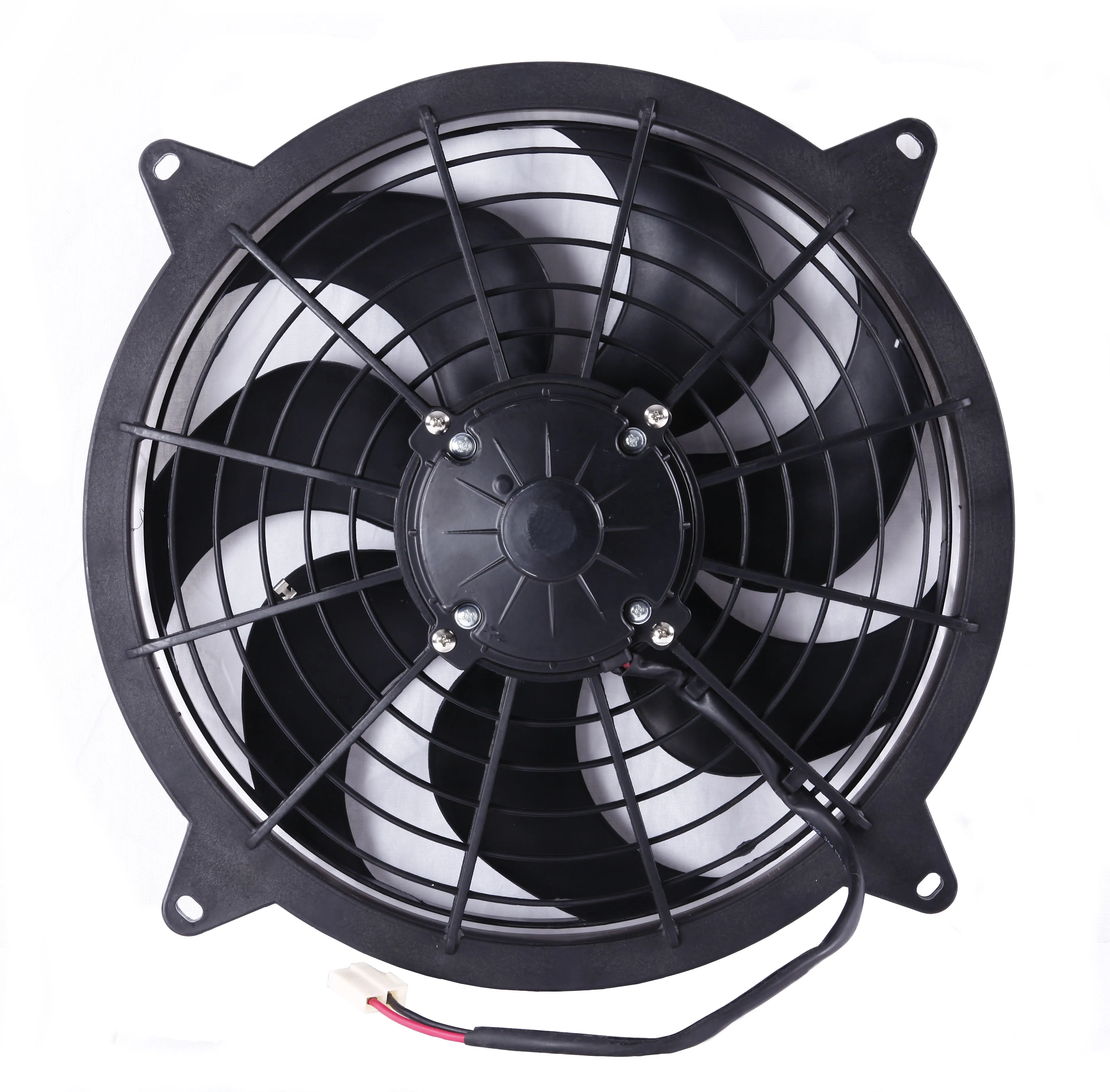

Our condenser fan has following high performance;

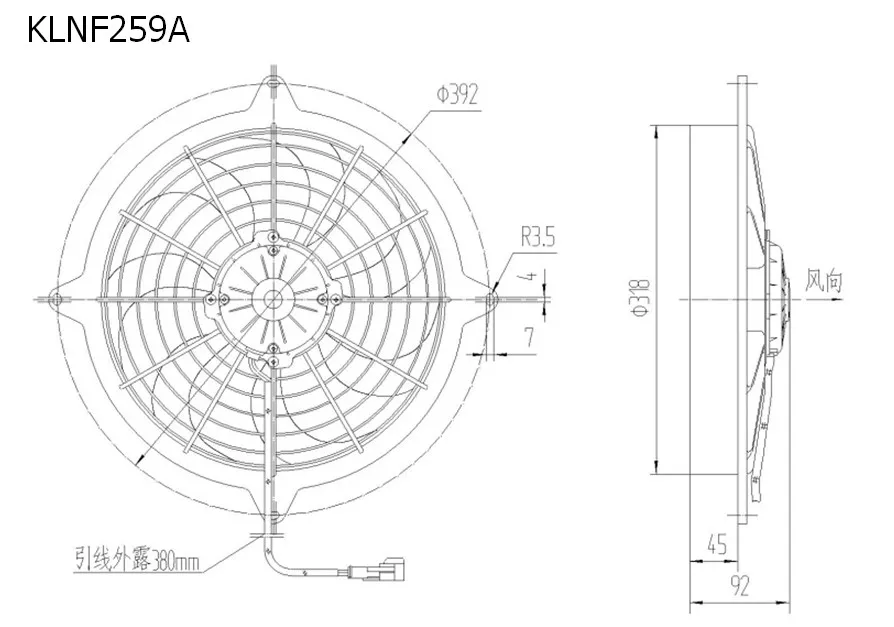

Model KLNF259A (KLNF159A,12V);
    a) Voltage: 24V/12V
    b) Current: 8A/16A
    c) Static pressure: 100Pa
    d) Air flow: 2200m/h



Bus cooling axial fan used for YUTONG   KINGLONG  and school buses

Part NO.	KLNF259A
Name	Condenser Fan
Place of Origin	Guangdong, China
Voltage	DC24V
Current	≤8A
Speed	≥3200±150rpm
Static pressure	100pa
Air Flow	2200m3/h
Direction of air	Pull/suction
Warranty	13 months
Life Time	≥6000 hrs
Packing	4 pcs/carton





.Condenser fan KLNF-259A is good at;

• Big air flow


• Less noise


• Longer working life: Min 6000 hours working life.

Apliaction: Widely used for different condenser assembly, like bus air conditioner system, and passenger car cooling system.



KLNF259A-Most popular condenser fan in the market.

.
