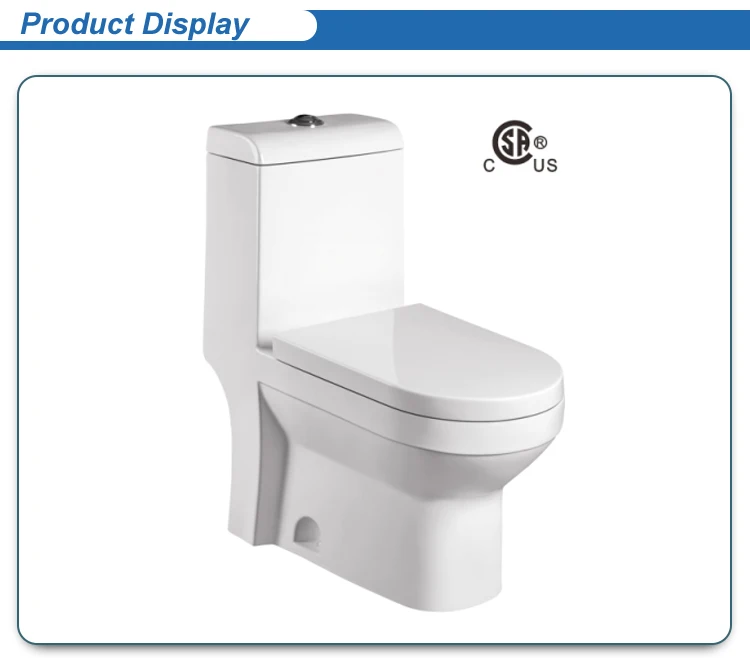

CSA Certificated Elongated Dual Flush One piece Toilet 3097N

Product Overview

Description







Dual flush one-piece elongated rim water closet:



- Anti-siphon fill valve Model A1260 (IAPMO Certified under File 4139) with red refill restrictor setting at “2” in the refill tube. The manufacturer is Xiamen R&t Plumbing Technology Co., Ltd.

- Dual flush valve Model A2420 (IAPMO Certified under File 4569) with full flush setting at “1” and reduced flush setting at “5”. The manufacturer is Xiamen R&t Plumbing Technology Co., Ltd.

- The distance between the water line and the lowest point of tank overflow tube is 22mm.
- Water line in the tank is at 165mm from bottom of tank.



- A leek-free and stylish addition to your bathroom. The clean one piece design eliminates the tank to bowl connections and makes the toilet easier to keep clean.

- Rough-in at 305mm.



Applicable requirements: ASME A112.19.14-2013-Six-Liter Water Closets Equipped With a Dual Flushing Device



• Vitreous China
• One-piece toilet integrate the tank and bowl into a seamless, easy-to-clean design
• Elongated siphonage action bowl
• CSA listed for USA and Canadian Code compliances
• 1.6gpf with Dual flush
• 2" water flush valve, CUPC certificated
• 2" fully glazed trap way
• S-trap, 12" rough-in
• Soft close seat cover
• 100% factory flush tested
•  Includes color matched bolts blocks
• Chrome-plated top button
• Top flush or side level available

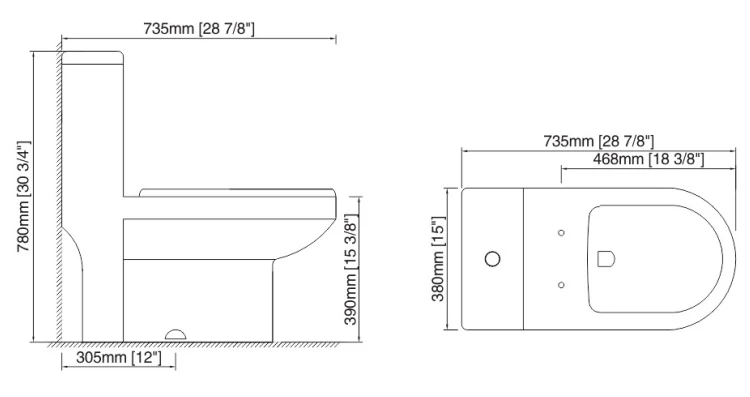

Length x Width x Height
(735mm x 380mm x 780mm, 28-7/8" x 15" x 30-3/4")





 Compliance Certifications-Meets or Exceeds the following Specifications:

• ASME A112.19.2-2013/CSA B45.1-13 - Ceramic plumbing fixtures
• ASME A112.19.14-2013 - Six-Liter Water Closets Equipped With a Dual Flushing Device
