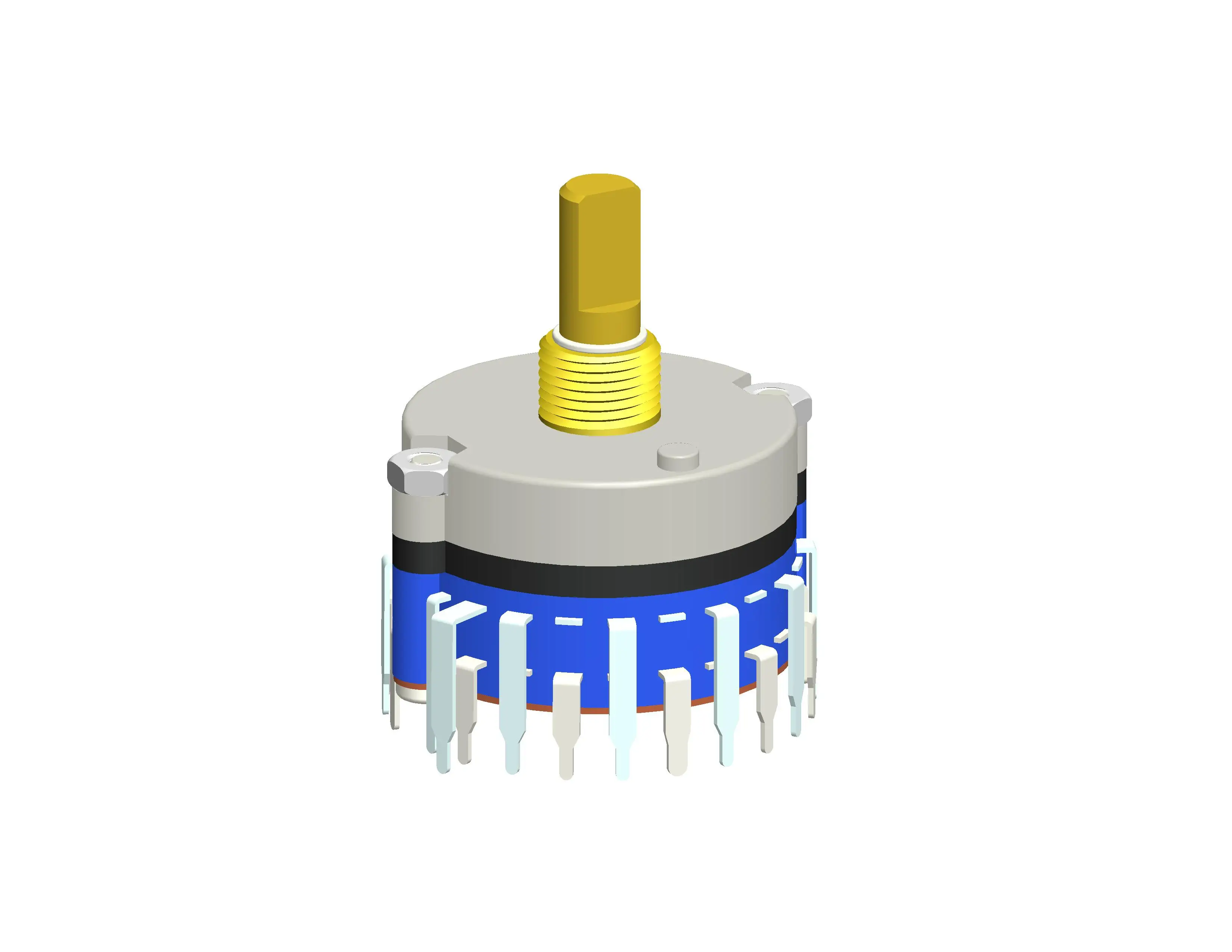

rotary route switch RE32 02 SWB0X HA1 1 2 12
rotary route switch RE32-02-SWB0X-HA1-1-2-12
rotary route switch RE32-02-SWB0X-HA1-1-2-12

rotary route switch RE32 02 SWB0X HA1 1 2 12

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Rotary Switch Model
RE32 series
Step angle
30°±3°
Rotational life
10,000 cycles Min
Working temperature
-10℃～70℃
Number of positions
2~12



RE32 Rotary Switch Main Specifications



Rated power
DC 30V 0.3A
Contact resistance
50mΩ Max
Number of positions
2~12
Operating temperature
-10℃～70℃
Rotational life
10,000 cycles Min
Applications
Home appliances, amplifiers or other electronic products;
Product features
2~12 positions available with clear sense of clicks;
Available in various shaft options;
Functions
The main functions are function switching, adjusting volume, and adjusting brightness.



RE32 Rotary Switch Specifications



One、MECHANICAL CHARACTERISTIC

1. Rotational Torque: 200~1000gf.cm
2. Step Angle: 30°±3°

Two、ELECTRICAL CHARACTERISTIC
1. Contact Resistance: 50mΩ Max
2. Power Rating: DC30V 0.3A
3. Number of Positions: 2~12
4. Insulation Resistance: 100MΩ 1 Minute at DC 500V
5. Dielectric Voltage: 1 Minute at DC 500V

Three、ENDURANCE CHARACTERISTIC

1. Rotational Life: 10,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
